0A-5 General Information:

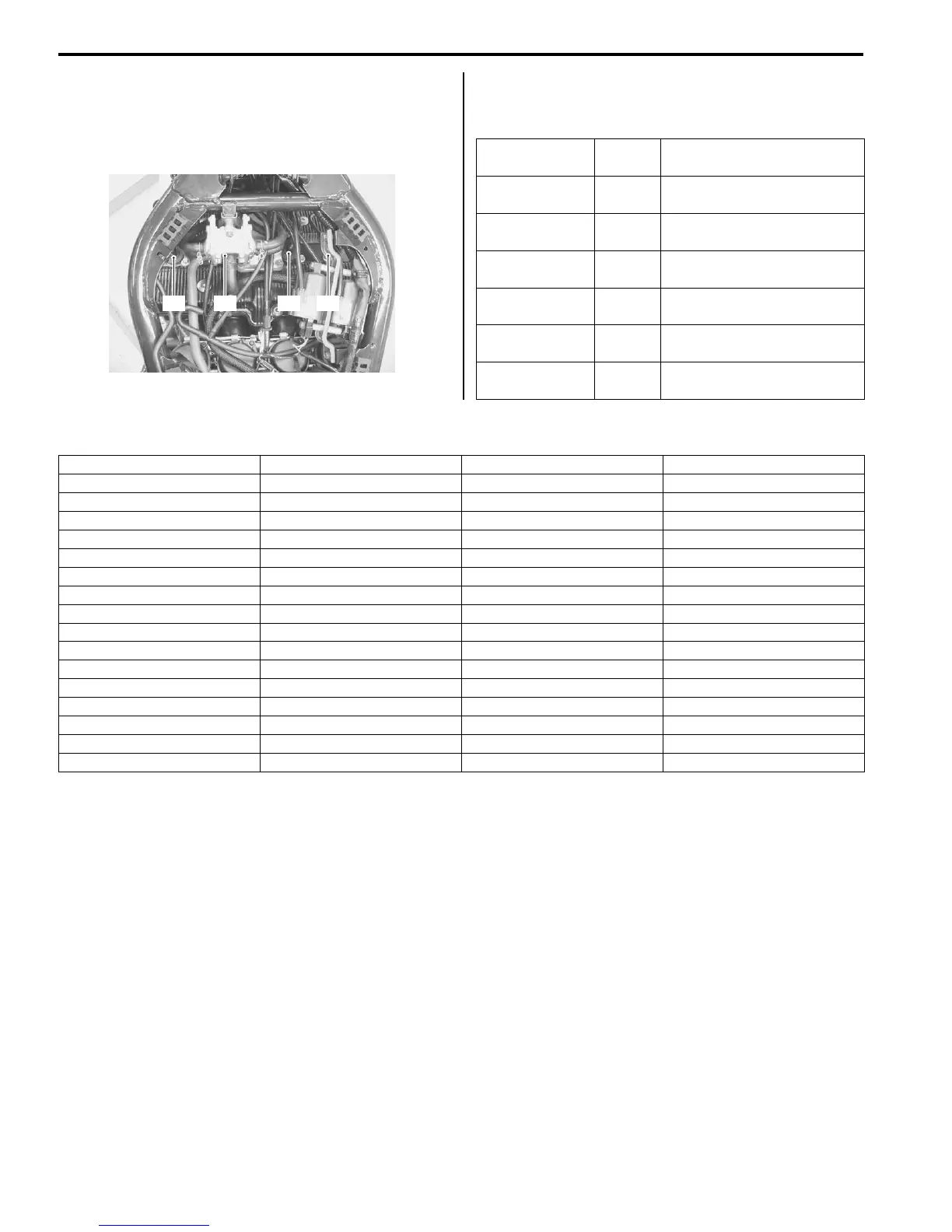

Cylinder Identification
B649G10101008
The four cylinders of this engine are identified as No.1,
2, 3 and No.4 cylinder, as counted from left to right (as
viewed by the rider on the seat).
Country and Area Codes
B649G10101009
The following codes stand for the applicable country(-
ies) and area(-s).
Wire Color Symbols
B649G10101010
#1 #3
#4
#2
I649G1010010-01
Code
Country
or Area
Effective Frame No.
GSF1200 K6
(E-02)
U.K. JS1CB112200100001 –
GSF1200 K6
(E-19)
E.U. JS1CB112100100001 –
GSF1200S K6
(E-02)
U.K. JS1CB111200100001 –
GSF1200S K6
(E-19)
E.U. JS1CB111100100001 –
GSF1200S K6
(E-24)
Australia JS1CB121300100001 –
GSF1200S K6
(E-28)
Canada JS1GV79A 62100001 –
Symbol Wire Color Symbol Wire Color
B Black Bl/B Blue with Black tracer
Bl Blue Br/B Brown with Black tracer
Br Brown G/B Green with Black tracer
Dbr Dark brown G/Bl Green with Blue tracer
Dg Dark green G/Y Green with Yellow tracer
G Green O/G Orange with Green tracer
Lg Light green O/R Orange with Red tracer
W White O/W Orange with White tracer
Y Yellow O/Y Orange with Yellow tracer
B/Bl Black with Blue tracer P/B Pink with Black tracer
B/Br Black with Brown tracer R/B Red with Black tracer
B/G Black with Green tracer R/W Red with White tracer
B/O Black with Orange tracer W/B White with Black tracer
B/R Black with Red tracer Y/B Yellow with Black tracer
B/W Black with White tracer Y/W Yellow with White tracer
B/Y Black with Yellow tracer

Suzuki 2005 GSF1200 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	790 mm (31.1 in)
Ground Clearance	135 mm (5.3 in)
Engine Type	4-stroke, 4-cylinder, DOHC
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Fuel Tank Capacity	20.0 L (5.3 US gal)
Overall Length	2, 140 mm (84.3 in)
Overall Width	790 mm (31.1 inches)
