6B-3 Steering / Handlebar:
• Apply SUZUKI SUPER GREASE to the throttle cables
and cable pulley.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Insert the projection “C” of the right handlebar switch
box into the hole of the handlebars.
• Install the front brake master cylinder. Refer to “Front
Brake Master Cylinder Assembly Removal and
Installation: in Section 4A”.
• Adjust the throttle cable play. Refer to “Throttle Cable
Play Inspection and Adjustment: in Section 0B”.
• Apply a handle grip bond “D” onto the left handlebar
before installing the handlebar grip.
: Handle grip bond (Handle grip bond
(commercial available))
• Apply SUZUKI SUPER GREASE to the starter cable
and cable pulley.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Insert the projection “D” of the left handlebar switch
box into the hole of the handlebars.
• Install the clutch master cylinder. Refer to “Clutch
Master Cylinder Assembly Removal and Installation:
in Section 5C”.
• After installing the steering, the following adjustments
are required before driving.
– Cable routing (Refer to “Throttle Cable / Starter
Cable Routing Diagram: in Section 1G”.)
– Throttle cable play (Refer to “Throttle Cable Play
Inspection and Adjustment: in Section 0B”.)
Handlebars Inspection
B649G16206009
Refer to “Handlebars Removal and Installation: ”.
Inspect the handlebars for distortion and damage.
If any defect is found, replace the handlebars with a new
one.

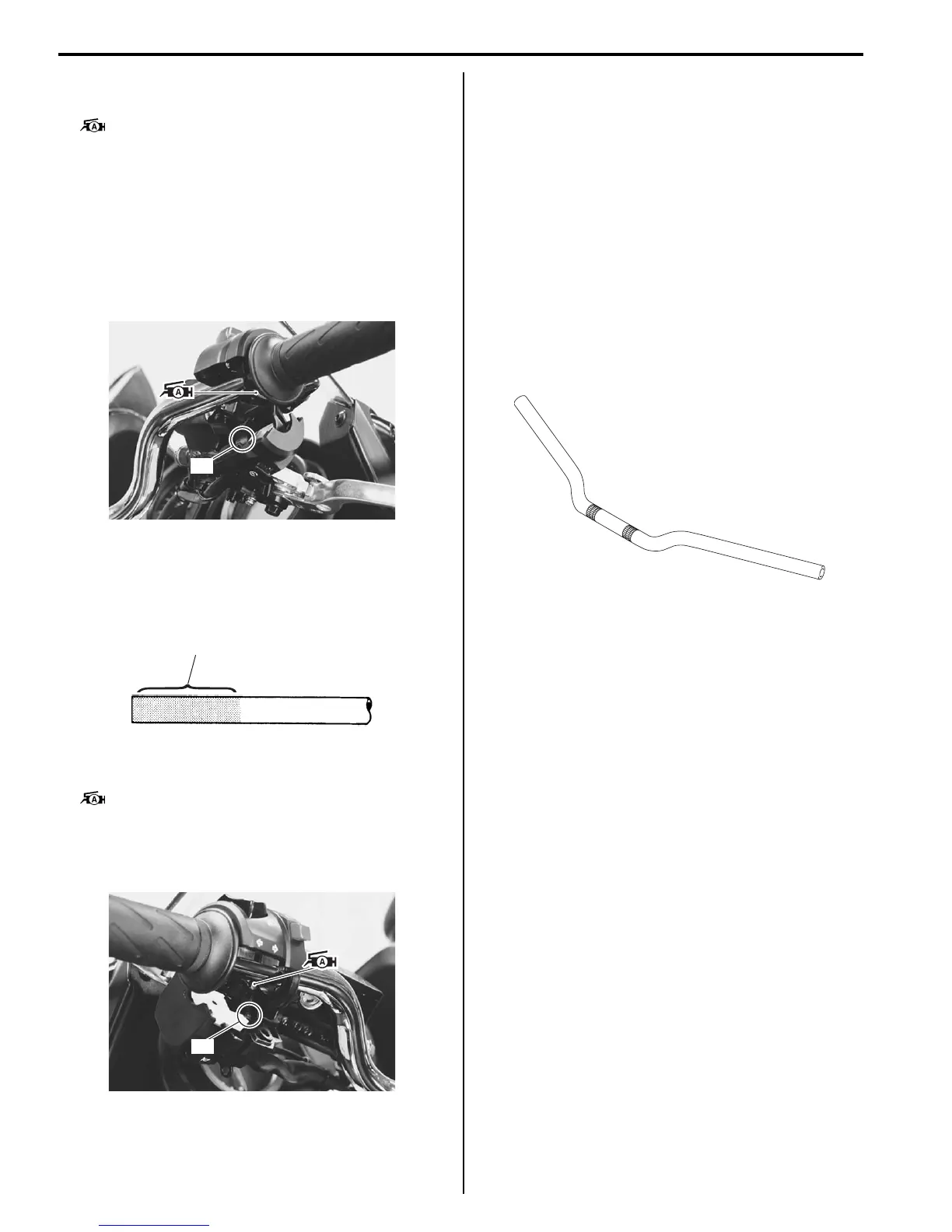

“C”
I649G1620007-01
“D”
I649G1620008-02
“D”
I649G1620009-01
I649G1620010-02
