1G-18 Fuel System:

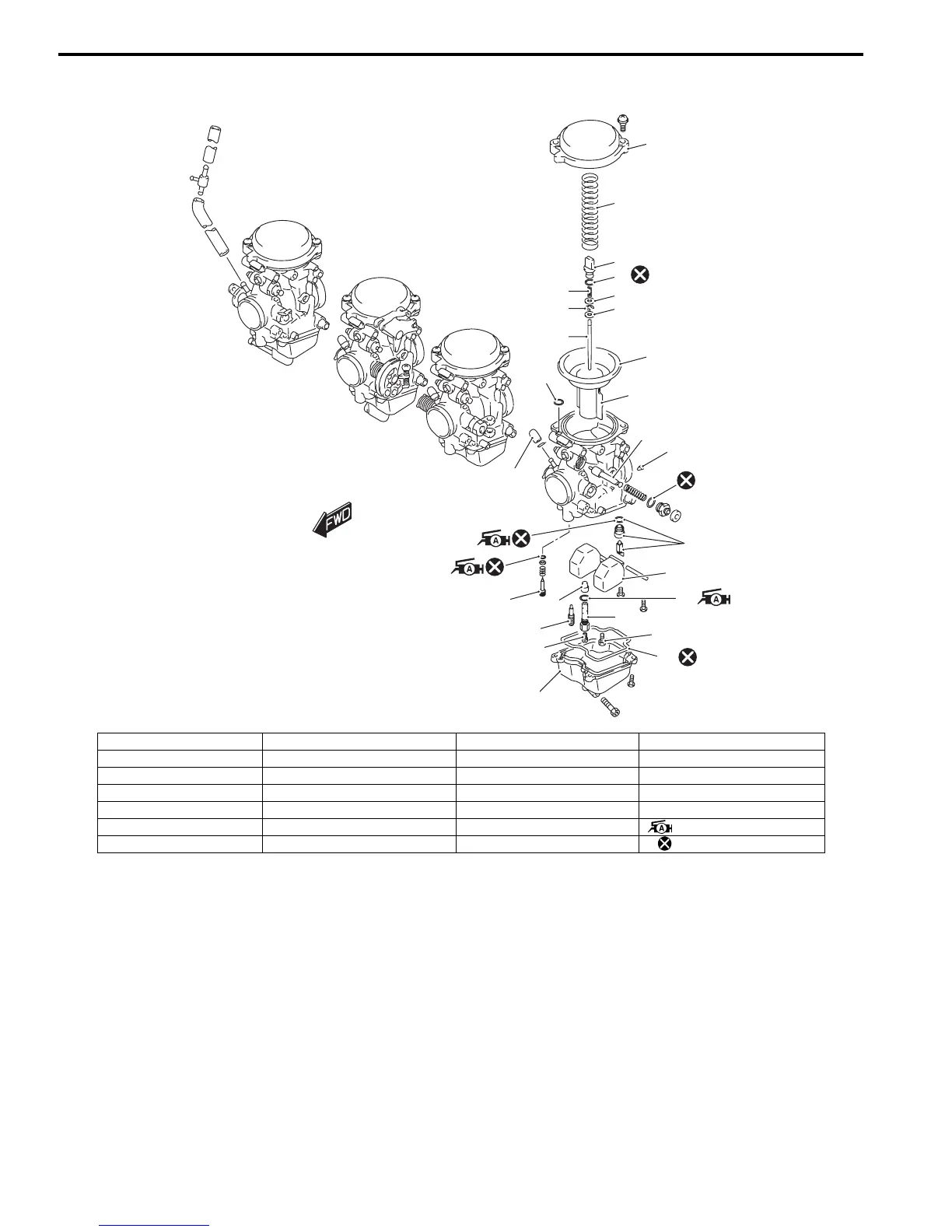

Carburetor Parts
1
2
3
6
8
4,
5
7
9
10
12
11
14
13
15
26
25
16
23,
19
22
18,
24
20
21
17
I649G1170077-01
1. Top cap 8. Spacer 15. Needle valve assembly 22. Starter jet
2. Spring 9. Jet needle 16. Float 23. Gasket (O-ring)
3. Jet needle stopper 10. Diaphragm 17. Needle jet 24. Float chamber
4. O-ring 11. O-ring 18. O-ring 25. Pilot screw
5. Spring 12. Piston valve 19. Main jet holder 26. Vacuum inlet cap
6. Washer 13. Pilot air jet 20. Main jet : Apply grease.
7. E-ring 14. Starter (Enricher) plunger 21. Pilot jet : Do not reuse.

Suzuki 2005 GSF1200 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	790 mm (31.1 in)
Ground Clearance	135 mm (5.3 in)
Engine Type	4-stroke, 4-cylinder, DOHC
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Fuel Tank Capacity	20.0 L (5.3 US gal)
Overall Length	2, 140 mm (84.3 in)
Overall Width	790 mm (31.1 inches)
