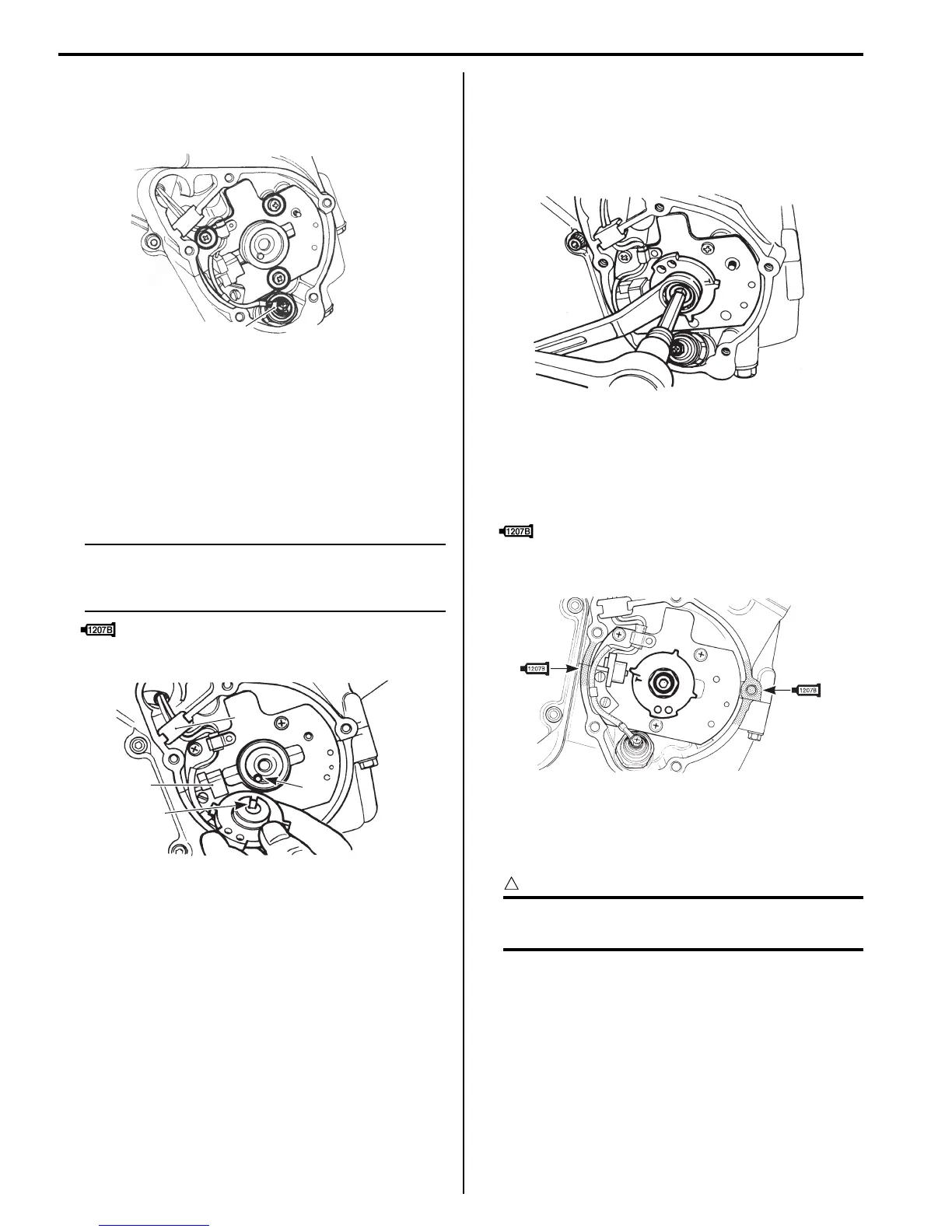

1H-9 Ignition System:
5) Disconnect the oil pressure switch lead wire (2).
6) Remove the CKP sensor. Refer to “Wiring Harness
Routing Diagram: in Section 9A”.
Installation
Install the CKP sensor in the reverse order of removal.
Pay attention to the following points:
• Install the CKP sensor (1).
• Be sue to fit the slot “A” on the back surface of the
CKP sensor rotor over the locating pin “B” on the end
of crankshaft.
NOTE
The SUZUKI BOND should be applied to the
groove of the CKP sensor lead wire grommet
(2).
: Sealant 99000–31140 (SUZUKI Bond
1207B or equivalent)
• Hold the nut and tighten the CKP sensor rotor bolt to
the specified torque.
Tightening torque
CKP sensor rotor bolt: 25 N·m (2.5 kgf-m, 18.0 lb-
ft)
• Connect the oil pressure switch lead wire.
• Route the CKP sensor lead wire. Refer to “Wiring
Harness Routing Diagram: in Section 9A”.
• Apply a bond lightly to the CKP sensor cover gasket
mating surface as shown.
: Sealant 99000–31140 (SUZUKI Bond
1207B or equivalent)
• Install a new gasket and the CKP sensor cover (3).
• Install a new gasket washer onto the CKP sensor
cover bolt (4) as shown.
CAUTION
!
Replace the cover gasket and gasket washer
to prevent oil leakage.
2
I649G1180018-01
2
“A”
“B”
1
I649G1180019-02
I649G1180020-01
I649G1140083-03

Suzuki 2005 GSF1200 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	790 mm (31.1 in)
Ground Clearance	135 mm (5.3 in)
Engine Type	4-stroke, 4-cylinder, DOHC
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Fuel Tank Capacity	20.0 L (5.3 US gal)
Overall Length	2, 140 mm (84.3 in)
Overall Width	790 mm (31.1 inches)
