1I-2 Starting System:

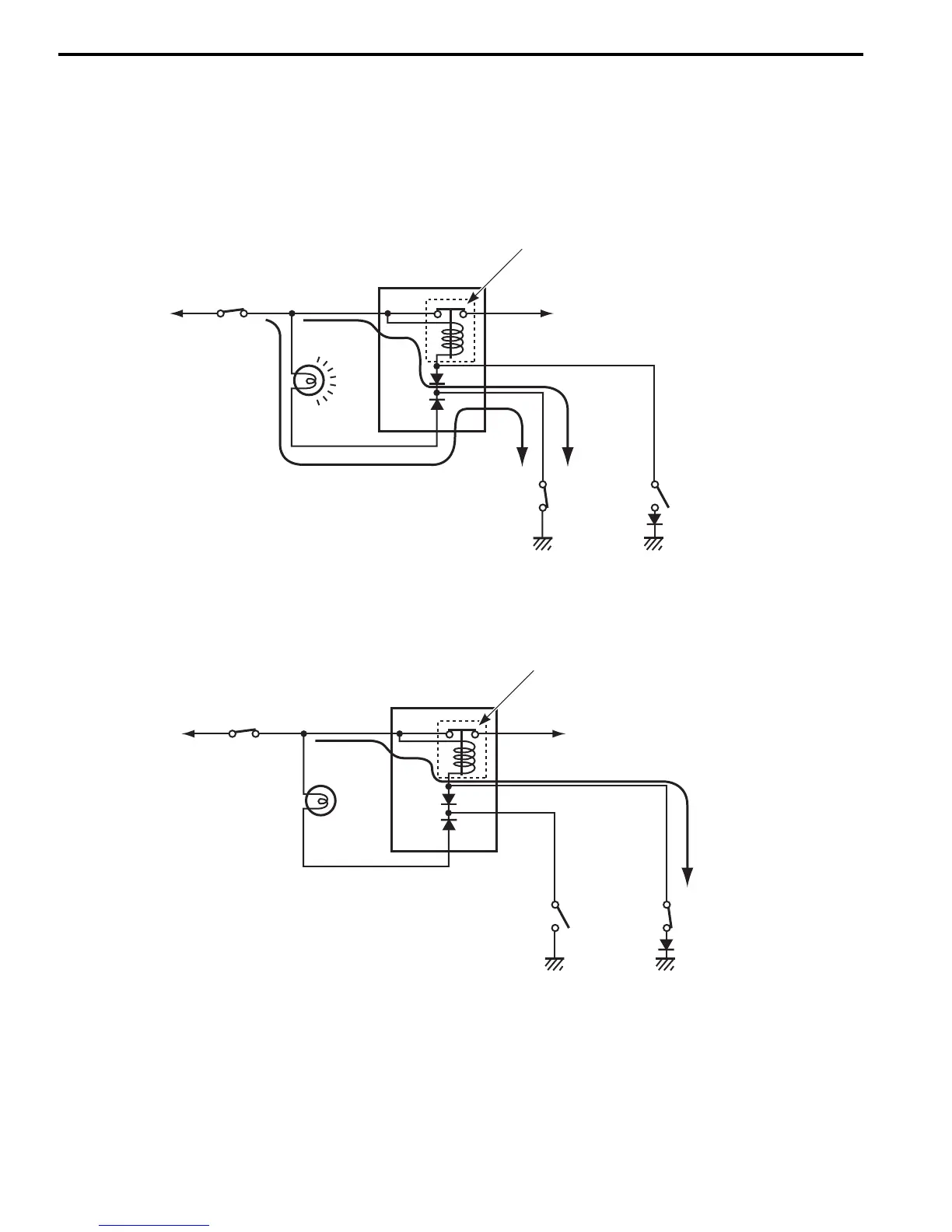

The circuit consists of the turn signal/side-stand relay, neutral indicator light and switches. The ignition coils will send
voltage to the spark plugs dependant on what gear the transmission is in and whether the side-stand is either up or
down. The gear position and side-stand switches work together in this system. The ignition coils work only in two
situations as follows.
• Transmission: Neutral (ON) / Side-stand: Down (OFF)
The current flow “A” switches “on” the side-stand relay and the ignition coils send voltage to the spark plugs even
when the side-stand is kept down.
• Side-stand: Up (ON)
The current flow “B” switches “on” the side-stand relay and the ignition coils send voltage to the spark plugs. The
engine can be started in any gear.
Battery
Ignition switch
“ON”
Turn signal /
side-stand relay
Gear position
switch “ON”
Side-stand switch
“DOWN POSITION”
Ignition coils
Side-stand relay “ON”
“A”“A”
I649G1190003-01
Battery
Ignition switch
“ON”
Turn signal /
side-stand relay
Gear position
switch “OFF”
Side-stand switch
“UP POSITION”
Ignition coils
Side-stand relay “ON”
“B”
I649G1190004-01

Suzuki 2005 GSF1200 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	790 mm (31.1 in)
Ground Clearance	135 mm (5.3 in)
Engine Type	4-stroke, 4-cylinder, DOHC
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Fuel Tank Capacity	20.0 L (5.3 US gal)
Overall Length	2, 140 mm (84.3 in)
Overall Width	790 mm (31.1 inches)
