Suzuki 2005 GSF1200 User Manual

Charging System: 1J-8

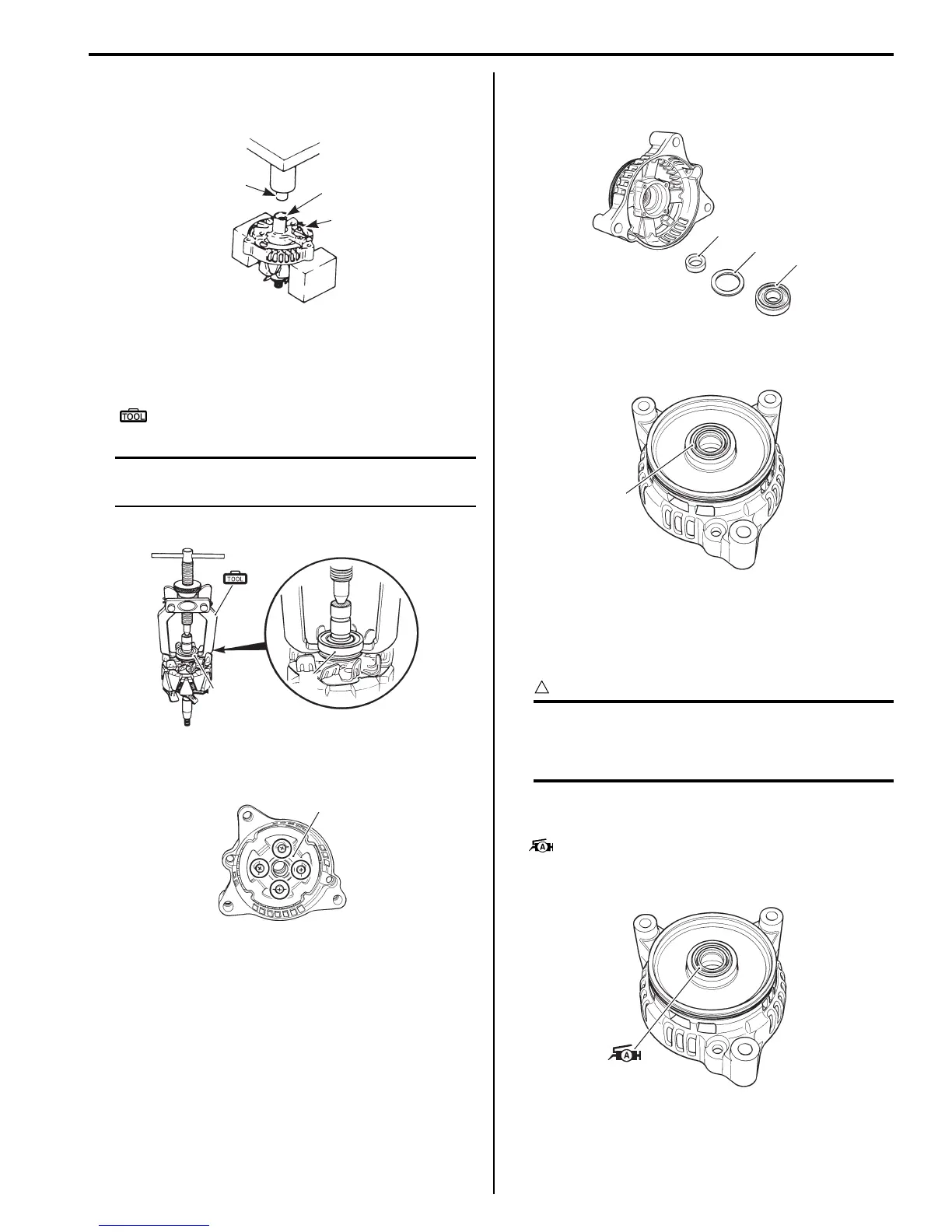

9) Remove the rotor (9) from the generator end housing
(10) using a hand press “A” as shown.
10) Remove the expander ring.
11) Remove the rotor bearing (11) using the special tool.
Special tool
(B): 09913–60910 (Bearing remover)
NOTE
If there is no abnormal condition the rotor
bearing removal (11) is not necessary.
12) Remove the bearing retainer (12).
13) Remove the bearing (13), washer (14) and spacer
(15).
14) Remove the oil seal (16).
Assembly
Reassembly is in the reverse order of disassembly.
Pay attention to the following points:
CAUTION
!
• The removed bearing(-s) and oil seal
should be replaced with new one(-s).
• Replace the O-ring with a new one.
• Apply SUZUKI SUPER GREASE “A” to the lip of the
oil seal.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
10
9
“A”
I649G11A0017-03
(B)
11
11
I649G11A0018-03
12
I649G11A0019-02
13
14
15
I649G11A0020-02
16
I649G11A0021-02
I649G11A0022-01

Suzuki 2005 GSF1200 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	790 mm (31.1 in)
Ground Clearance	135 mm (5.3 in)
Engine Type	4-stroke, 4-cylinder, DOHC
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Fuel Tank Capacity	20.0 L (5.3 US gal)
Overall Length	2, 140 mm (84.3 in)
Overall Width	790 mm (31.1 inches)
