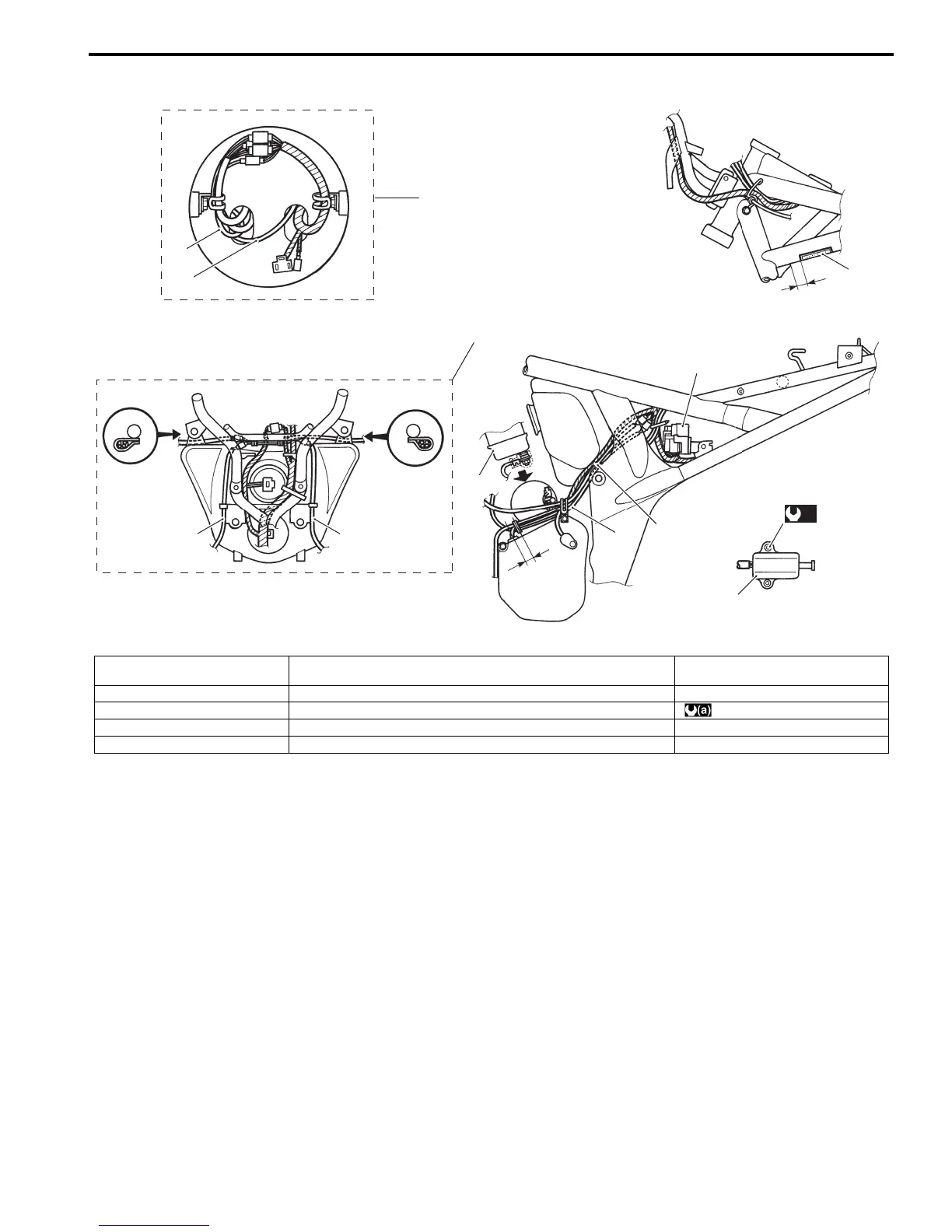

Wiring Systems: 9A-6
8
1
2
(a)
3
45
[A]
[B]
“b”
“a”
6
7
4
5
I649G1910905-05
1. Starter relay 6. CKP sensor lead/Side-stand lead/Gear position lead/Starter motor lead/
Speed sensor lead/Wiring harness
[A]: For GSF1200/GSF1200A
2. Side-stand switch 7. Starter motor lead/Clutch hose [B]: For GSF1200S/GSF1200SA
3. Starter motor 8. Ices label (Only for E-28) : 14 N⋅m (1.4 kgf-m, 10.0 lb-ft)
4. Turn signal lead (For RH) “a”: 10 mm (0.4 in)
5. Turn signal lead (For LH) “b”: Max. 10 mm (0.4 in)

Suzuki 2005 GSF1200 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	790 mm (31.1 in)
Ground Clearance	135 mm (5.3 in)
Engine Type	4-stroke, 4-cylinder, DOHC
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Fuel Tank Capacity	20.0 L (5.3 US gal)
Overall Length	2, 140 mm (84.3 in)
Overall Width	790 mm (31.1 inches)
