0C-9 Service Data:

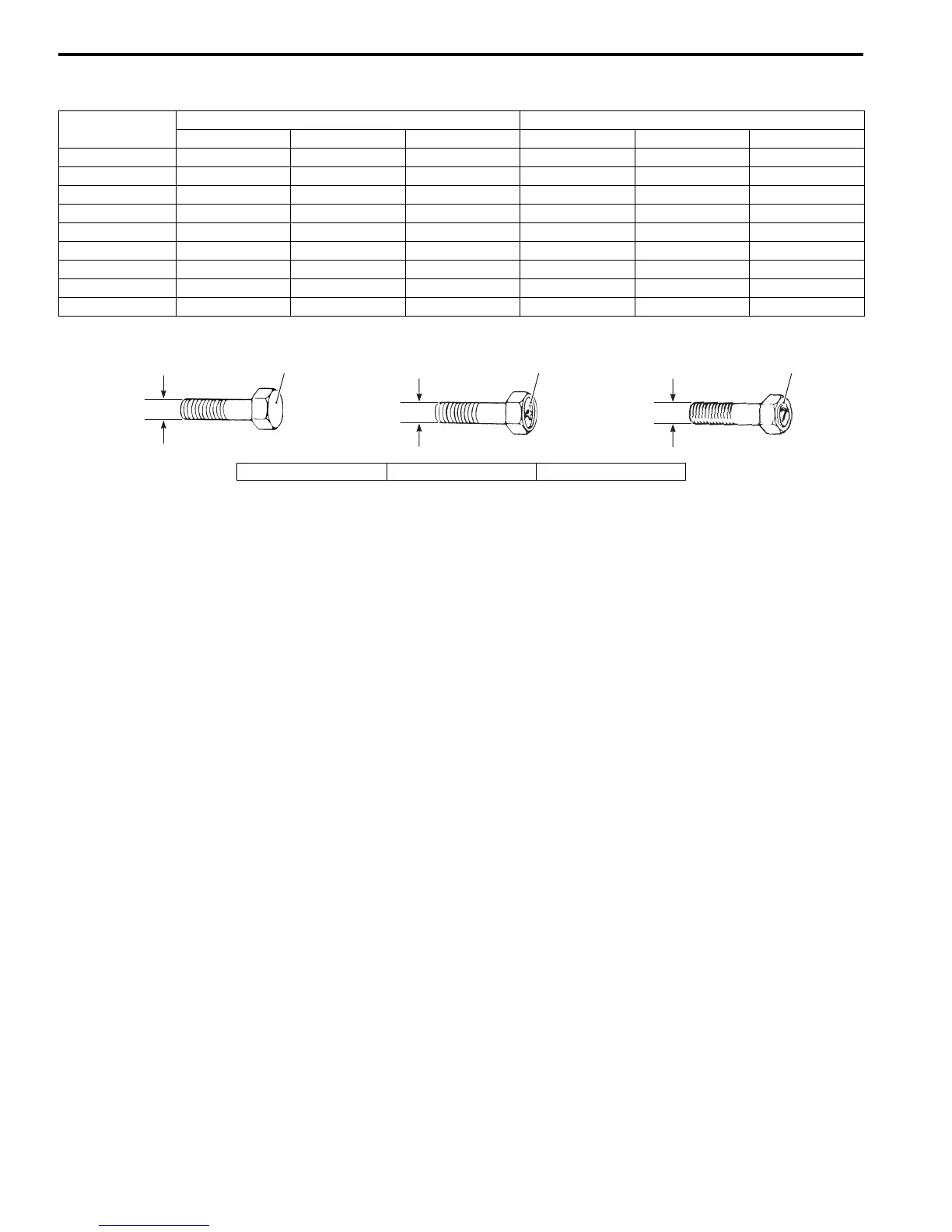

Tightening Torque Chart
For other bolts and nuts not listed in the preceding page, refer to this chart:
Bolt Diameter
“a” (mm)
Conventional or “4” marked bolt “7” marked bolt
N⋅mkgf–mlb–ft N⋅m kgf–m lb–ft
4 1.5 0.15 1.0 2 0.2 1.5
5 3 0.3 2.0 5 0.5 3.5
6 6 0.6 4.5 10 1.0 7.0
8 13 1.3 9.5 23 2.3 16.5
10 29 2.9 21.0 50 5.0 36.0
12 45 4.5 32.5 85 8.5 61.5
14 65 6.5 47.0 135 13.5 97.5
16 105 10.5 76.0 210 21.0 152.0
18 160 16.0 115.5 240 24.0 173.5
321
“a”
“a”
“a”
I649G1030001-03
1. Conventional bolt 2. “4” marked bolt 3. “7” marked bolt

Suzuki 2005 GSF1200 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (transistorized)
Lubrication	Wet sump
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Seat Height	790 mm (31.1 in)
Ground Clearance	135 mm (5.3 in)
Engine Type	4-stroke, 4-cylinder, DOHC
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Fuel Tank Capacity	20.0 L (5.3 US gal)
Overall Length	2, 140 mm (84.3 in)
Overall Width	790 mm (31.1 inches)
