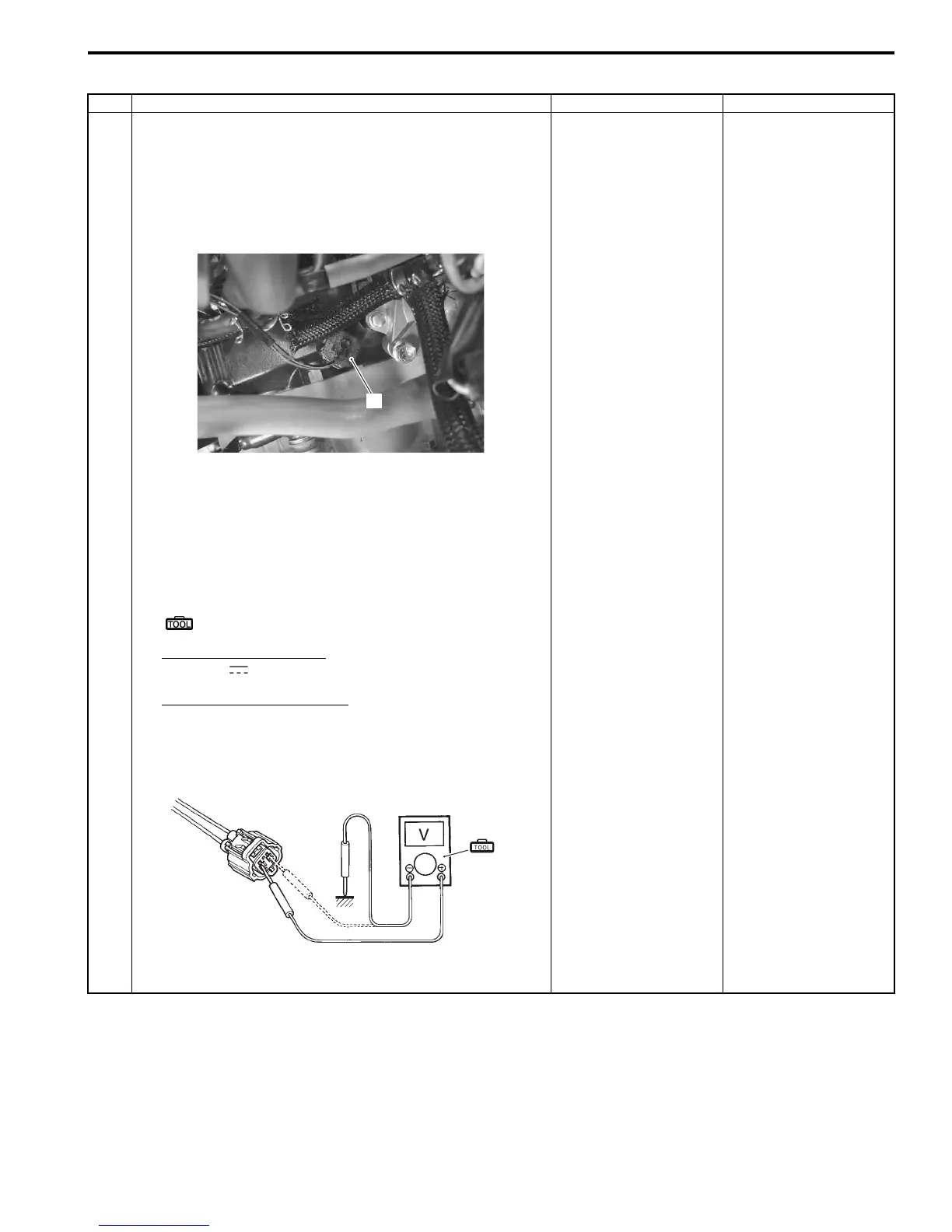

Engine General Information and Diagnosis: 1A-53
C15 (Use of mode select switch)
Step Action Yes No
1 1) Turn the ignition switch OFF.
2) Lift and support the fuel tank. Refer to “Fuel Tank
Removal and Installation in Section 1G (Page 1G-9)”.
3) Check the ECT sensor coupler (1) for loose or poor
contacts.
If OK, then measure the ECT sensor input voltage.
4) Disconnect the ECT coupler and turn the ignition switch
ON.
5) Measure the input voltage between the B/Bl wire and
ground.
If OK, then measure the input voltage between the B/Bl
wire and B/Br wire.
Special tool
(A): 09900–25008 (Multi-circuit tester set)
Tester knob indication
Voltage ( )
ECT sensor input voltage
4.5 – 5.5 V
((+) terminal: B/Bl – (–) terminal: Ground, (+)
terminal: B/Bl – (–) terminal: B/Br)
Is the voltage OK?
Go to Step 2. • Loose or poor
contacts on the ECM
coupler.
• Open or short circuit
in the B/Bl or B/Br
wire.
1
I837H1110028-01
(A)
I718H1110048-03

Suzuki GSX-R600 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.9:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Displacement	599cc
Transmission	6-speed, constant mesh
Front Tire Size	120/70ZR17M/C (58W)
Rear Tire Size	180/55ZR17M/C (73W)
Overall Length	2030 mm
Overall Width	710 mm
Seat Height	810 mm
Ground Clearance	130 mm
Curb Weight	187 kg
Fuel Tank Capacity	17.0 L
