Suzuki GSX-R600 User Manual

Engine General Information and Diagnosis: 1A-7
Component Location

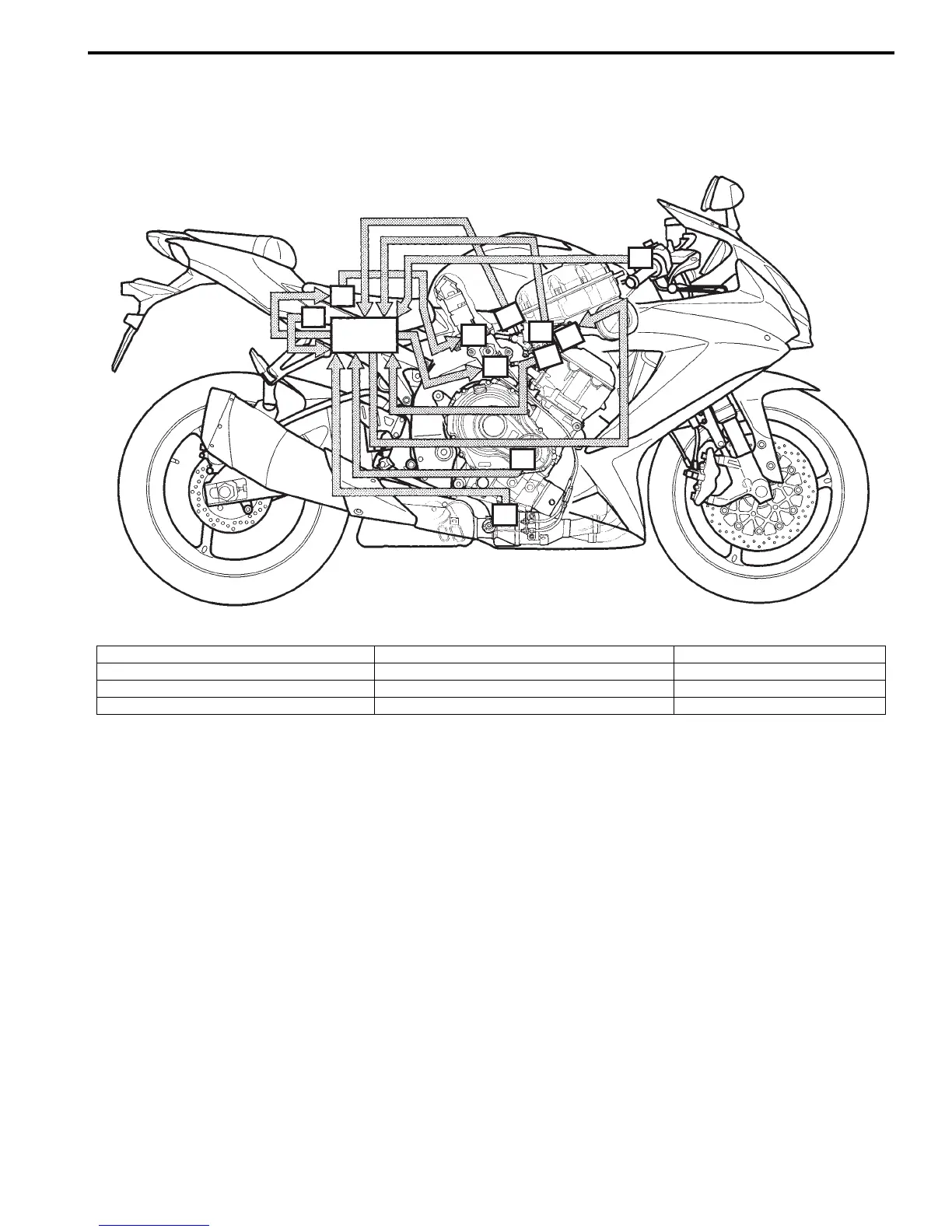

FI System Parts Location
B837H11103001
“A”
“K”
“E”
“I”
“J”
“F”
“C”
“D”
“B”
“G”
“H”
“L”
I837H1110126-01
“A”: ECM “E”: Intake air pressure sensor (IAPS) “I”: Fuel pump relay (FP relay)
“B”: Throttle position sensor (TPS) “F”: Exhaust control valve actuator (EXCVA) “J”: Fuel pump (FP)
“C”: Secondary throttle position sensor (STPS) “G”: Heated oxygen sensor (HO2S) “K”: Tip-over sensor (TOS)
“D”: Secondary throttle valve actuator (STVA) “H”: Crankshaft position sensor (CKPS) “L”: Drive mode selector

Suzuki GSX-R600 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.9:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Displacement	599cc
Transmission	6-speed, constant mesh
Front Tire Size	120/70ZR17M/C (58W)
Rear Tire Size	180/55ZR17M/C (73W)
Overall Length	2030 mm
Overall Width	710 mm
Seat Height	810 mm
Ground Clearance	130 mm
Curb Weight	187 kg
Fuel Tank Capacity	17.0 L
