1K-1 Exhaust System:
Engine
Exhaust System
Precautions
Precautions for Exhaust System
B837H11B00001
WARNING
!
To avoid the risk of being burned, do not touch the exhaust system when the system is hot. Any
service on the exhaust system should be performed when the system is cool.
CAUTION
!
Make sure that the exhaust pipes and muffler have enough clearance from the rubber parts and plastic
parts to avoid melting.
General Description
Exhaust Control System Description
B837H11B01001

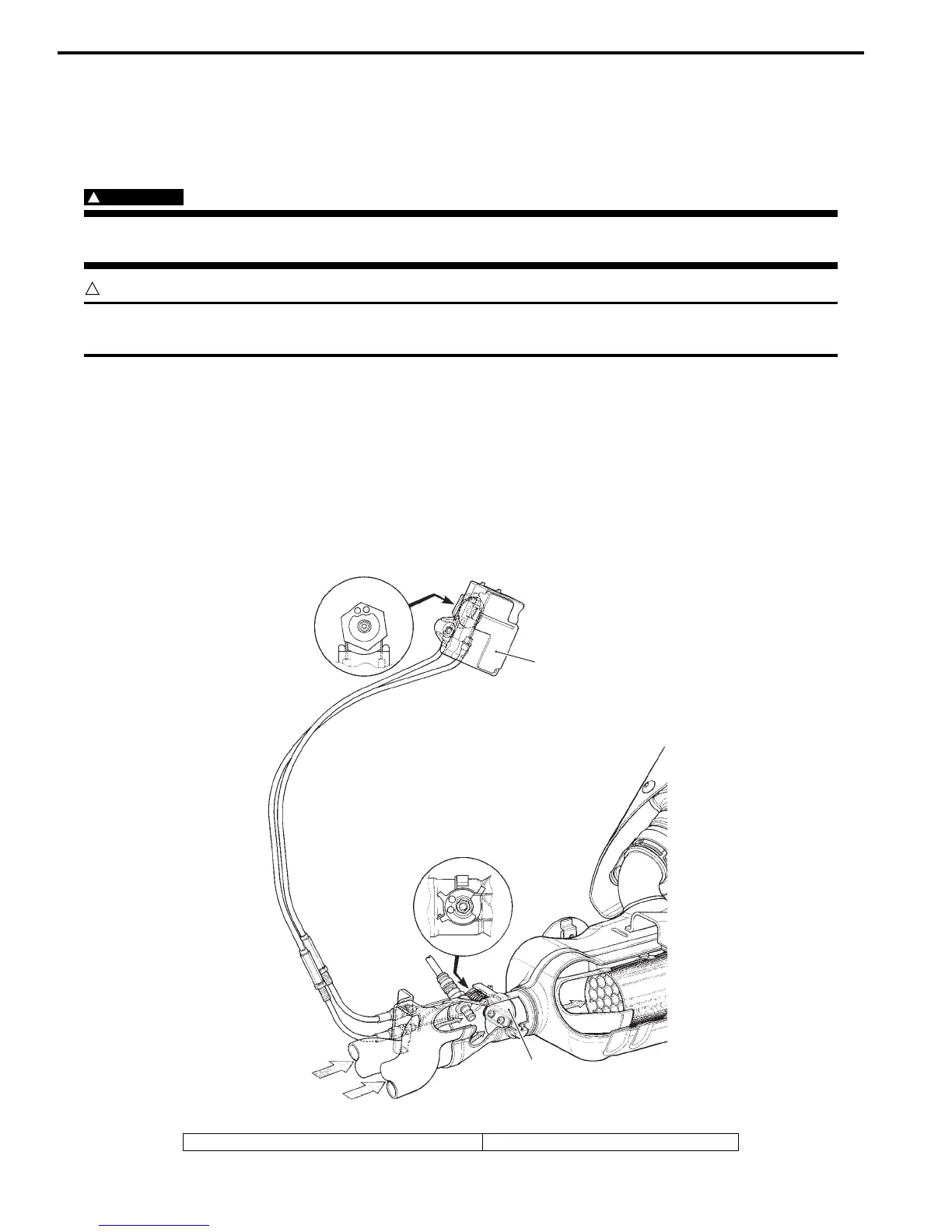

The exhaust control system (EXCS) consists of the exhaust control valve (EXCV), exhaust control valve actuator
(EXCVA) and exhaust control valve cables (EXCV cables).
EXCV is installed in the exhaust pipe. EXCVA is mounted inside of the right frame. The EXCV is operated by the
EXCVA via the cables. This system is designed to improve the engine torque at low engine rpm.
1
2
I837H11B0042-02
1. Exhaust control valve actuator (EXCVA) 2. Exhaust control valve (EXCV)
