1A-4 Engine General Information and Diagnosis:
Dealer Mode

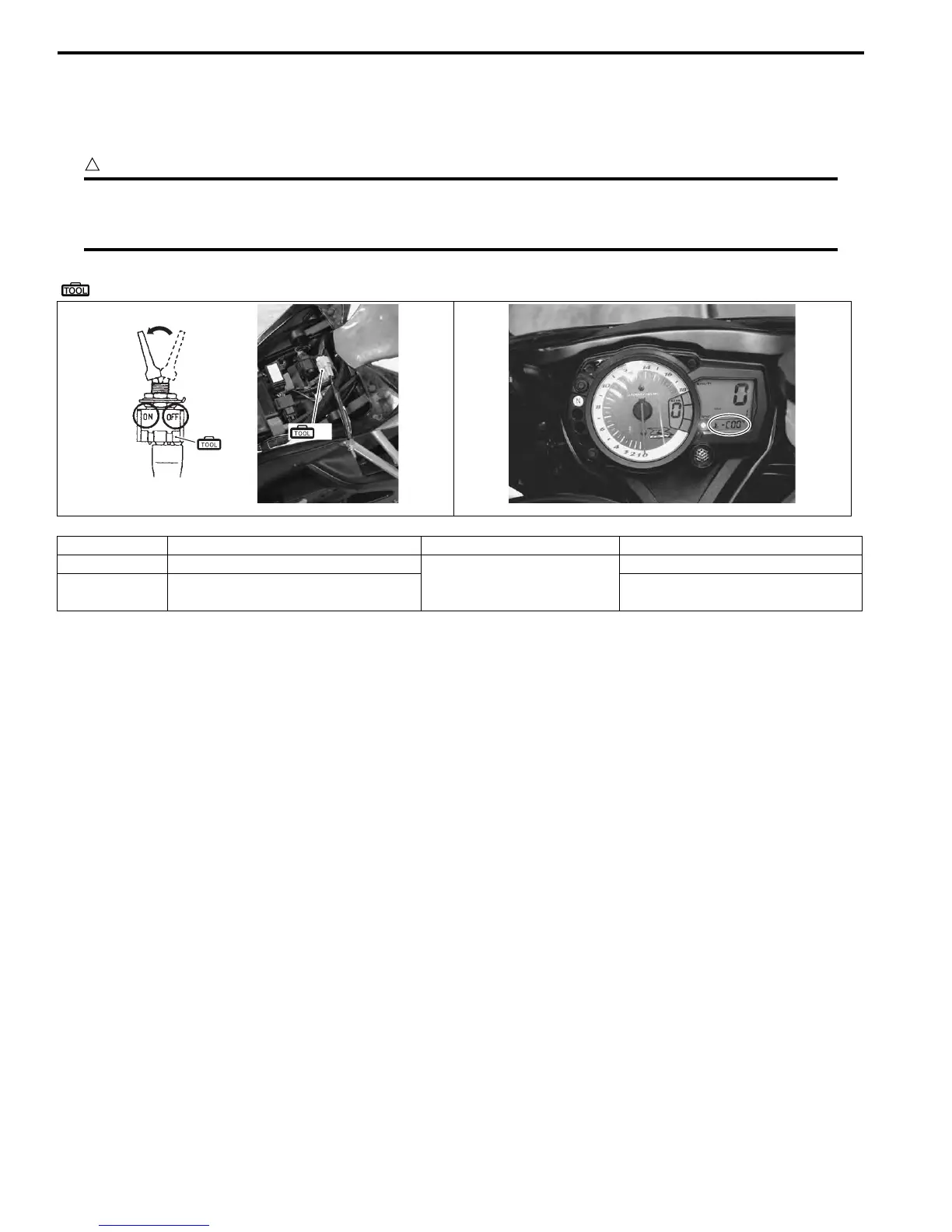

The defective function is memorized in the computer. Use the special tool’s coupler to connect to the mode select
switch. The memorized malfunction code is displayed on LCD (DISPLAY) panel. Malfunction means that the ECM
does not receive signal from the devices. These affected devices are indicated in the code form.
CAUTION
!
Before checking the malfunction code, do not disconnect the ECM coupler.
If the coupler from the ECM is disconnected, the malfunction code memory is erased and the
malfunction code can not be checked.
Special tool
(A): 09930–82720 (Mode select switch)
Schematic and Routing Diagram
FI System Wiring Diagram
B837H11102001
Malfunction LCD (display) indication FI light indication Indication mode
“NO” C00
FI indicator light turns OFF.
—
“YES”
C** code is indicated from small
numeral to large one.
For each 2 sec., code is indicated.
(A)
(A)
I837H1110002-02
I837H1110125-02

Suzuki GSX-R600 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.9:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Displacement	599cc
Transmission	6-speed, constant mesh
Front Tire Size	120/70ZR17M/C (58W)
Rear Tire Size	180/55ZR17M/C (73W)
Overall Length	2030 mm
Overall Width	710 mm
Seat Height	810 mm
Ground Clearance	130 mm
Curb Weight	187 kg
Fuel Tank Capacity	17.0 L
