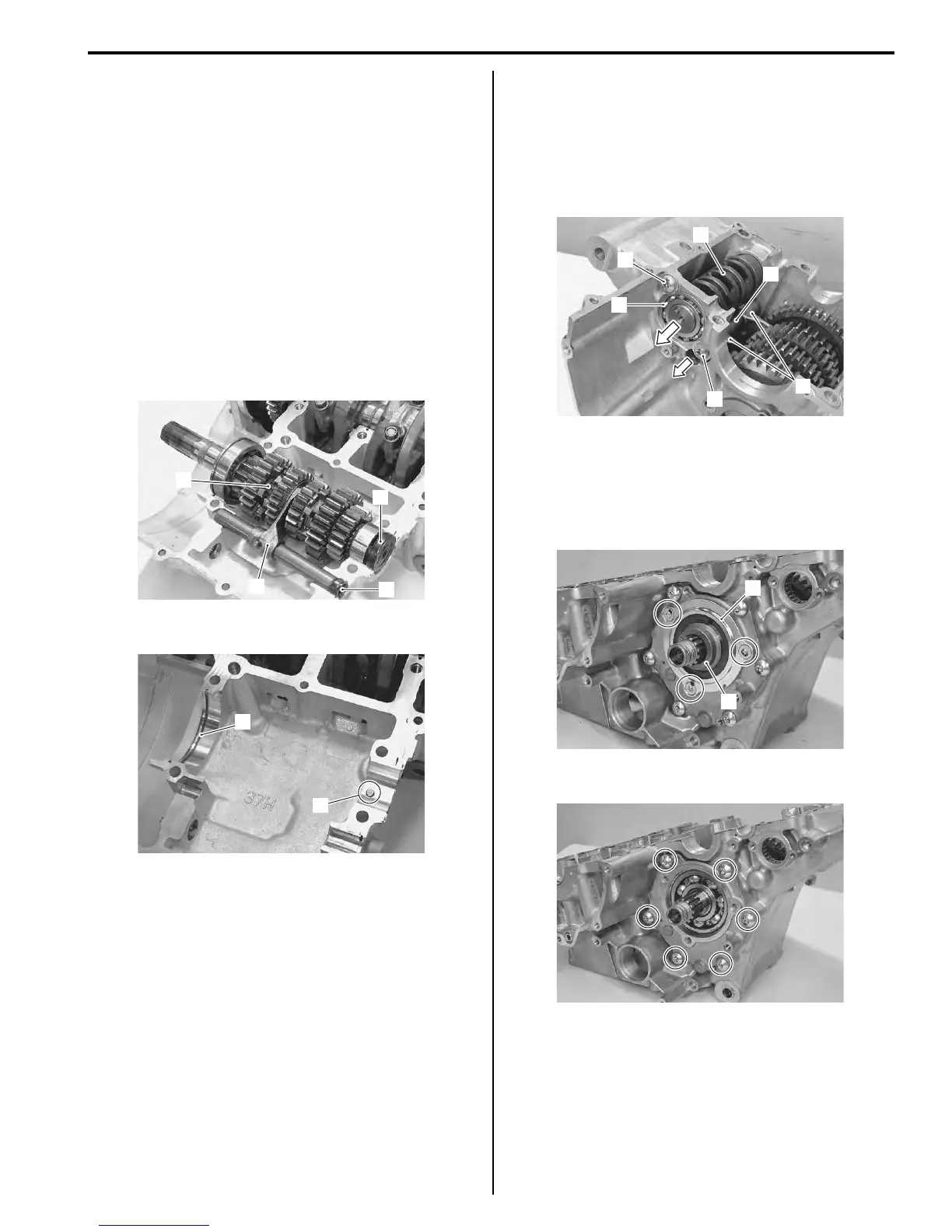

Manual Transmission: 5B-3
Transmission Removal
B837H15206002
1) Remove the engine assembly from the frame. Refer
to “Engine Assembly Removal in Section 1D
(Page 1D-19)”.
2) Remove the engine top side. Refer to “Engine Top
Side Disassembly in Section 1D (Page 1D-25)”.
3) Separate the upper and lower crankcases. Refer to
“Engine Bottom Side Disassembly in Section 1D
(Page 1D-47)”.
Countershaft Assembly
1) Remove the gearshift shaft plug (1) and gearshift
fork/gearshift shaft (2).
2) Remove the clutch push rod oil seal (3) and
countershaft assembly (4).
3) Remove the bearing pin (5) and C-ring (6).
Gearshift Fork and Gearshift Cam
1) Remove the screws (1).
2) Remove the gearshift fork shaft (2).
3) Remove the gearshift cam (3) along with its bearing
(4).
4) Remove the gearshift fork (5).
Driveshaft Assembly
1) Remove the spacer (1).
2) Remove the oil seal retainer (2) by removing the dust
seal retainer bolts.
3) Remove the driveshaft left bearing case bolts.
4) By using suitable size bolts (3), remove the
driveshaft left bearing case (4).
1
3
4
2
I837H1520001-01
6
5
I837H1520002-01
1
1
3
5
4
2
I837H1520003-01
1
2
I837H1520004-01
I837H1520005-01
