1B-2 Emission Control Devices:
Crankcase Emission Control System Description
B837H11201002
The engine is equipped with a PCV system to prevent discharging crankcase emissions into the atmosphere. Blow-by
gas in the engine is constantly drawn into the crankcase, which is returned to the combustion chamber through the
PCV (breather) hose, air cleaner and throttle body.
“C”
“D”
“E”
“A”
“B”
1
2
I837H1120046-01

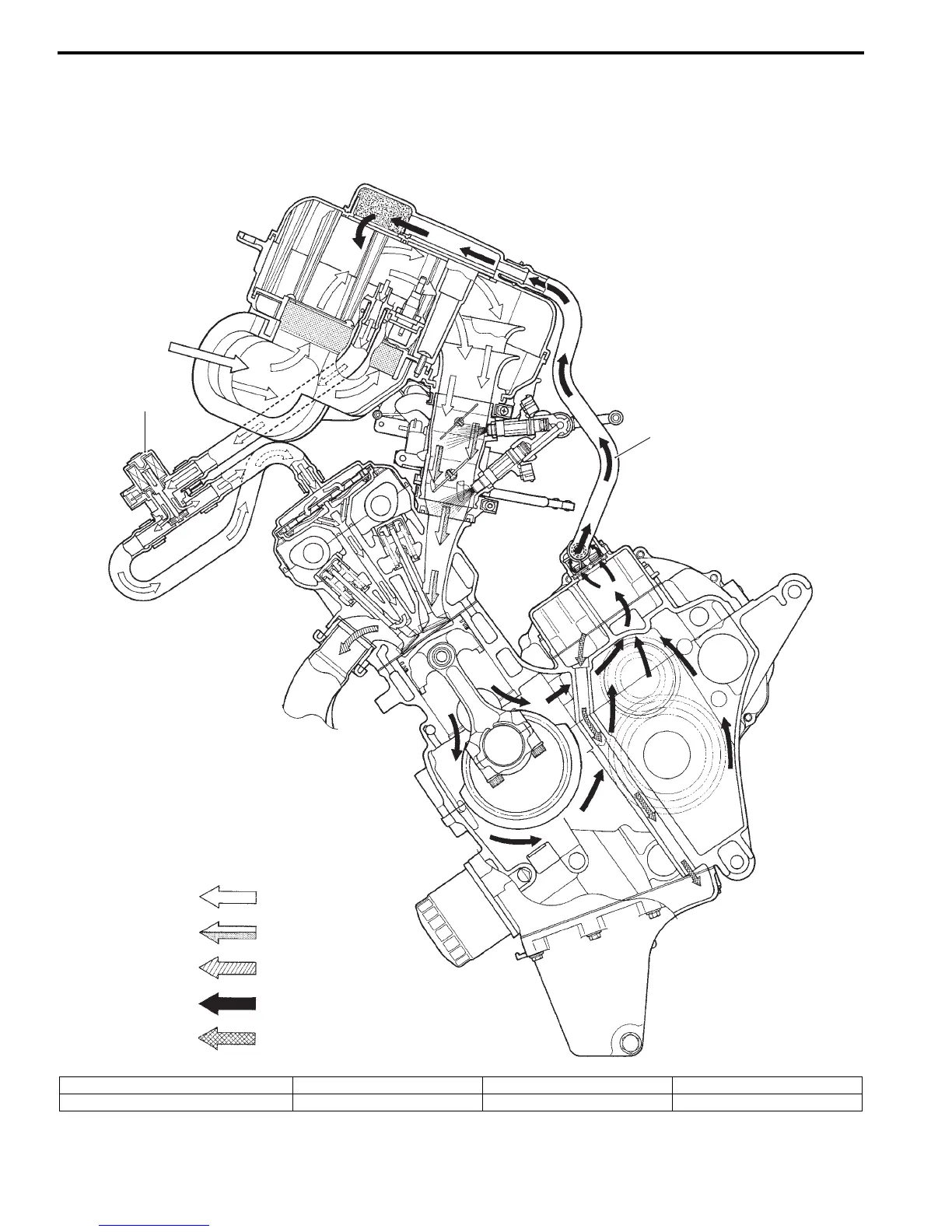

1. PAIR control solenoid valve “A”: Fresh air C”: Exhaust gas “E”: Return oil
2. PCV hose “B”: Fuel/Air mixture “D”: Blow-by gas
