Suzuki GSX-R600 User Manual

Engine Mechanical: 1D-53

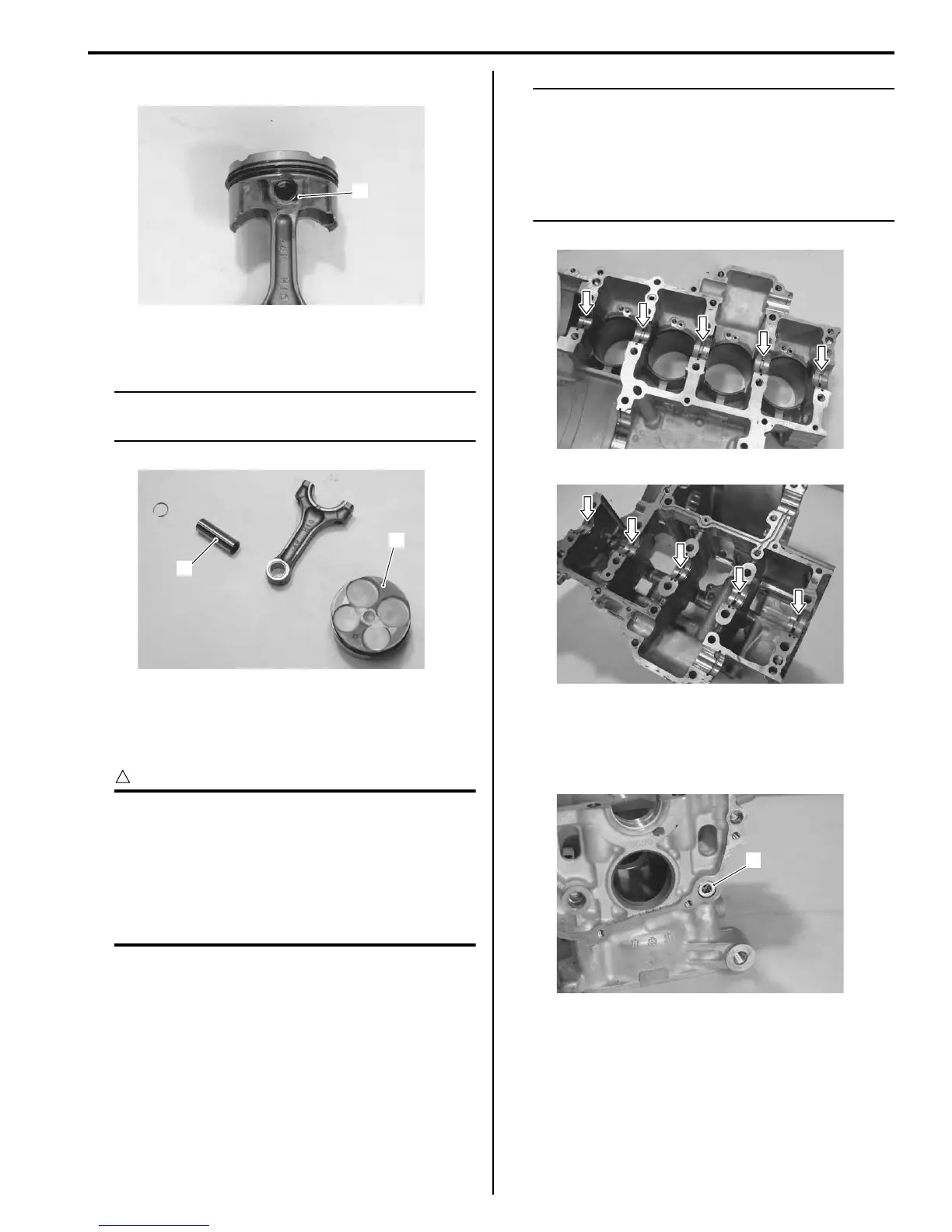

2) Remove the piston pin circlip (1).
3) Draw out the piston pin (2) and remove the piston
head (3).
NOTE
Scribe the cylinder number on the piston
head.
Crankshaft Journal Bearing
Remove the crankshaft journal bearings, upper and
lower.
CAUTION
!
• When removing the crankshaft journal
bearings, be careful not to scratch the
crankcase and the crankshaft journal
bearings.
• Do not touch the bearing surfaces with
your hands. Grasp the bearings by their
edges.
NOTE
• Do not remove the crankshaft journal
bearings unless absolutely necessary.
• Make a note of where the crankshaft
journal bearings are removed from so that
they can be reinstalled in their original
positions.
Oil Jet
1) Remove the oil gallery jet (1) (for generator) from the
lower crankcase.
1
I837H1140104-02
3
2
I837H1140105-02
I837H1140106-01
I837H1140107-01
1
I837H1140108-01

Suzuki GSX-R600 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.9:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Displacement	599cc
Transmission	6-speed, constant mesh
Front Tire Size	120/70ZR17M/C (58W)
Rear Tire Size	180/55ZR17M/C (73W)
Overall Length	2030 mm
Overall Width	710 mm
Seat Height	810 mm
Ground Clearance	130 mm
Curb Weight	187 kg
Fuel Tank Capacity	17.0 L
