Suzuki GSX-R600 User Manual

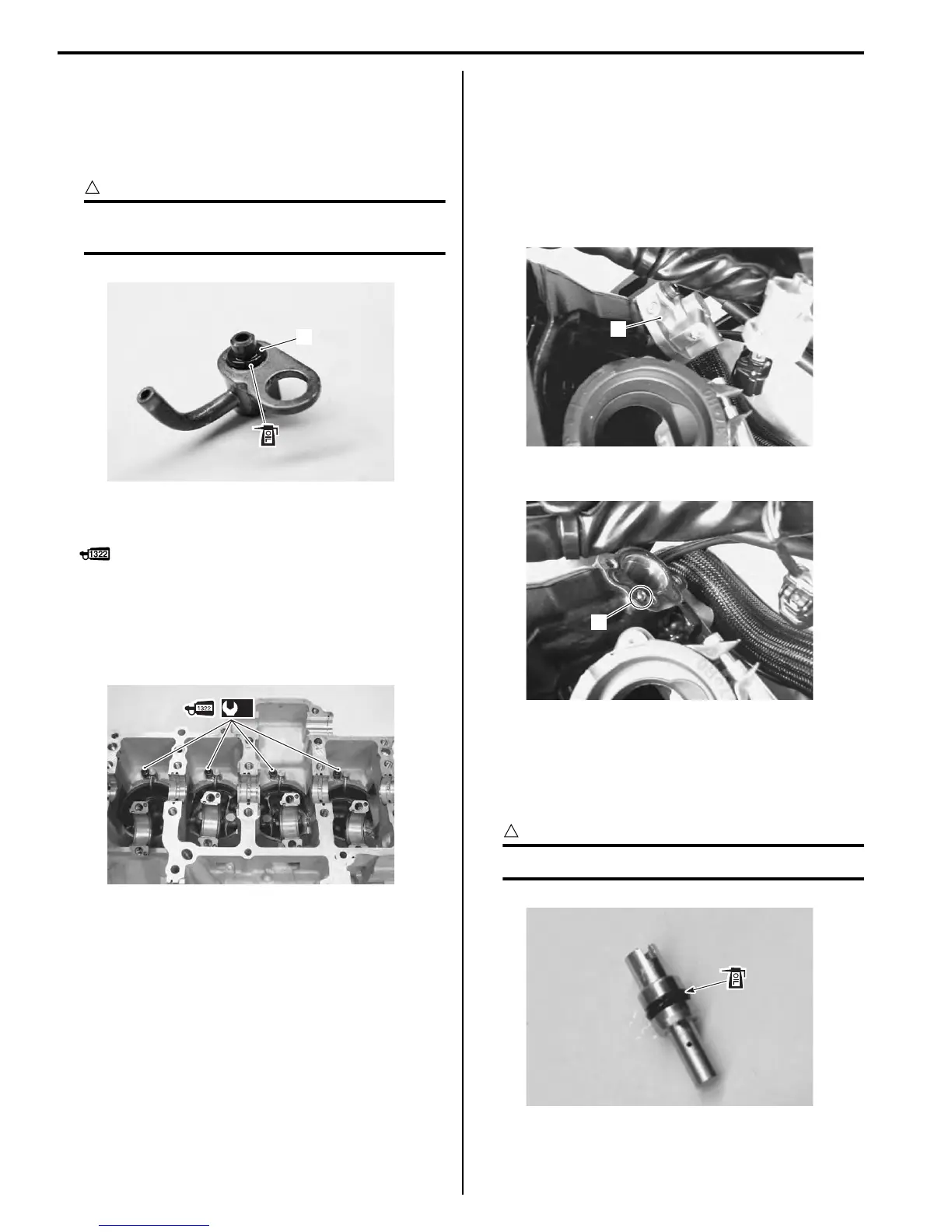

1E-10 Engine Lubrication System:
Installation
Installation is in the reverse order of removal. Pay
attention to the following points:
• Fit the new O-ring (1) to each piston cooling oil jet and
apply engine oil to them.
CAUTION
!
Use the new O-rings to prevent oil pressure
leakage.
• Apply a small quantity of thread lock to the bolts and
tighten them to the specified torque.
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER 1322 or
equivalent)
Tightening torque
Piston cooling oil jet bolt (a): 10 N·m (1.0 kgf-m,
7.0 lb-ft)
Oil Jet (For Cam Chain Tension Adjuster)
Removal
1) Remove the throttle body. Refer to “Throttle Body
Removal and Installation in Section 1D (Page 1D-
10)”.
2) Remove the cam chain tension adjuster (1). Refer to
“Engine Top Side Disassembly in Section 1D
(Page 1D-25)”.
3) Remove the oil jet (2).
Installation
Installation is in the reverse order of removal. Pay
attention to the following points:
• Apply engine oil to the O-ring.
CAUTION
!
Use a new O-ring to prevent oil leakage.
1
I837H1150021-01
(a)
I837H1150022-01
1
I837H1150023-01
2
I837H1150024-01
I837H1150025-01

Suzuki GSX-R600 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.9:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Displacement	599cc
Transmission	6-speed, constant mesh
Front Tire Size	120/70ZR17M/C (58W)
Rear Tire Size	180/55ZR17M/C (73W)
Overall Length	2030 mm
Overall Width	710 mm
Seat Height	810 mm
Ground Clearance	130 mm
Curb Weight	187 kg
Fuel Tank Capacity	17.0 L
