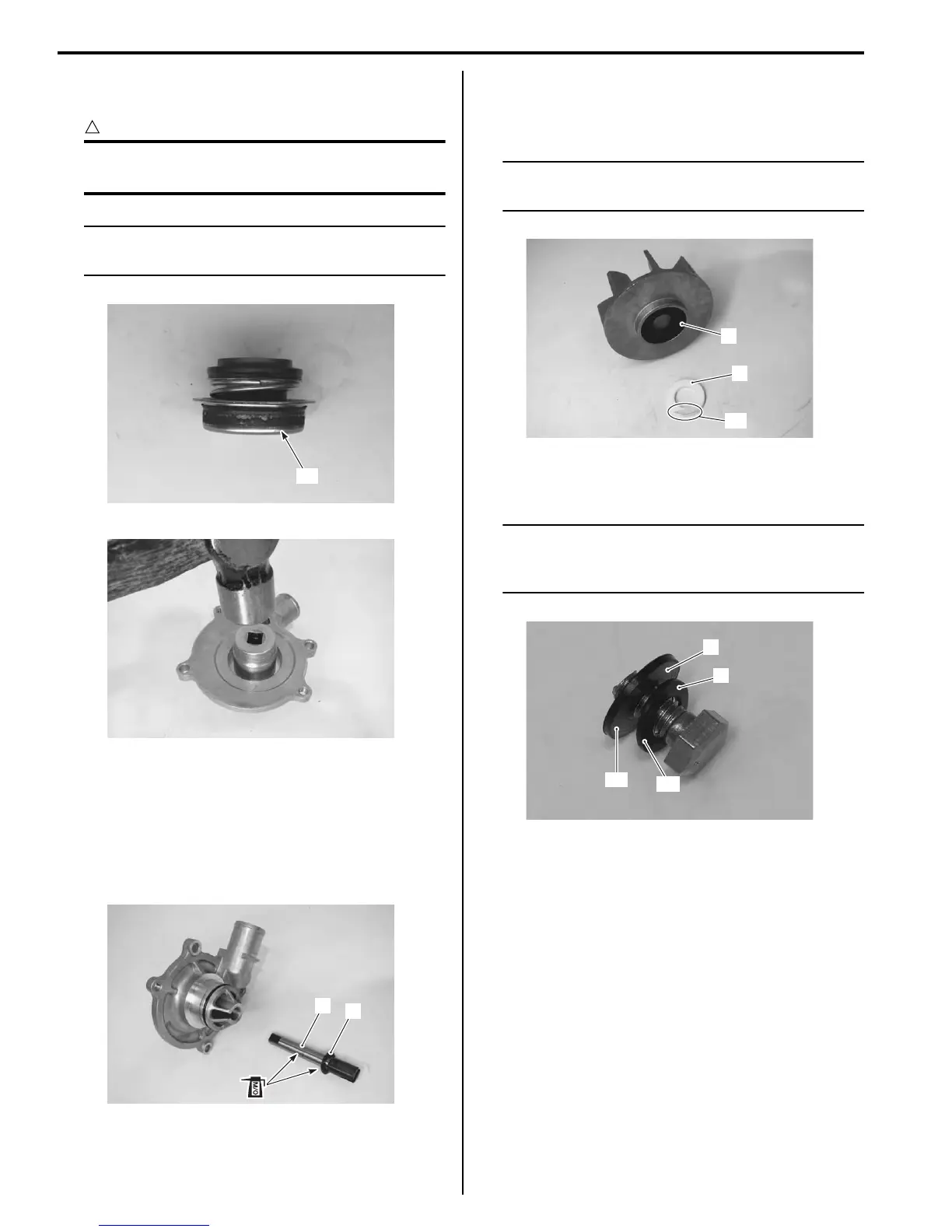

1F-15 Engine Cooling System:
3) Install a new mechanical seal using a suitable size
socket wrench.
CAUTION
!
The removed mechanical seal must be
replaced with a new one.
NOTE
On new mechanical seals, the sealer “A” has
been applied.
4) Apply molybdenum solution to the impeller shaft (1)
and washer (2).
M/O: Molybdenum oil (MOLYBDENUM OIL
SOLUTION)
5) Install the impeller shaft (1) and washer (2) to the
water pump body.
6) Install the rubber seal (3) into the impeller.
7) After wiping off the oily or greasy matter from the
mechanical seal ring (4), install it into the impeller.
NOTE
The paint marked side “B” of mechanical seal
ring faces the rubber seal.
8) Install the washer (5) and seal washer (6) onto the
impeller securing bolt.
NOTE
The metal side “C” of seal washer and the
curved side “D” of washer face the impeller
securing bolt head.
9) Install the impeller (7).
“A”
I837H1160040-02
I837H1160041-01
1
2
I837H1160042-01
3
4
“B”
I837H1160043-01
6
“C”
“D”
5
I837H1160044-01
