1G-12 Fuel System:

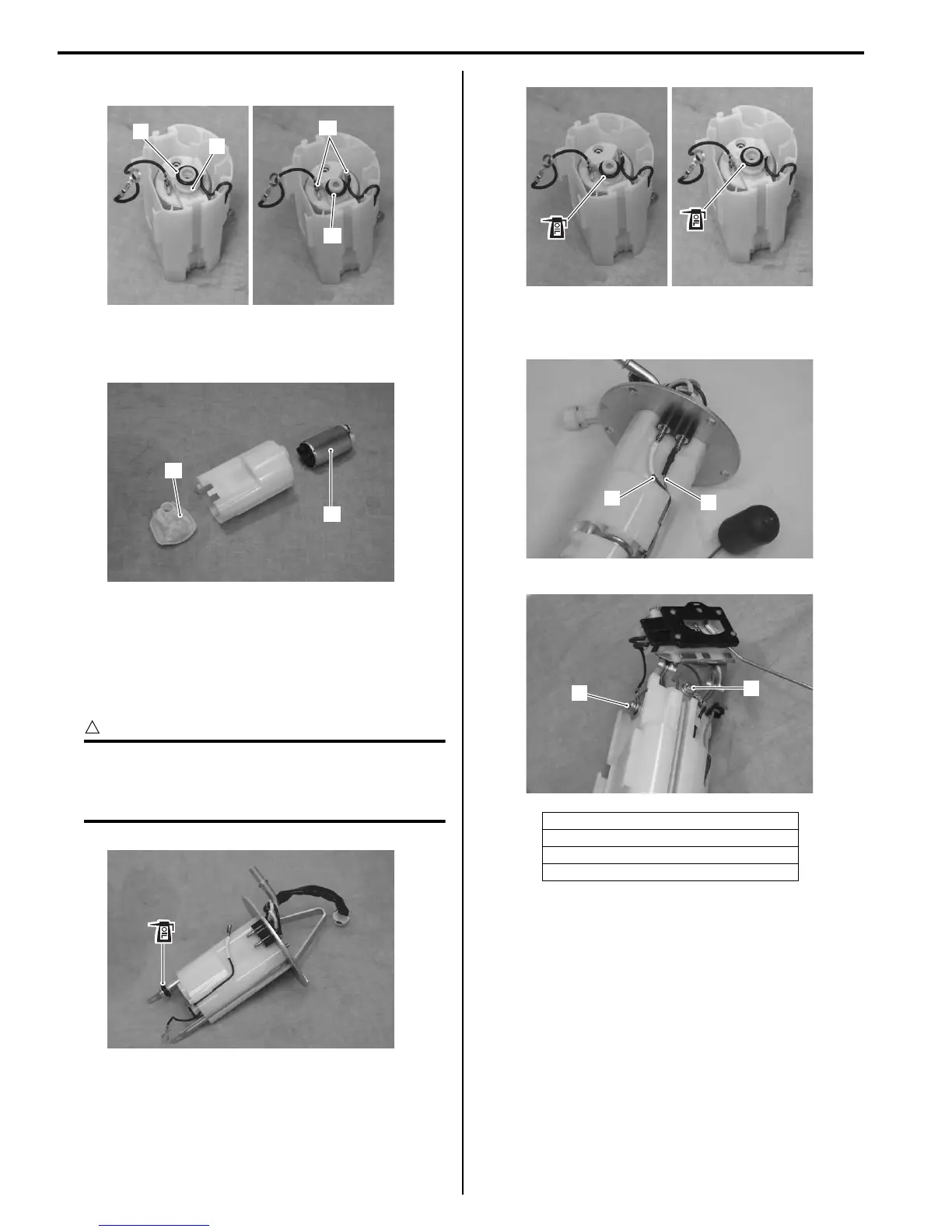

8) Remove the O-ring (10) and lead wires (11).
9) Remove the fuel mesh filter (12).
10) Remove the fuel pump (13).
Assembly
Refer to “Fuel Mesh Filter Inspection and Cleaning
(Page 1G-13)”.
Assemble the fuel tank pump in the reverse order of the
disassembly. Pay attention to the following points:
CAUTION
!
• To prevent fuel leakage, the bushing and
O-ring must be replaced with new ones.
• Apply engine oil lightly to the O-ring.
• Connect all lead wires securely so as not to cause
contact failure.
8
9
11
10
I837H1170022-01
12
13
I837H1170023-01
I837H1170024-01
1. Fuel pump (+) lead wire (B)
2. Fuel level gauge (+) lead wire (R)
3. Fuel pump (–) lead wire (B)
4. Fuel level gauge (–) lead wire (B)
I837H1170025-01
1
2
I837H1170026-01
3
4
I837H1170027-01

Suzuki GSX-R600 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.9:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Displacement	599cc
Transmission	6-speed, constant mesh
Front Tire Size	120/70ZR17M/C (58W)
Rear Tire Size	180/55ZR17M/C (73W)
Overall Length	2030 mm
Overall Width	710 mm
Seat Height	810 mm
Ground Clearance	130 mm
Curb Weight	187 kg
Fuel Tank Capacity	17.0 L
