Suzuki GSX-R600 User Manual

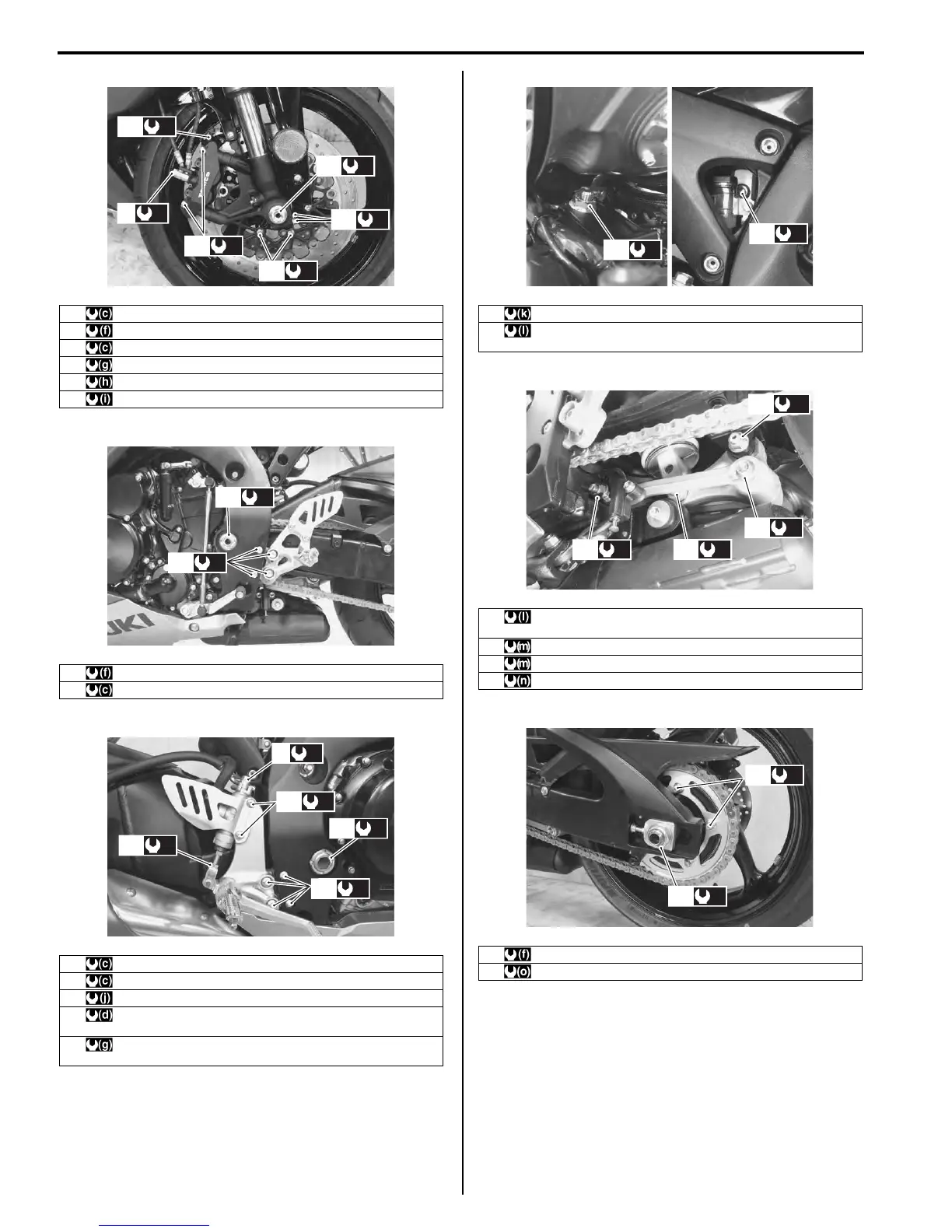

0B-21 Maintenance and Lubrication:
6 Brake hose union bolt 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
10 Front axle bolt 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
11 Front axle pinch bolt 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
12 Front brake disc bolt 18 N⋅m (1.8 kgf-m, 13.0 lb-ft)
13 Front brake caliper mounting bolt 39 N⋅m (3.9 kgf-m, 28.0 lb-ft)
14 Brake caliper air bleeder valve 7.5 N⋅m (0.75 kgf-m, 5.5 lb-ft)
15 Swingarm pivot nut 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
16 Front footrest bracket mounting bolt 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
6 Brake hose union bolt 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
16 Front footrest bracket mounting bolt 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
17 Swingarm pivot lock-nut 90 N⋅m (9.0 kgf-m, 65.0 lb-ft)
18 Rear brake master cylinder mounting bolt 10 N⋅m (1.0 kgf-m, 7.0
lb-ft)
19 Rear brake master cylinder rod lock-nut 18 N⋅m (1.8 kgf-m, 13.0
lb-ft)
(f)
10
(c)
11
(g)
12
(h)
13
(i)
14
(c)
6
I837H1020052-01
(f)
15
(c)
16
I837H1020053-01
(d)
18
(c)
6
(j)
17
(g)
19
(c)
16
I837H1020054-01
20 Rear shock absorber bracket nut 115 N⋅m (11.5 kgf-m, 83.0 lb-ft)
21 Rear shock absorber mounting bolt/nut 50 N⋅m (5.0 kgf-m, 36.0
lb-ft)
21 Rear shock absorber mounting bolt/nut 50 N⋅m (5.0 kgf-m, 36.0
lb-ft)
22 Cushion rod bolt/nut (Front) 98 N⋅m (9.8 kgf-m, 71.0 lb-ft)
23 Cushion lever mounting bolt/nut 98 N⋅m (9.8 kgf-m, 71.0 lb-ft)
24 Cushion rod bolt/nut (Rear) 78 N⋅m (7.8 kgf-m, 56.5 lb-ft)
25 Rear axle nut 100 N⋅m (10.0 kgf-m, 72.5 lb-ft)
26 Rear sprocket nut 60 N⋅m (6.0 kgf-m, 43.0 lb-ft)
(l)
21
(k)
20
I837H1020055-01
(m)
23
(n)
24
(l)
21
(m)
22
I837H1020056-01
(o)
26
(f)
25
I837H1020057-01

Suzuki GSX-R600 Specifications

General

Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	67.0 mm x 42.5 mm
Compression Ratio	12.9:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Displacement	599cc
Transmission	6-speed, constant mesh
Front Tire Size	120/70ZR17M/C (58W)
Rear Tire Size	180/55ZR17M/C (73W)
Overall Length	2030 mm
Overall Width	710 mm
Seat Height	810 mm
Ground Clearance	130 mm
Curb Weight	187 kg
Fuel Tank Capacity	17.0 L
