Suzuki RMX450Z Service Manual

General Information: 0A-6

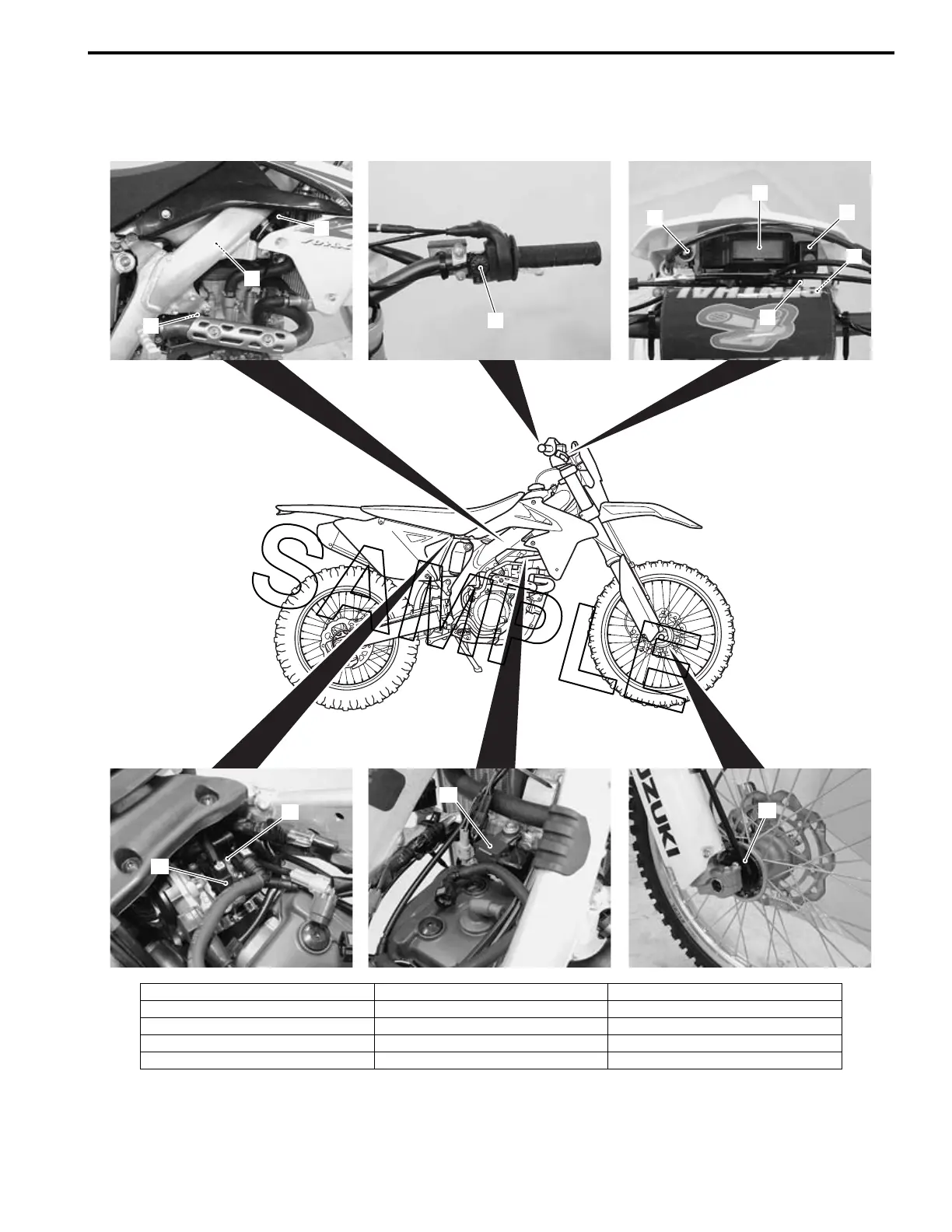

Component Location
Electrical Components Location
BA02J20103001
3
4
5
6
7
9
8
13
1
2
10
11
12
IA02J1010005-07
1. Fuel pump 6. Speedometer 11. IAP sensor
2. ECT sensor 7. Ignition switch 12. TO sensor
3. Ignition coil 8. Headlight relay 13. Speed sensor
4. Starter button 9. Fuse (Sub/Spare)
5. Fuel level indicator 10. Fuel injector

Suzuki RMX450Z Specifications

General

Displacement	449cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	96.0 mm x 62.1 mm
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Fuel Tank Capacity	6.2 L (1.6 US gal)
Overall Length	2185 mm (86.0 in)
Ground Clearance	325mm
Seat Height	955mm
Wheelbase	1, 480mm
