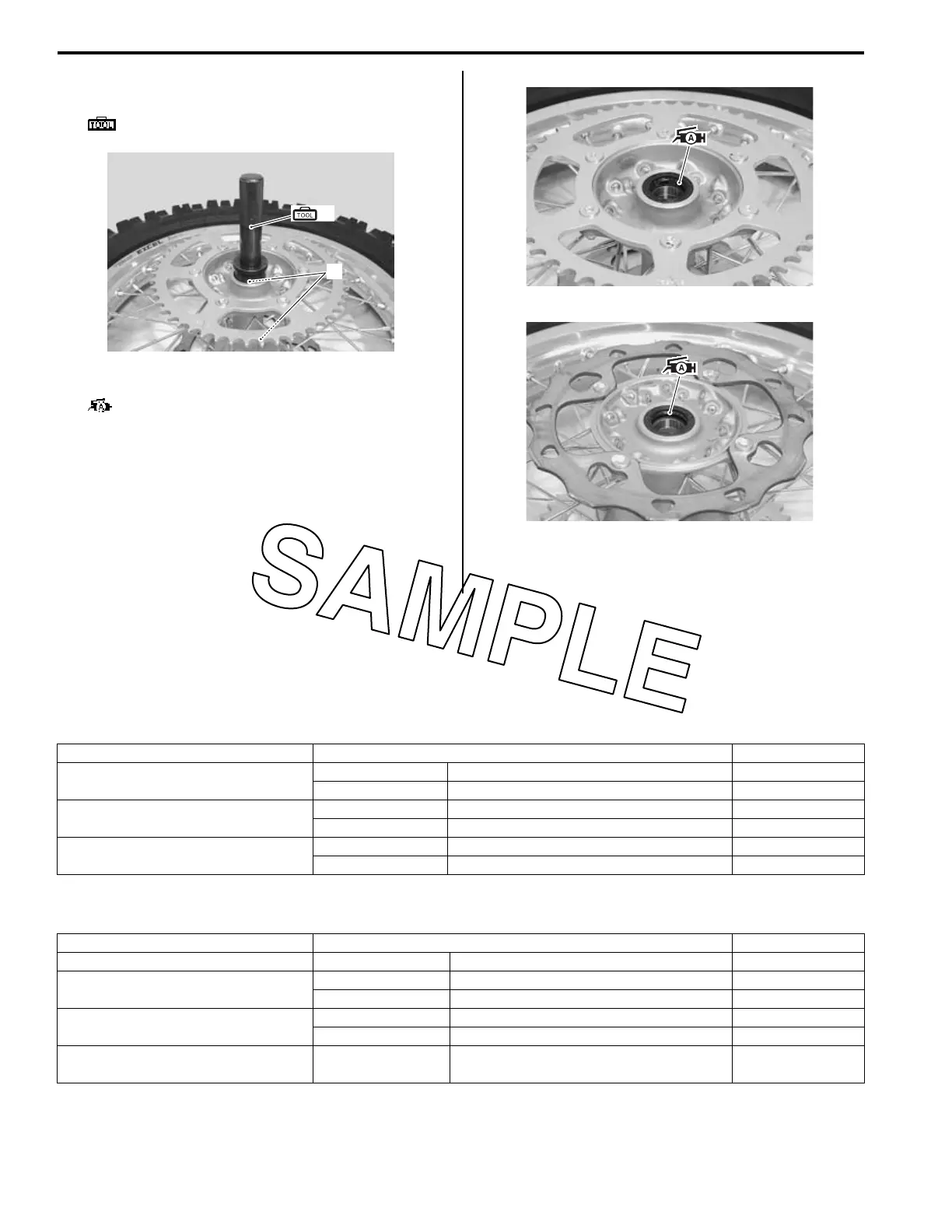

2D-15 Wheels and Tires:
5) Install a new dust seals (3) with the special tool.
Special tool
(C): 09913–70210 (Bearing installer set)
6) Apply grease to the each dust seal lip.
: Grease 99000–25010 (SUZUKI SUPER
GREASE “A” or equivalent)
7) Install the rear wheel assembly. Refer to “Rear
Wheel Assembly Removal and Installation”
(Page 2D-11).
Specifications
Service Data
BA02J22407001
Wheel
Unit: mm (in)
Tire
Unit: mm (in)
(C)
3
IA02J1240017-01
IA02J1240018-01
IA02J1240019-01
Item Standard Limit
Wheel rim runout
Axial — 2.0 (0.08)
Rear — 2.0 (0.08)
Wheel rim size
Front 21 x 1.60 —
Rear 18 x 2.15 —
Wheel axle runout
Front — 0.25 (0.010)
Rear — 0.25 (0.010)
Item Standard Limit
Cold inflation tire pressure Front & Rear 100 kPa (1.0 kgf/cm
2
, 14 psi)
Tire size
Front 80/100-21 51M —
Rear 110/100-18 64M —
Tire type
Front D742 F/A —
Rear D756 —
Tire tread depth
(Recommend depth)
Front & Rear — 4.0 (0.16)
