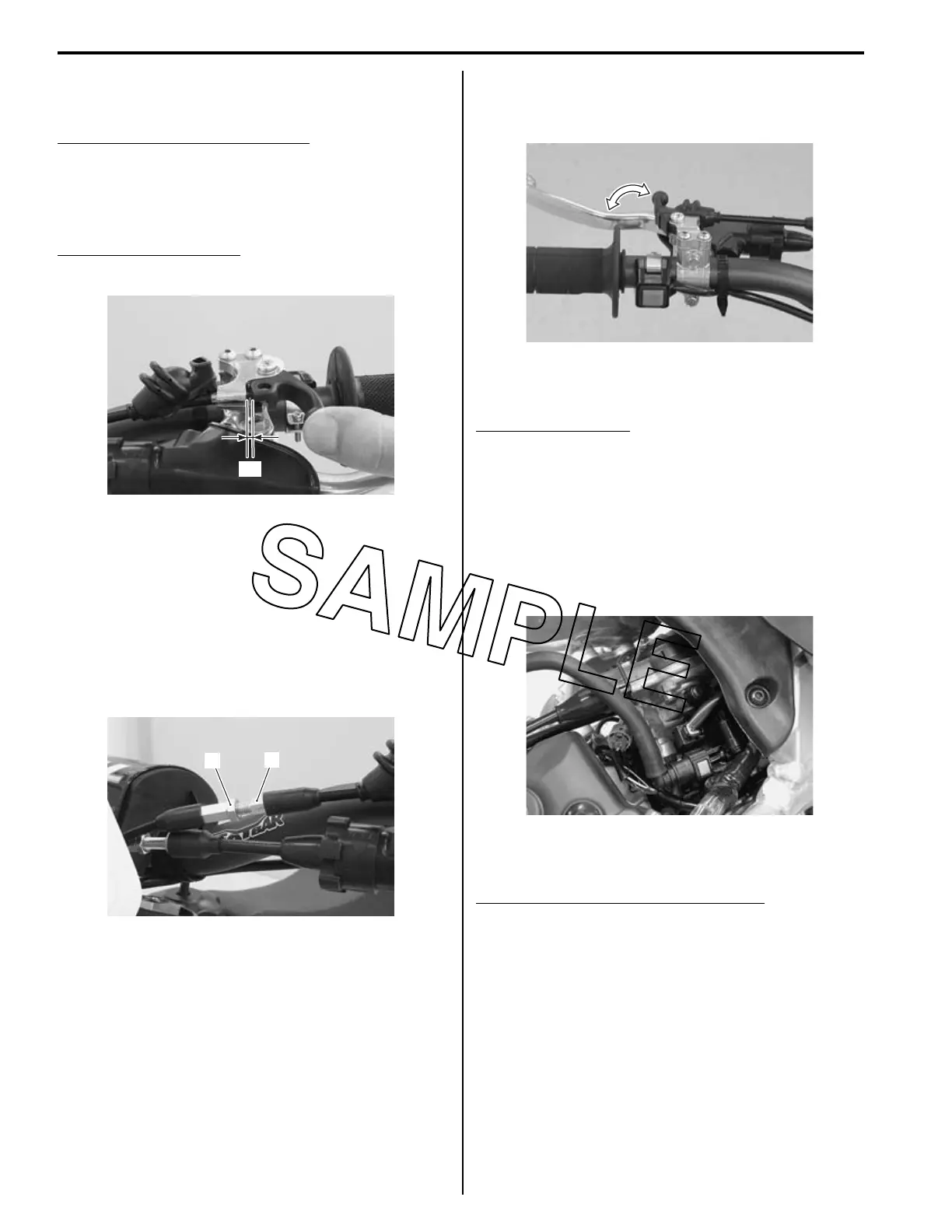

0B-13 Maintenance and Lubrication:
Hot Starter Lever Clearance Inspection and
Adjustment
BA02J20206011
Inspect hot starter lever clearance
Initially at 150 km (100 miles, 1 month) and every 1
000 km (600 miles, 6 months)
Inspect and adjust the hot starter lever clearance “a” as
follows:
Hot starter clearance “a”
2 – 3 mm (0.08 – 0.12 in)
1) Loosen the lock-nut (1).
2) Turn adjuster (2) so the hot starter lever clearance
measured at the lever holder obtains 2 – 3 mm (0.08
– 0.12 in) when squeezing the lever until pressure is
felt.
3) Tighten the lock-nut (1) to the specified torque.
Tightening torque
Cable adjuster lock-nut: 2.1 N·m (0.21 kgf-m, 1.5
lbf-ft)
4) Check that the hot starter lever moves smoothly from
full open to full close. If it does not move smoothly,
lubricate the hot starter cable.
Throttle Body Inspection
BA02J20206012
Inspect throttle body
Initially at 150 km (100 miles, 1 month) and every 1
000 km (600 miles, 6 months)
1) Remove the fuel tank. Refer to “Fuel Tank Removal
and Installation” in Section 1G (Page 1G-5).
2) Inspect the throttle body for dirt or mud. If any dirt or
mud is found, clean the throttle body. Refer to
“Throttle Body Inspection and Cleaning” in Section
1D (Page 1D-20).
Crankcase Breather (PCV) Hose Inspection
BA02J20206013
Inspect crankcase breather (PCV) hose
Initially 150 km (100 miles, 1 month) and every 1 000
km (600 miles, 6 months)
Inspect the crankcase breather (PCV) hose for damage,
clogging and bend. If any defects are found, the breather
hose must be replaced. Refer to “Crankcase Breather
(PCV) Hose Removal and Installation” in Section 1B
(Page 1B-1).
“a”
IA02J1020030-01
1
2
IA02J1020031-01
IA02J1020032-01
IA02J1020084-02
