Suzuki RMX450Z Service Manual

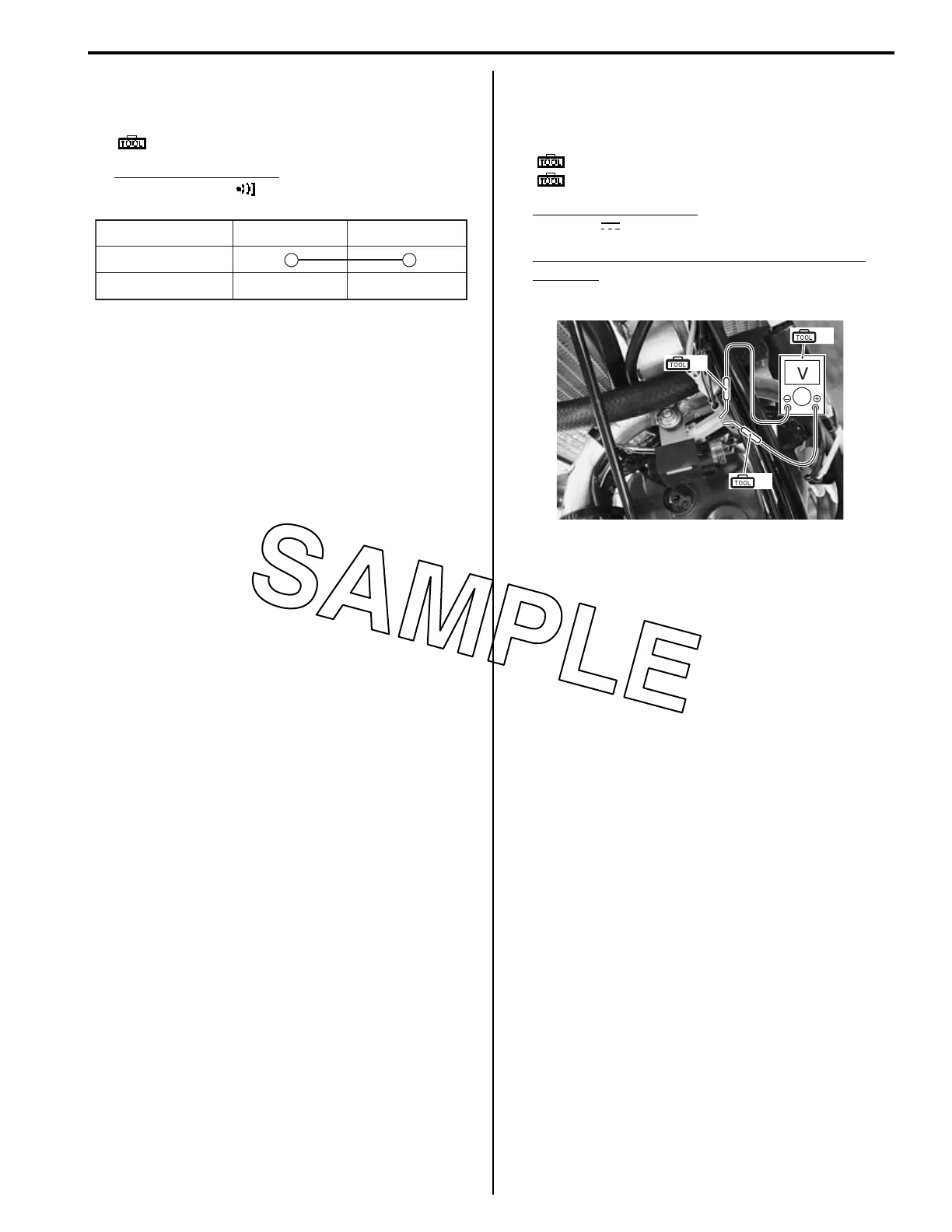

Starting System: 1I-8
3) Check the continuity between Bl and B lead wires
with the transmission in neutral.
Special tool
: 09900–25008 (Multi circuit tester set)
Tester knob indication
Continuity test ( )
4) Connect the gear position switch lead wire coupler to
the wiring harness.
5) Insert the needle-point probes to the lead wire
coupler.
6) Turn on the ignition switch.
7) Measure the voltage between P and B/W lead wires
using the multi circuit tester when shifting the
gearshift lever from 1st to top.
Special tool
(A): 09900–25008 (Multi circuit tester set)
(B): 09900–25009 (Needle-point probe set)
Tester knob indication
Voltage ( )
Gear position switch voltage (Except neutral
position)
0.6 V and more ((+) P – (–) B/W)
8) Turn off the ignition switch.
9) Install the removed parts.
ON (Neutral)
OFF (Except neutral)
BI B/W
I947H1190030-01
(B)
(B)
(A)
IA02J1190014-02

Suzuki RMX450Z Specifications

General

Displacement	449cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	96.0 mm x 62.1 mm
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Fuel Tank Capacity	6.2 L (1.6 US gal)
Overall Length	2185 mm (86.0 in)
Ground Clearance	325mm
Seat Height	955mm
Wheelbase	1, 480mm
