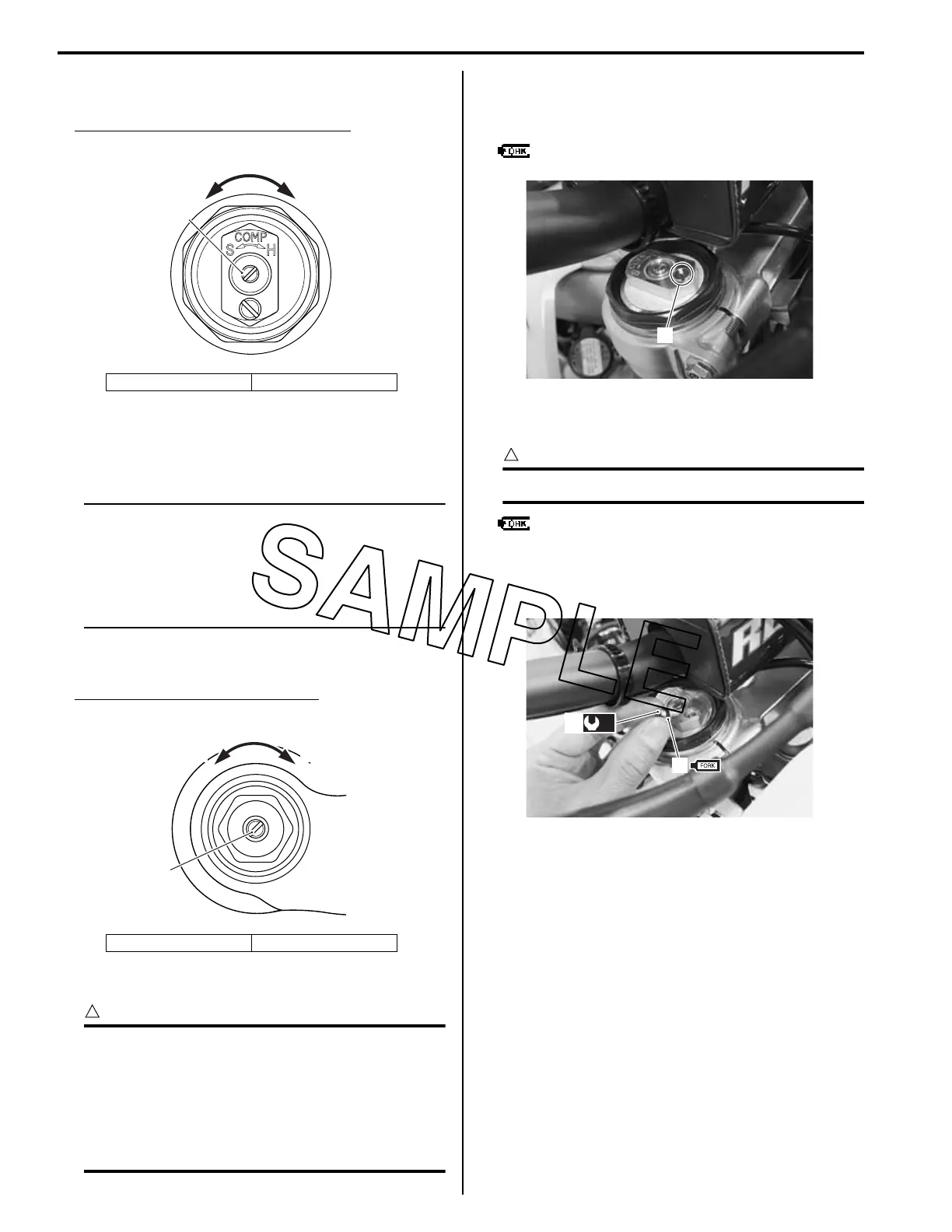

2B-13 Front Suspension:
• Turn the adjust screw (1) counterclockwise and the
8th click is the standard position.
Compression damping force adjuster
Standard setting: 8 clicks turn back
Rebound Damping Force Adjustment
• Turn the adjuster screw clockwise until it stops (full
hard position).
NOTE
To set the adjuster, you must gently turn the
adjuster screw clockwise until it stops, then
back it out the recommended number of
turns. Do not force the adjuster screw past
the stopped position or you may damage the
adjuster.
• Turn the adjust screw (1) counterclockwise and the
8th click is the standard position.
Rebound damping force adjuster
Standard setting: 8 clicks turn back
Oil Quantity Minor Adjustment
CAUTION
!
The fork oil quantity must be adjusted
equally on both fork legs to provide equal
performance. Operating the motorcycle with
the fork oil quantity unevenly adjusted can
cause handling instability. Never mix
different types of fork oil. Different oils may
cause chemical reaction and deteriorate.
Adding the fork oil
• Remove the air bleeder valve (1).
• Add the fork oil with a injector from the air bleed hole.
: Fork Oil (FORK OIL SS-19 or equivalent)
• Apply fork oil to the O-ring (2) and tighten the air
bleeder valve (1) to the specified torque.
CAUTION
!
Replace the O-ring (2) with a new one.
: Fork Oil (FORK OIL SS-19 or equivalent)
Tightening torque
Air bleeder valve (a): 1.3 N·m (0.13 kgf-m, 1.0 lbf-
ft)
“a”: Soft “b”: Hard
“a”: Soft “b”: Hard
1
“a” “b”
IA02J1220055-02
1
“a” “b”
IA02J1220056-02
1
IA02J1220057-01
(a)
1
2
IA02J1220058-01
To Next Page
