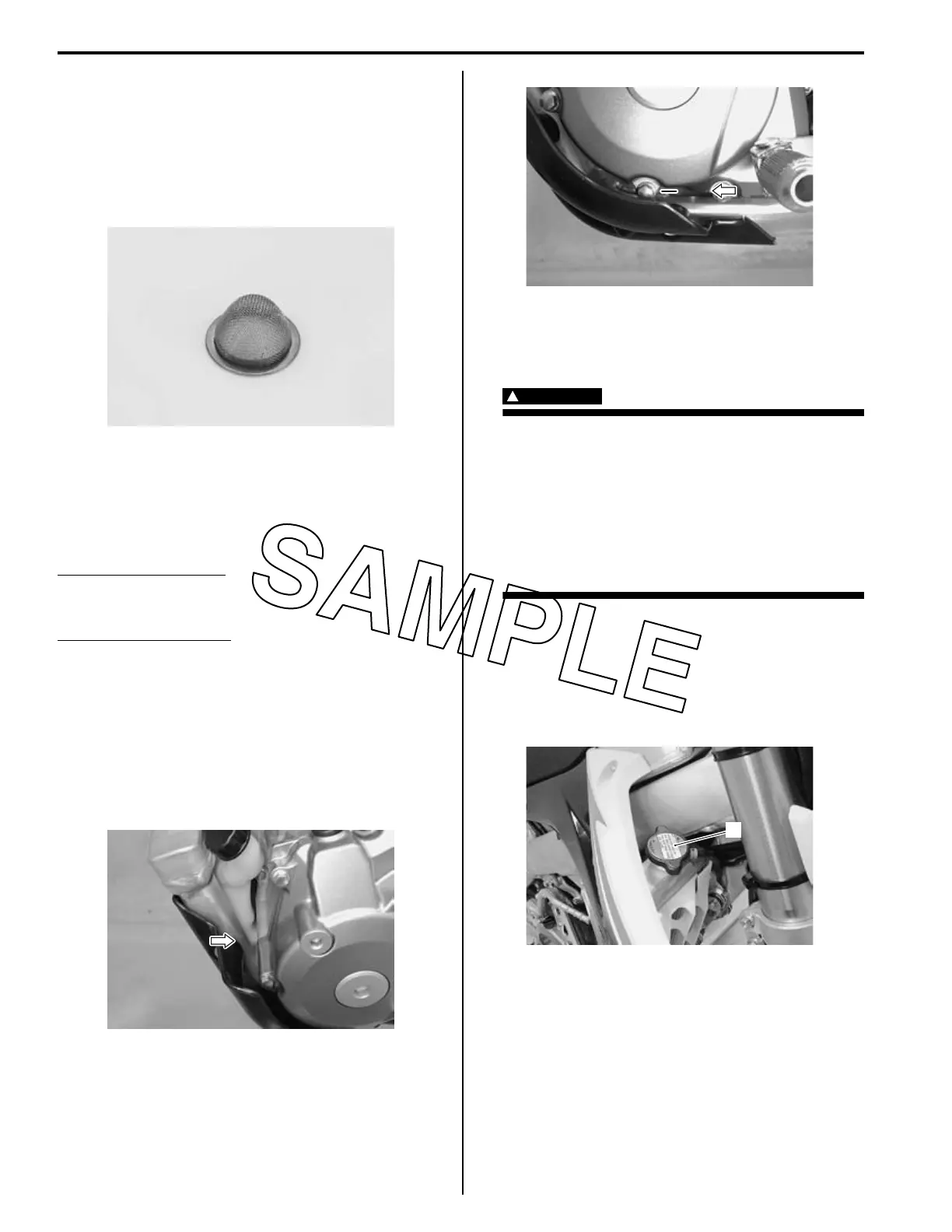

0B-9 Maintenance and Lubrication:
Oil Pump No. 2 Strainer Inspection
1) Remove the oil pump No. 2 strainer. Refer to “Oil
Pump No. 2 Removal and Installation” in Section 1E
(Page 1E-5).
2) Inspect the oil pump No. 2 strainer for clogging or
any damage. If necessary, clean it with compressed
air or replace it with a new one.
3) Install the oil pump No. 2 strainer and oil pump No. 2.
Refer to “Oil Pump No. 2 Removal and Installation”
in Section 1E (Page 1E-5).
Cooling System Inspection
BA02J20206008
Inspect engine coolant
Initially at 150 km (100 miles, 1 month) and every 2
000 km (1 200 miles, 12 months)
Replace engine coolant
Every years
Engine Coolant Level Inspection
1) Hold the motorcycle in an upright position on a level
surface.
2) Check the engine coolant level by observing the full
and lower lines on the engine coolant reservoir tank.
If the level is below the lower line, add engine
coolant to the full line.
Engine Coolant Replacement
Refer to “Engine Coolant Description” in Section 1F
(Page 1F-2).
WARNING
!
Do not open the radiator cap when the engine
is hot, as you may be injured by escaping hot
liquid or vapor. Engine coolant may be
harmful if swallowed or if it comes in contact
with skin or eyes. If engine coolant gets into
the eyes or in contact with the skin, flush
thoroughly with plenty of water. If swallowed,
induce vomiting and call physician
immediately.
1) Hold the motorcycle in an upright position on a level
surface.
2) Remove the protector. Refer to “Exterior Parts
Removal and Installation” in Section 9D (Page 9D-
1).
3) Remove the radiator cap (1).
IA02J1020015-01
FF
IA02J1020095-02
LL
IA02J1020096-01
1
IA02J1020017-01
To Next Page
