Suzuki RMX450Z Service Manual

5B-10 Manual Transmission:

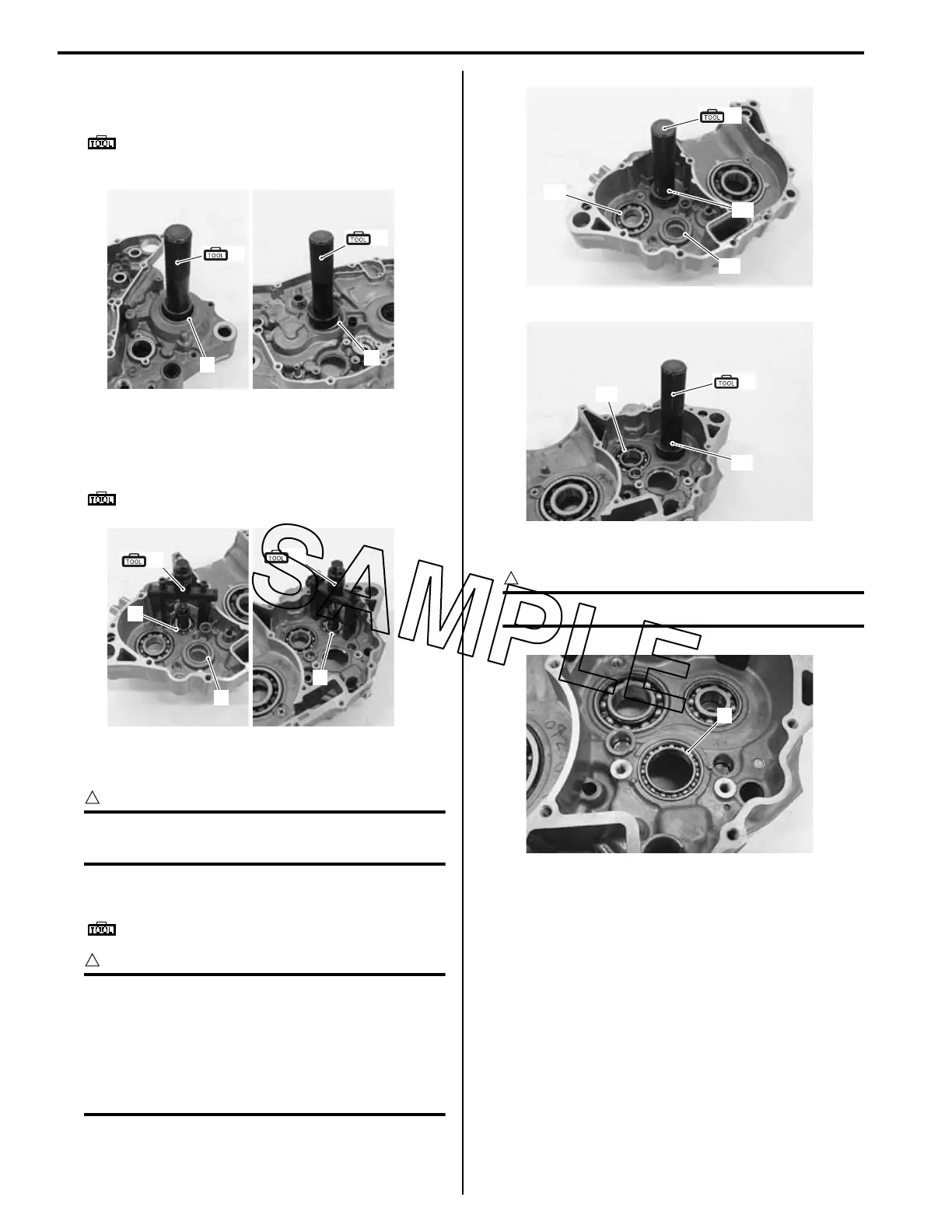

5) Remove the left driveshaft bearing (4) and right
countershaft bearing (5) using the special tool.
Special tool
(B): 09913–70210 (Bearing installing set (10
– 75 Φ))
6) Remove the left countershaft bearing (6), left
gearshift cam bearing (7) and right driveshaft
bearing (8) using the special tool.
Special tool
(C): 09921–20240 (Bearing remover set)
Installation
CAUTION
!
The removed bearings and oil seal must be
replaced with new ones.
1) Install the bearings using the special tool.
Special tool
(A): 09913–70210 (Bearing installer set)
CAUTION
!
• The stamped mark side of bearing “A”
faces inside.
• The sealed side of the bearing “B” faces
outside.
• The stepped side of the bearing “C” faces
inside.
2) Install the right gearshift cam bearing (1).
CAUTION
!
The sealed side of bearing faces outside.
(B)
(B)
4
5
IA02J1520017-02
6
7
8
(C)
(C)
IA02J1520018-01
(A)
“A”
“C”
“B”
IA02J1520019-01
(A)
“B”
“B”
IA02J1520020-01
1
IA02J1520021-01

Suzuki RMX450Z Specifications

General

Displacement	449cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	96.0 mm x 62.1 mm
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Fuel Tank Capacity	6.2 L (1.6 US gal)
Overall Length	2185 mm (86.0 in)
Ground Clearance	325mm
Seat Height	955mm
Wheelbase	1, 480mm
