Steering / Handlebar: 6B-4

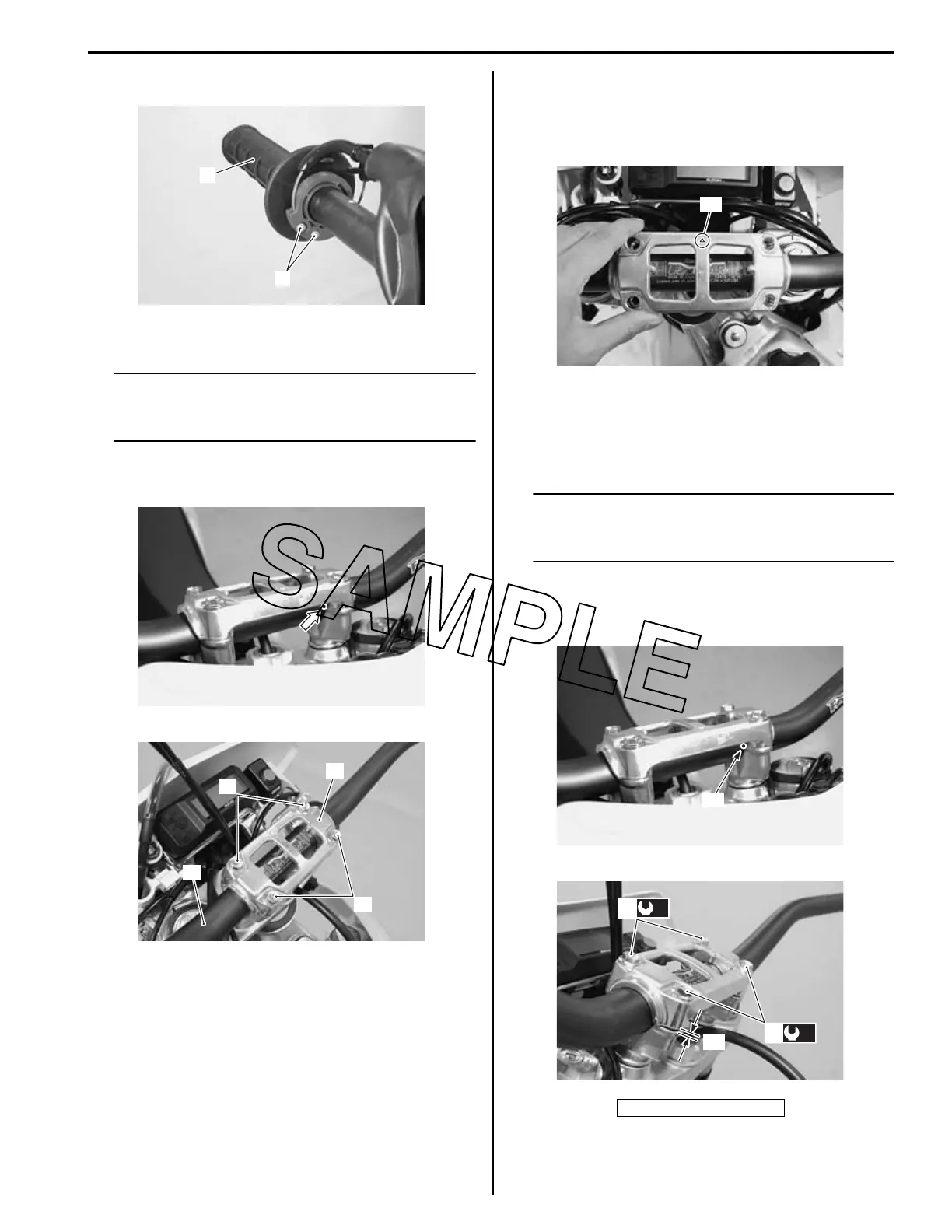

7) Remove the throttle cables (8) and throttle grip (9).
8) Remove the handlebar clamp bolts (10).
NOTE
Mark the paint mark to the matching surface
of handlebar holder and handlebars before
removing.
9) Remove the handlebar holder (11) and handlebars
(12).
Installation
Install the handlebars in the reverse order of removal.
Pay attention to the following points:
• Set the mark “A” on the handlebar holder forward.
• Align the paint mark “B” on the handlebars with the
mating surface of handlebar holder.
• First tighten the bolts (1) to the specified torque and
then tighten the bolts (2) to the specified torque.
NOTE
The higher portion of handlebar holder must
face forward, so that the clearance “a” of
holder is in back of the handlebars.
Tightening torque
Handlebar clamp bolt (a): 25 N·m (2.5 kgf-m, 18.0
lbf-ft)
