Suzuki RMX450Z Service Manual

9A-6 Wiring Systems:
1
(c)
“a”
(a)
(b)
“A”
(d)
4
6
4
7
5
6
8
(f)
(e)
2
33
IA02J1910906-04

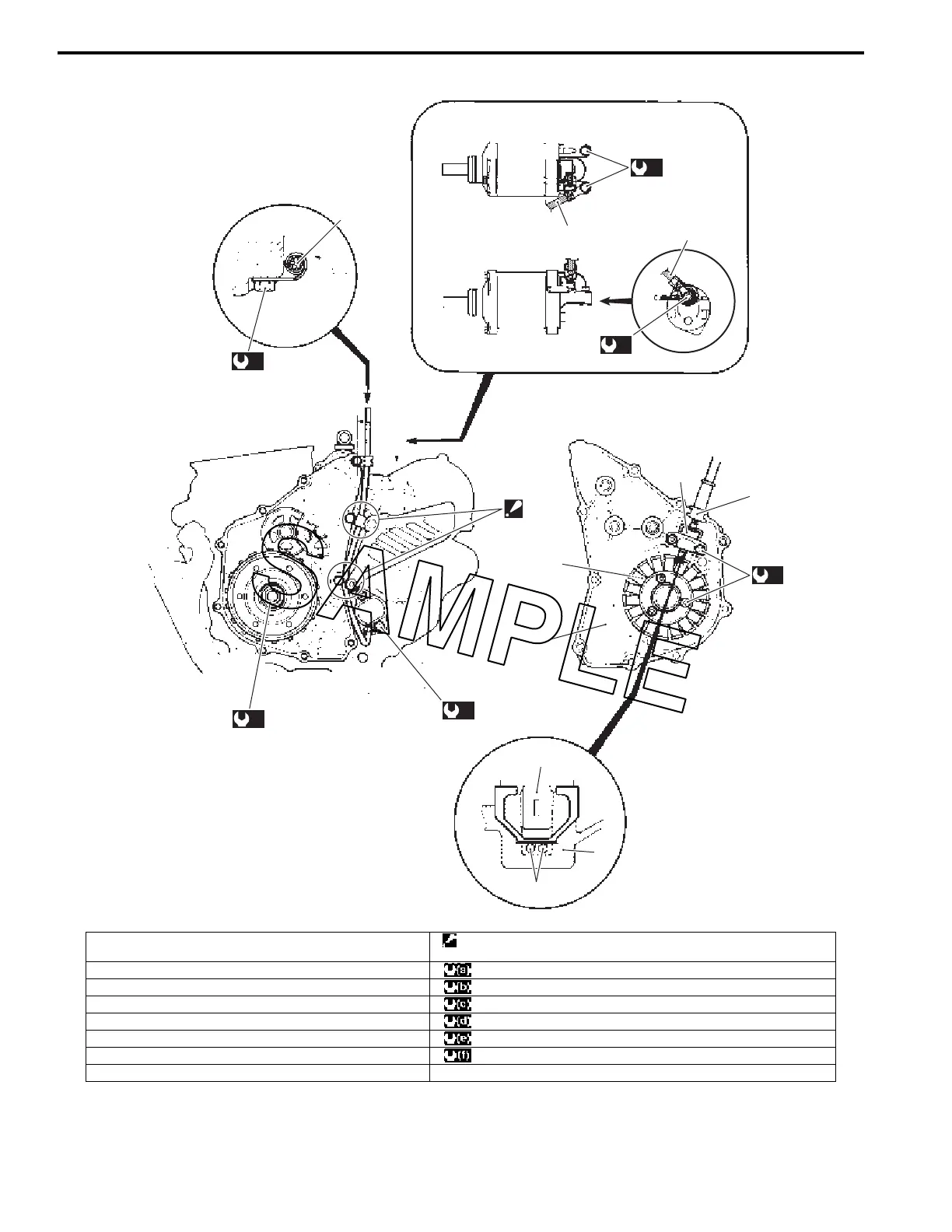

1. Gear position switch lead wire “A”: Pass the gear position switch lead wire between the engine sprocket
cover and crankcase.
2. Starter motor lead wire : 100 N⋅m (10.0 kgf-m, 72.5 lbf-ft)
3. Battery (–) lead wire : 6.5 N⋅m (0.65 kgf-m, 4.7 lbf-ft)
4. Magneto cover : 11 N⋅m (1.1 kgf-m, 8.0 lbf-ft)
5. Crankshaft rotation signal sensor : 10 N⋅m (1.0 kgf-m, 7.0 lbf-ft)
6. CKP sensor : 6 N⋅m (0.6 kgf-m, 4.5 lbf-ft)
7. Magneto and crankshaft rotation signal sensor lead wires : 5.5 N⋅m (0.55 kgf-m, 4.0 lbf-ft)
8. Grommet

Suzuki RMX450Z Specifications

General

Displacement	449cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Engine Type	4-stroke, liquid-cooled, DOHC
Bore x Stroke	96.0 mm x 62.1 mm
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	80/100-21
Fuel Tank Capacity	6.2 L (1.6 US gal)
Overall Length	2185 mm (86.0 in)
Ground Clearance	325mm
Seat Height	955mm
Wheelbase	1, 480mm
