Toro Groundsmaster 4500-D Series User Manual

CuttingDeckMotorService
g308863

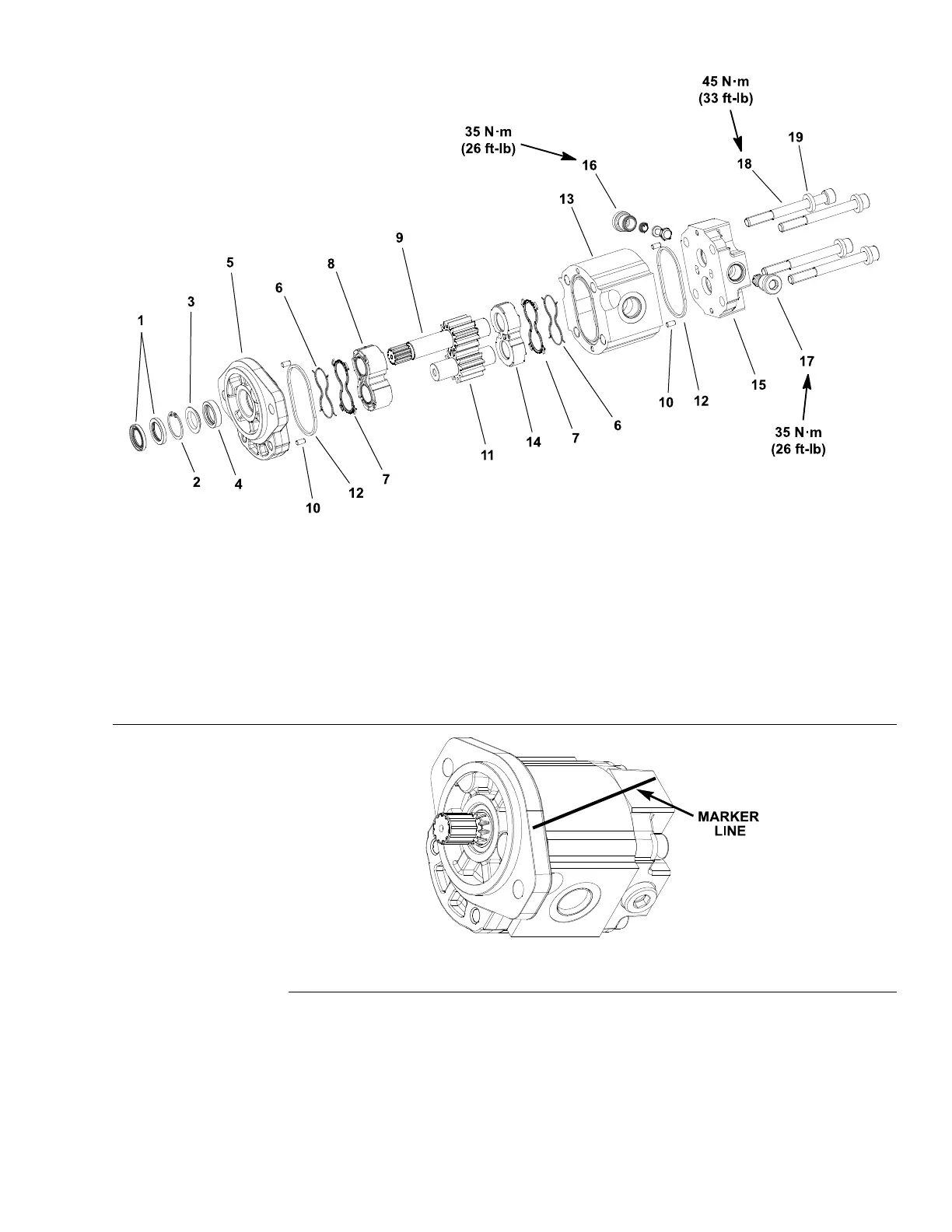

Figure119
1.Dustseal(2used)
8.Frontwearplate15.Rearcover
2.Retainingring9.Drivegear
16.Anti-cavitationvalve
3.Flangewasher
10.Dowelpin(4used)
17.Reliefvalve
4.Shaftseal
11.Idlergear
18.Capscrew(4used)
5.Frontange12.O-ring19.Washer(4used)
6.Pressureseal13.Body
7.Backupgasket14.Rearwearplate
g308864
Figure120
Disassembly(Figure119)
1.Plugmotorportsandcleantheoutsideofthemotorthoroughly.After
cleaning,removeplugsanddrainanyoiloutofthemotor.
2.Useamarkertomakeadiagonallineacrossthefrontange,bodyandrear
coverforassemblypurposes(Figure120).
Groundsmaster
®
4500-D/4700-D
Page5–125
HydraulicSystem:ServiceandRepairs
19245SLRevA
