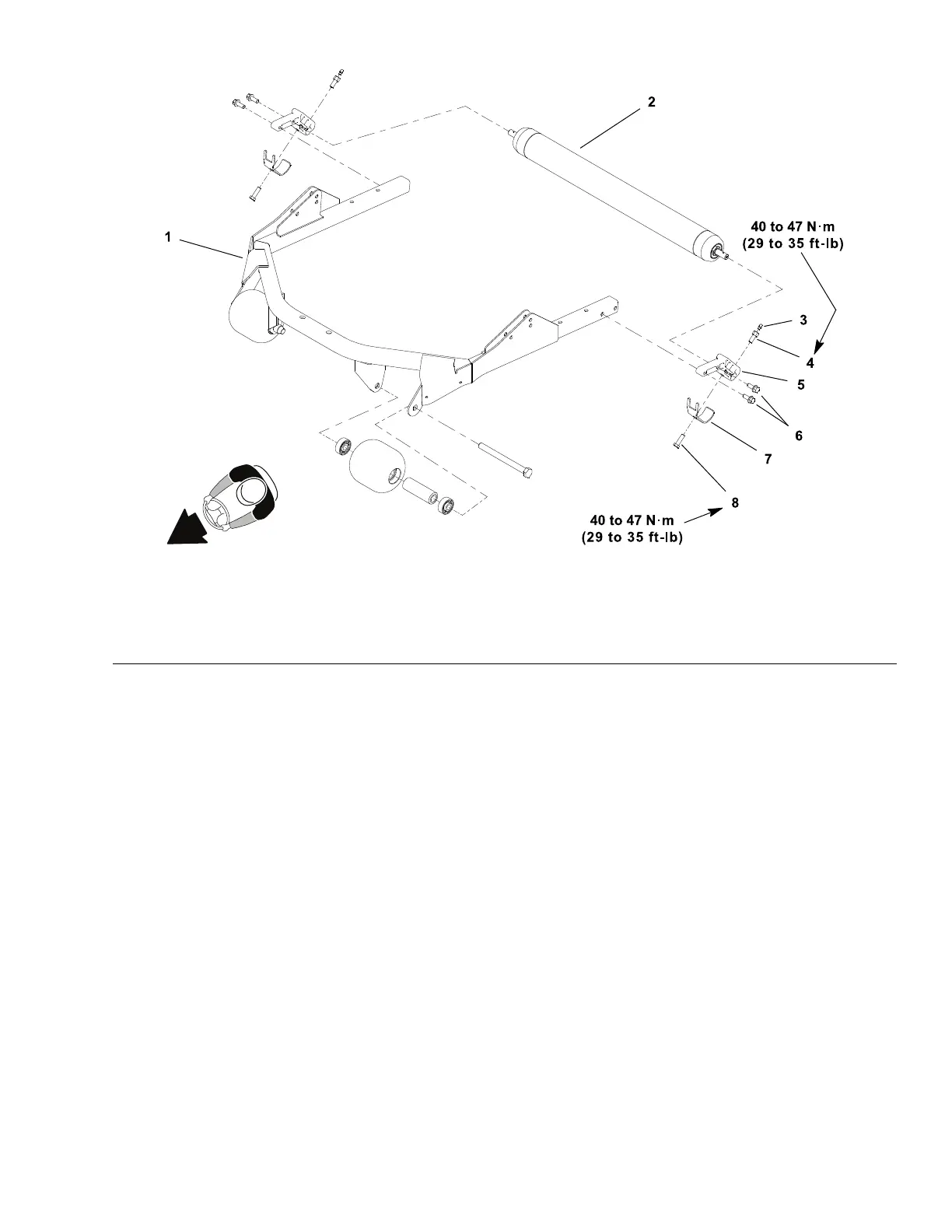

RearRoller
g310607
Figure304
1.Deckframe4.Rollershaftscrew7.Skidbracket
2.Rearrollerassembly5.Rollermount
8.Capscrew
3.Greasetting
6.Flangeheadscrew
Removal(Figure304)
1.Parkmachineonalevelsurface,lowercuttingdecks,stopengine,engage
parkingbrakeandremovekeyfromtheignitionswitch.
2.Ifcuttingdeckisequippedwitharollerscraper(Figure305),remove
fastenerssecuringleftandrightscraperrodbracketstorollermounts.
Removescraperrodassembly.
Groundsmaster
®
4500-D/4700-D
Page9–11
CuttingDecks:ServiceandRepairs
19245SLRevA
