ServiceandRepairs
SteeringColumn
g308910

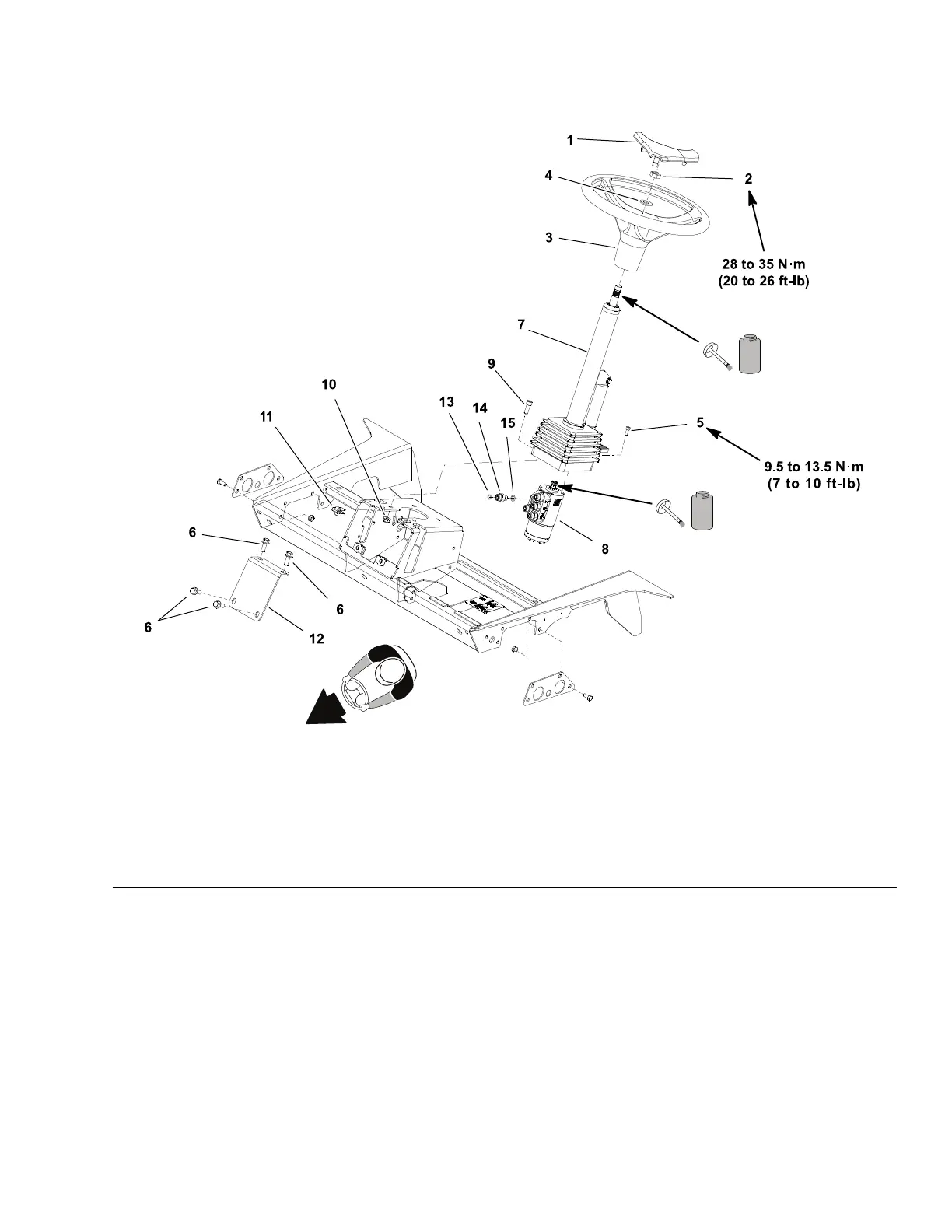

Figure277
1.Steeringwheelcover6.Flangeheadscrew(4used)11.Tinnermannut(4used)
2.Locknut
7.Steeringcolumn12.Columnbrace
3.Steeringwheel8.Steeringcontrolvalve13.O-ring
4.Flatwasher
9.Socketheadscrew(4used)14.Straighttting(5used)
5.Socketheadscrew(4used)10.Flangenut(4used)15.O-ring
Removal(Figure277)
1.Parkthemachineonalevelsurface,engagetheparkingbrake,lowerthe
cuttingdecksandstoptheengine.Removethekeyfromtheignitionswitch.
2.Removeplatformshroudfrommachinetoallowaccesstosteeringcolumn
fasteners(Figure278).
Groundsmaster
®
4500-D/4700-D
Page8–3
Chassis:ServiceandRepairs
19245SLRevA
