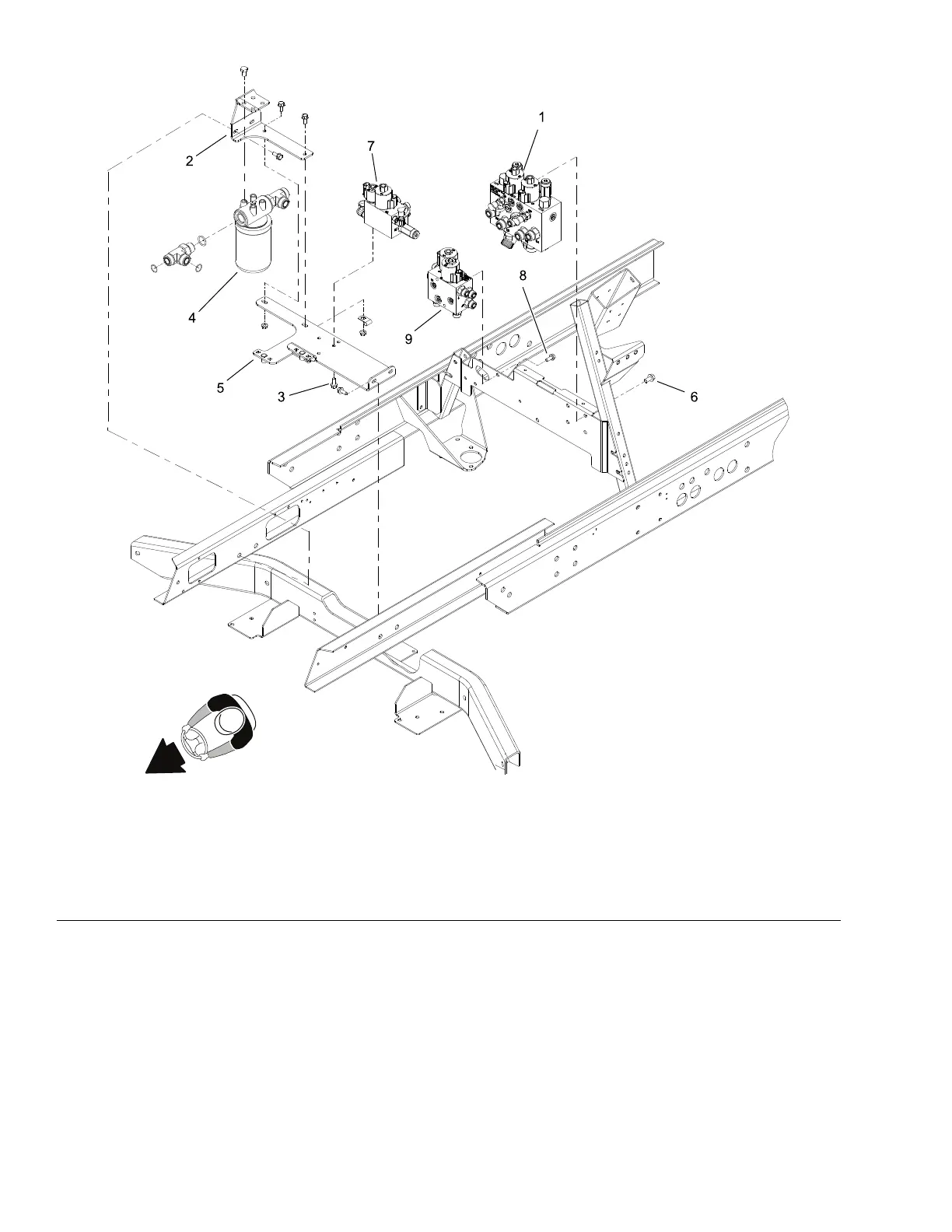

DeckControlManifold
g308889
Figure123
GROUNDSMASTER4500-DSHOWN
1.Deckcontrolmanifold4.Hydraulicoillterassembly7.Liftcontrolmanifold
2.Filtermountbracket5.Valvemountbracket
8.Flangeheadscrew(2used)
3.Flangeheadscrew(2used)6.Flangeheadscrew(2used)9.Fandrivemanifold
Note:ThedeckcontrolmanifoldsusedonGroundsmaster4500-Dand4700-D
aredifferentbuttheymounttothemachineinthesamelocation.Thecontrol
manifoldsusedontheGroundsmaster4500-DareshowninFigure123.
Removal(Figure123)
Note:Theportsonthedeckcontrolmanifoldaremarkedforeasyidentication
ofcomponents.Example:P1isthegearpumpconnectionport(seeAppendixA
(pageA–1)).
1.Parkmachineonalevelsurface,lowercuttingdecks,stopengine,apply
parkingbrakeandremovekeyfromtheignitionswitch.
HydraulicSystem:ServiceandRepairs
Page5–130
Groundsmaster
®
4500-D/4700-D
19245SLRevA
