OperatorSeat
g310565

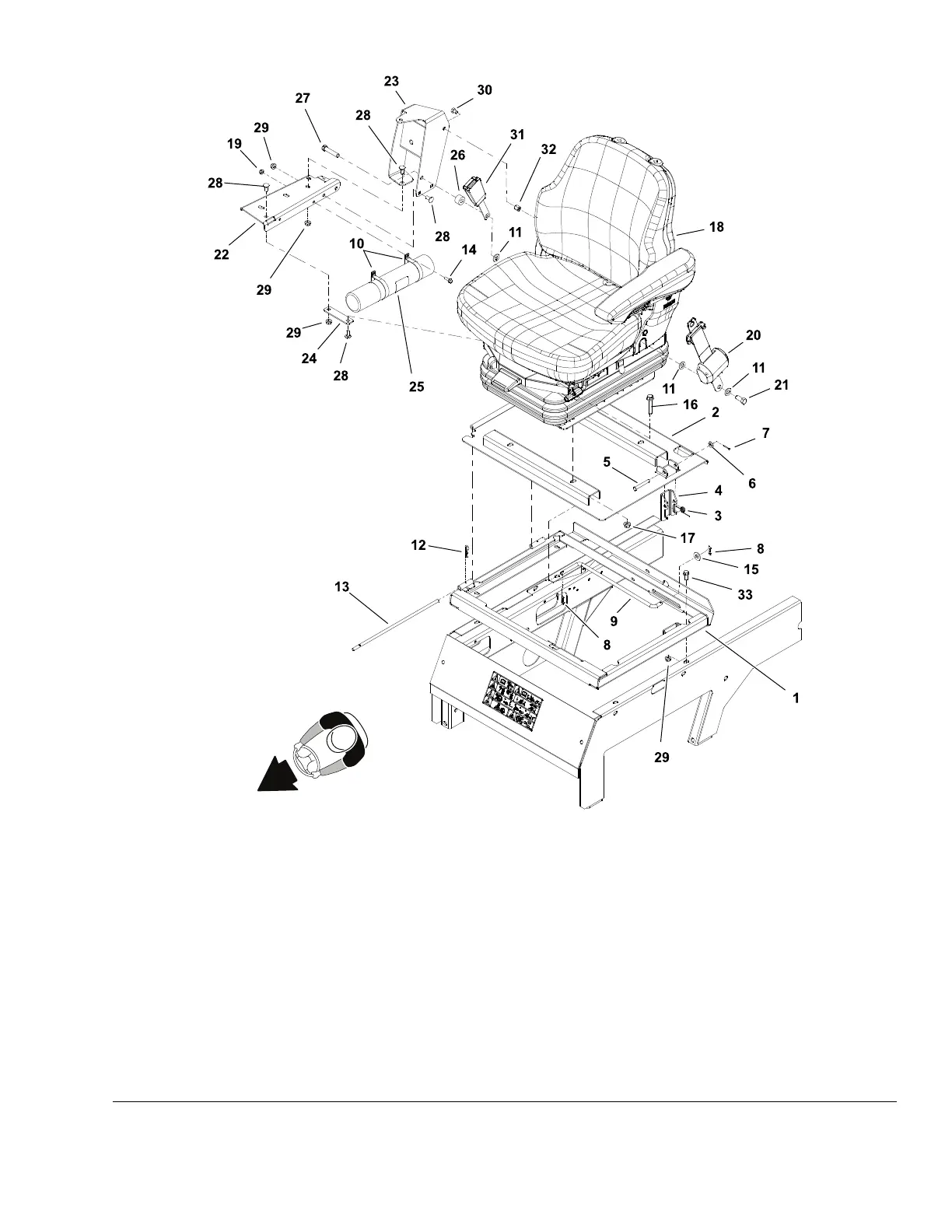

Figure292
1.Seatframe
12.Hairpin23.Armsupport
2.Seatplate13.Seatpivotshaft24.Supportbracket
3.T orsionspring
14.Screw(2used)
25.Manualtube
4.Seatplatelatch15.Flatwasher(2used)26.Spacer
5.Clevispin16.Flangeheadscrew(4used)27.Capscrew
6.Flatwasher
17.Flangenut(4used)28.Carriagescrew(6used)
7.Cotterpin18.Seatassembly29.Flangenut(9used)
8.Hairpin(4used)19.Flangenut(2used)30.Capscrew
9.Seatframerod(2used)20.Seatbelt31.Seatbeltlatch
10.R-clamp(2used)21.Capscrew
32.Hexnut
11.Flatwasher(3used)22.Supportchannel33.Flangeheadscrew(4used)
Groundsmaster
®
4500-D/4700-D
Page8–19
Chassis:ServiceandRepairs
19245SLRevA
