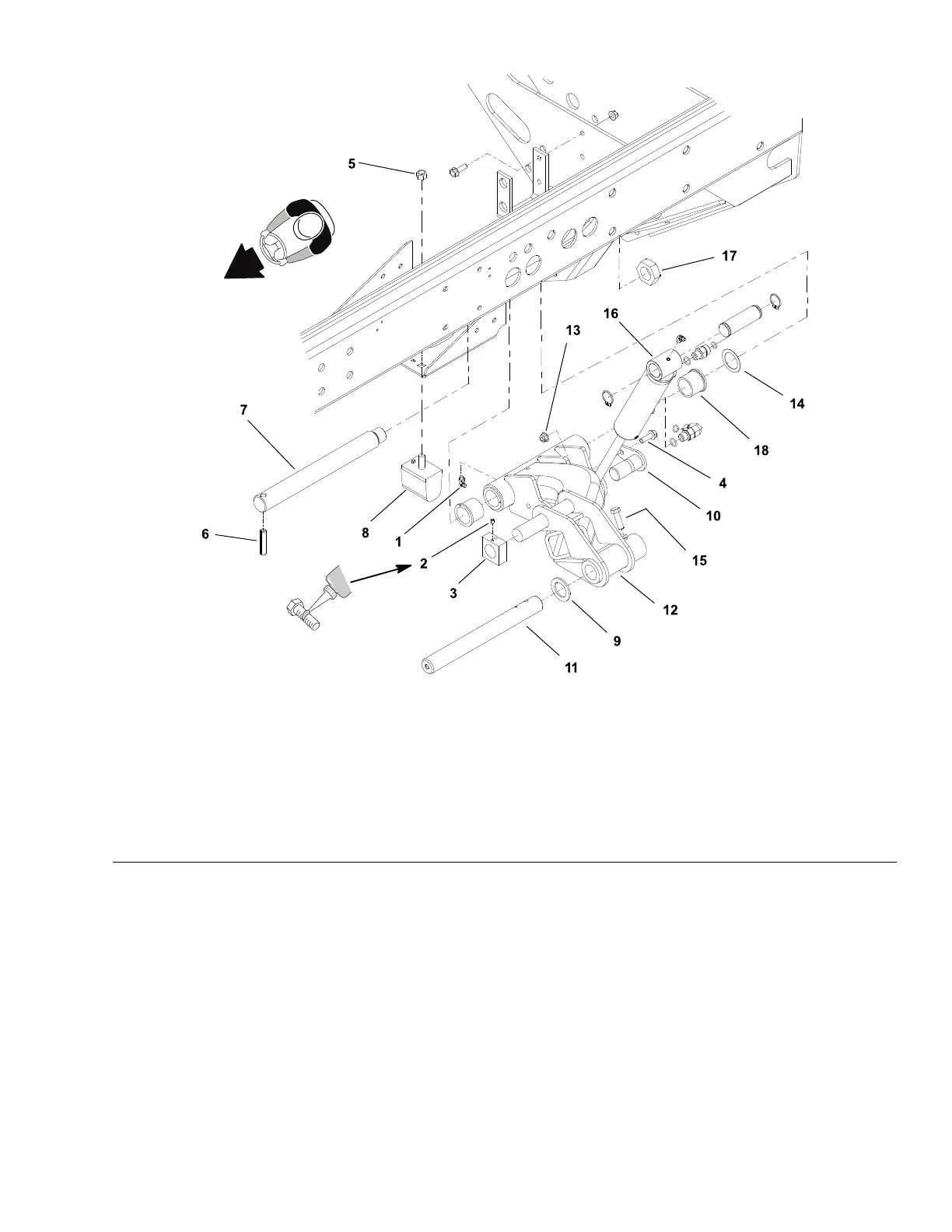

LiftArmsforCuttingDecks#2and#3
g310535
Figure288
1.Greasetting
7.Pivotpin13.Flangenut
2.Setscrew(2usedperstop)
8.Bumper14.Thrustwasher
3.Rotationstop9.Thrustwasher
15.Capscrew
4.Flangeheadscrew
10.Liftcylinderpin16.Liftcylinder
5.Locknut
11.Deckpivotshaft
17.Locknut
6.Slottedrollpin12.Liftarm(#2deckshown)18.Flangebushing(2usedperarm)
Removal(Figure288)
1.Parkmachineonalevelsurface,lowercuttingdecks,stopengine,engage
parkingbrakeandremovekeyfromtheignitionswitch.
2.Removecuttingdeckfromliftarm(seeCuttingDeckOperator’sManual).
Groundsmaster
®
4500-D/4700-D
Page8–15
Chassis:ServiceandRepairs
19245SLRevA
