Engine
g307774

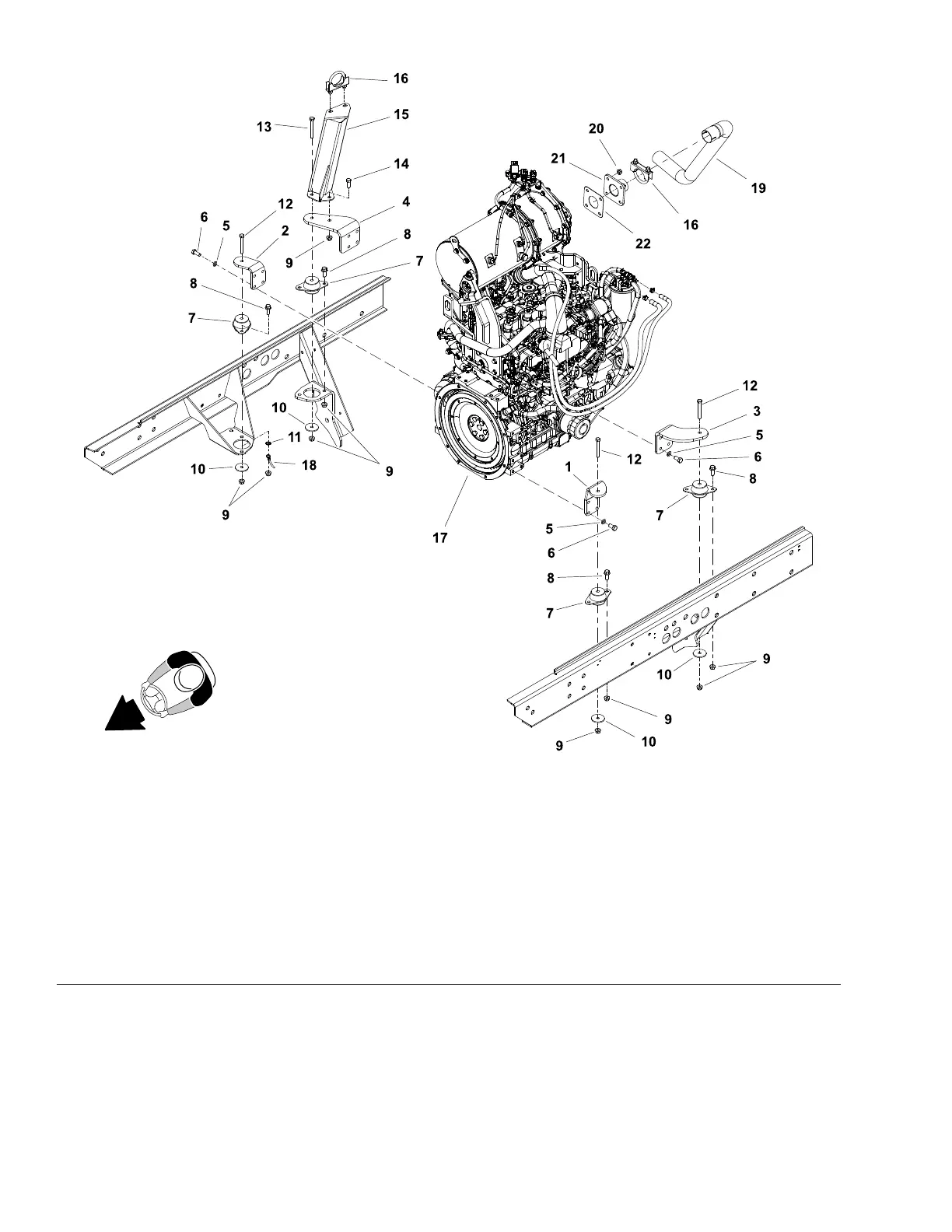

Figure19
1.LHfrontenginemountbracket9.Flangenut(13used)
17.Engine
2.RHfrontenginemountbracket10.Reboundwasher(4used)
18.Negativebatterycable
3.LHrearenginemountbracket11.Lockwasher19.T ailpipe
4.RHrearenginemountbracket
12.Capscrew(3used)20.Flangenut(4used)
5.Lockwasher(16used)13.Capscrew21.Exhaustange
6.Capscrew(16used)
14.Capscrew
22.Exhaustgasket
7.Enginemount(4used)
15.T ailpipesupportbracket
8.Flangeheadscrew(8used)16.Clamp
EngineRemoval(Figure19)
1.Parkmachineonalevelsurface,lowercuttingdecks,stopengine,engage
parkingbrakeandremovekeyfromtheignitionswitch.
2.Removehoodfromthemachine(seeHood(page8–26)).
3.Removebatterycover.Disconnectnegativebatterycablefromthebattery
rstandthendisconnectpositivebatterycable.
YanmarDieselEngine:ServiceandRepairs
Page4–20
Groundsmaster
®
4500-D/4700-D
19245SLRevA
