ServiceandRepairs
CAUTION
Neverinstallorworkonthecuttingdecksorliftarmswiththeengine
running.Alwaysstopengineandremovekeyfromignitionswitch
rst.

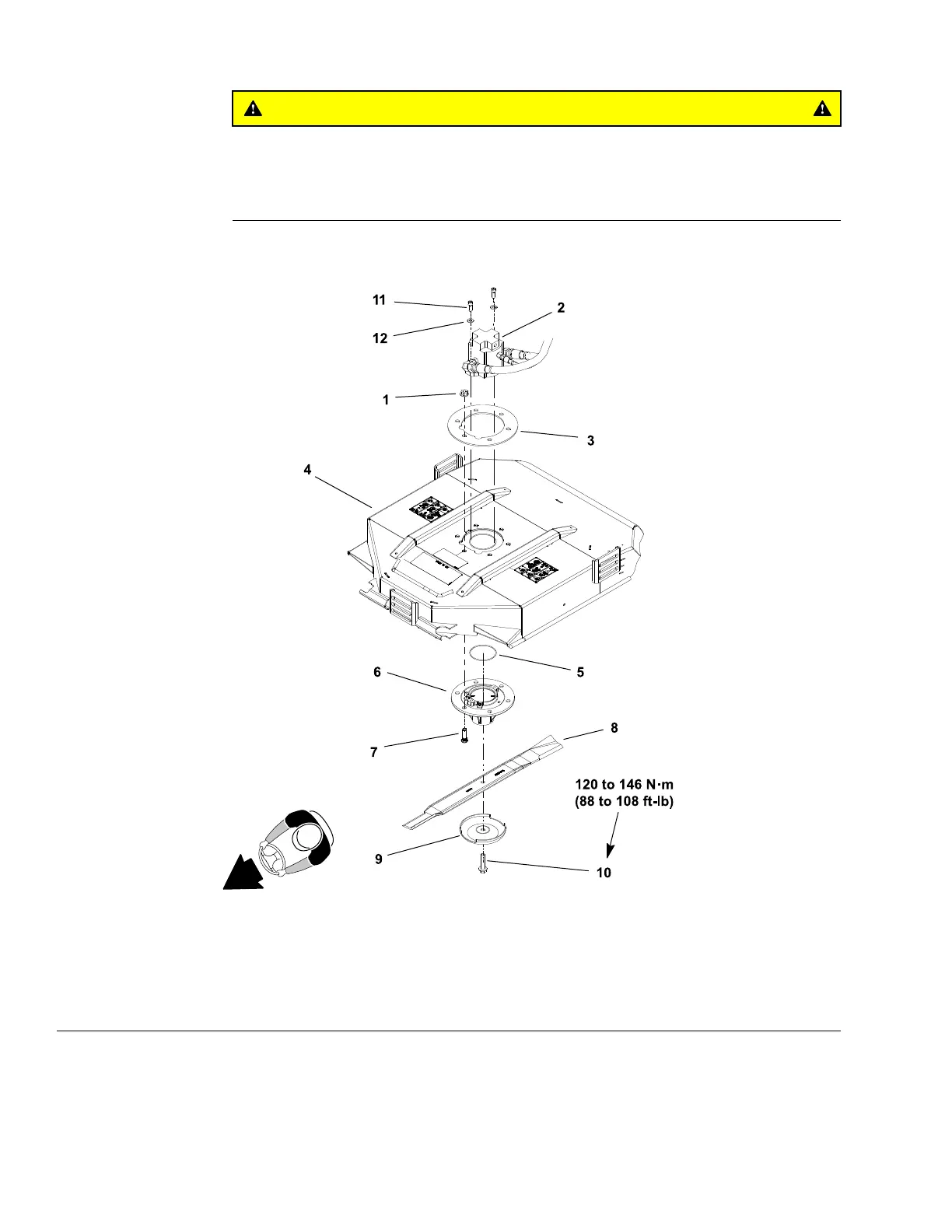

BladeSpindleAssembly
g310580
Figure298
1.Flangenut(6used)5.O-ring
9.Anti-scalpcup
2.Hydraulicdeckmotor
6.Spindleassembly
10.Bladebolt
3.Spindleplate7.Drivestud(6used)11.Socketheadscrew(2used)
4.Cuttingdeck8.Cuttingblade12.Flatwasher(2used)
CuttingDecks:ServiceandRepairs
Page9–4
Groundsmaster
®
4500-D/4700-D
19245SLRevA
