RearRollerService
g310671

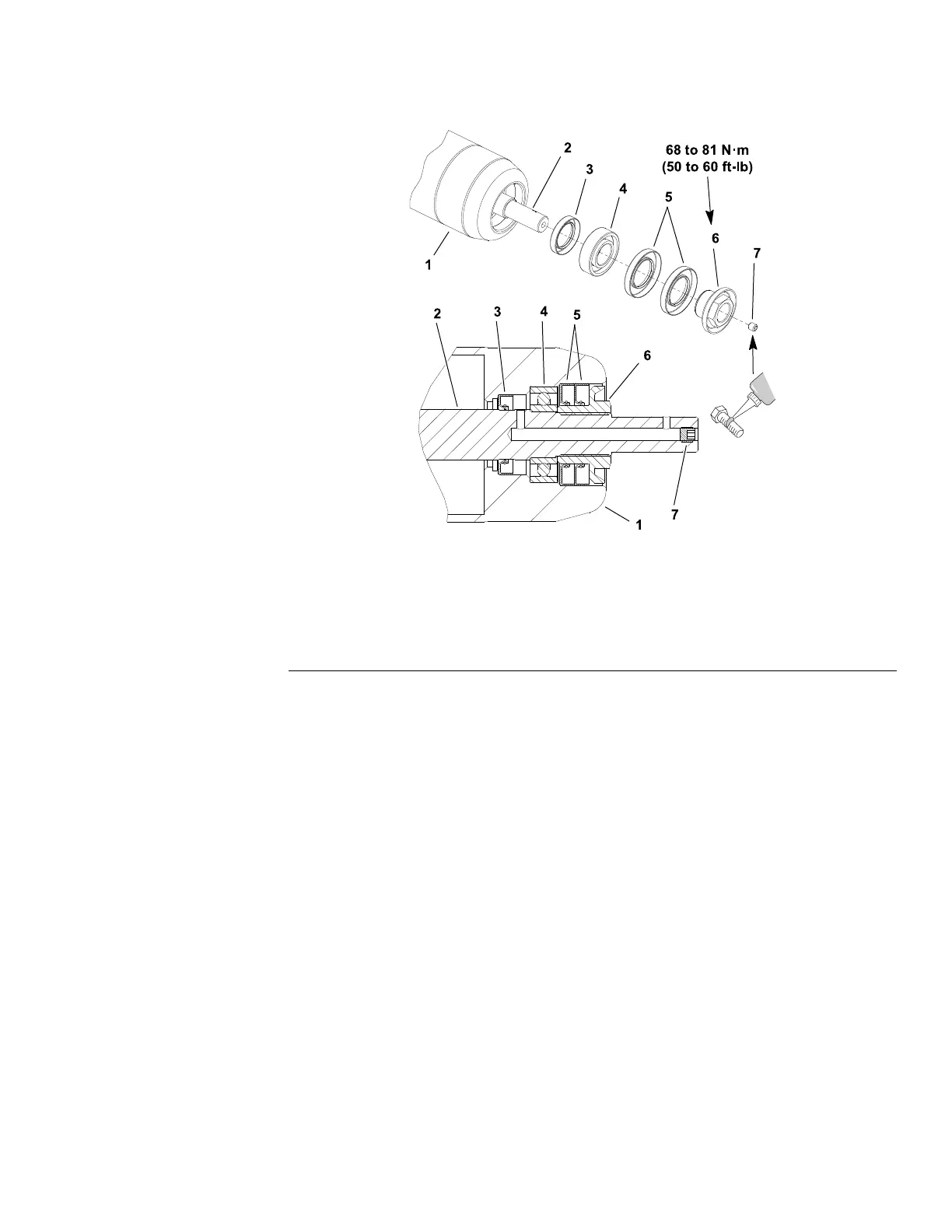

Figure306
1.Rollertube
5.Outerseal
2.Rollershaft
6.Bearinglocknut
3.Innerseal
7.Setscrew
4.Bearing
Disassembly(Figure306)
1.Removebearinglocknutfromeachendofrollershaft.
2.Looselysecurerollerassemblyinbenchviseandlightlytaponeendofroller
shaftuntiloutersealsandbearingareremovedfromoppositeendofroller
tube.Removesecondsetofoutersealsandbearingfromrollertubeby
tappingonoppositeendofshaft.Removeshaftfromrollertube.
3.Carefullyremoveinnersealfrombothendsofrollertubetakingcaretonot
damagetubesurfaces.
4.Discardremovedsealsandbearings.
5.Cleanrollershaftandallsurfacesontheinsideoftherollertube.Inspect
componentsforwearordamage.Also,carefullyinspectseatingsurfaceand
threadsofbearinglocknuts.Replacealldamagedcomponents.
Groundsmaster
®
4500-D/4700-D
Page9–13
CuttingDecks:ServiceandRepairs
19245SLRevA
