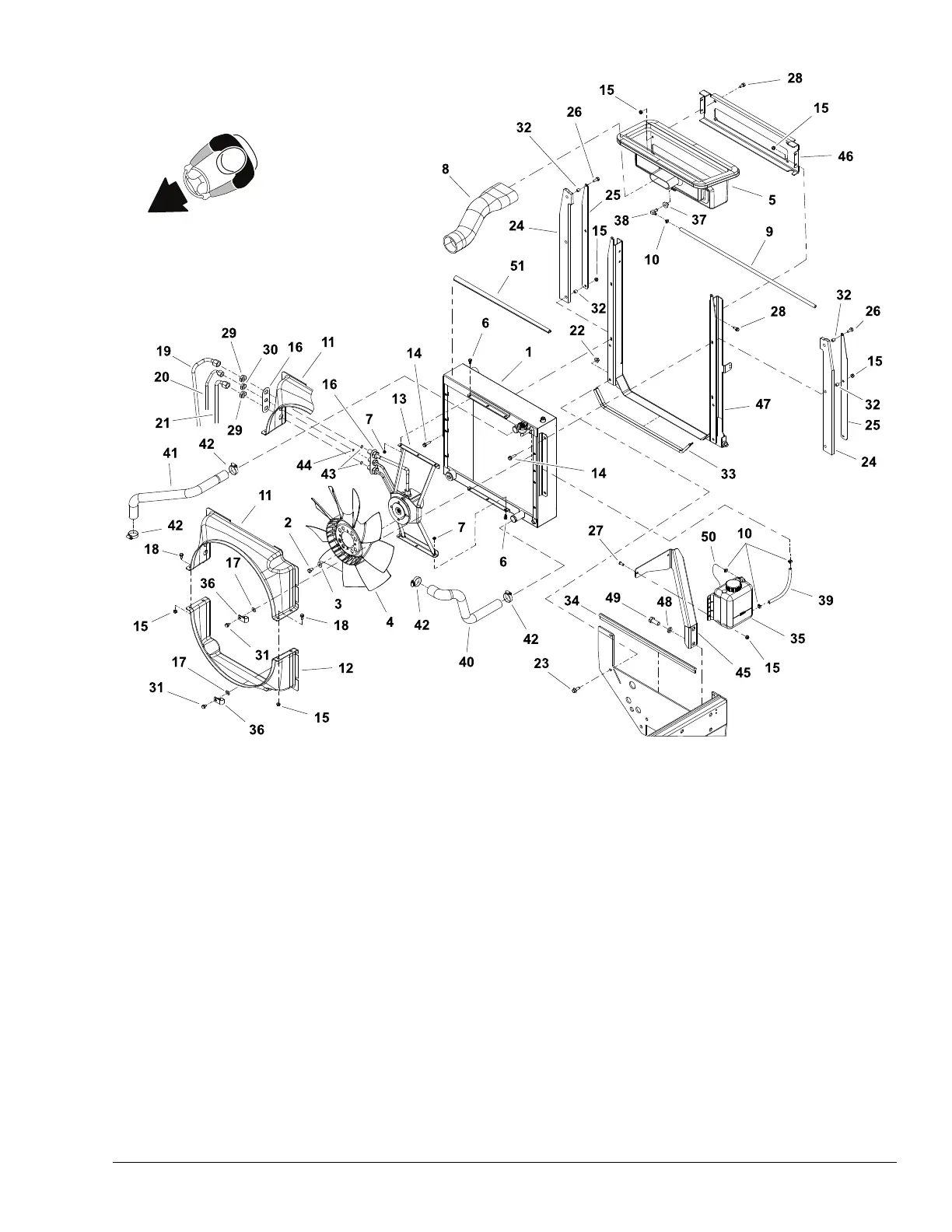

RadiatorandOilCoolerAssembly
g307729
Figure16
1.Radiator/oilcoolerassembly18.Flangeheadscrew(4used)35.Coolantreservoir
2.Capscrew(4used)
19.Hydraulictube
36.R−clamp(2used)
3.Washer(4used)
20.Hydraulictube37.Bushing
4.Fan21.Hydraulictube
38.Elbowtting
5.Plenumassembly
22.Flangenut(4used)
39.Hose
6.Capscrew(6used)23.Flangeheadscrew(4used)
40.Lowerradiatorhose
7.Flangenut(6used)24.Hoodseal(2used)
41.Upperradiatorhose
8.Airintakehose
25.Hoodsealbracket(2used)42.Hoseclamp(4used)
9.Hose
26.Screw(2used)43.O−ring
10.Hoseclamp(4used)27.Screw(2used)44.O−ring
11.Upperradiatorshroud
28.Flangeheadscrew(12used)
45.Mountbracket
12.Lowerradiatorshroud
29.Bulkheadnut(2used)46.Crossoverplate
13.Fanmotorandbracketassembly30.Bulkheadnut47.Radiatormount
14.Flangeheadscrew(4used)31.Flangeheadscrew(8used)48.Lockwasher(2used)
15.Flangenut(22used)32.Spacer(6used)49.Capscrew(2used)
16.Shim(2used)
33.Bulbseal50.Hose
17.Flatwasher(8used)
34.Bulbseal51.Bulbseal
Groundsmaster
®
4500-D/4700-D
Page4–15
YanmarDieselEngine:ServiceandRepairs
19245SLRevA
