LiftControlManifold
g308985

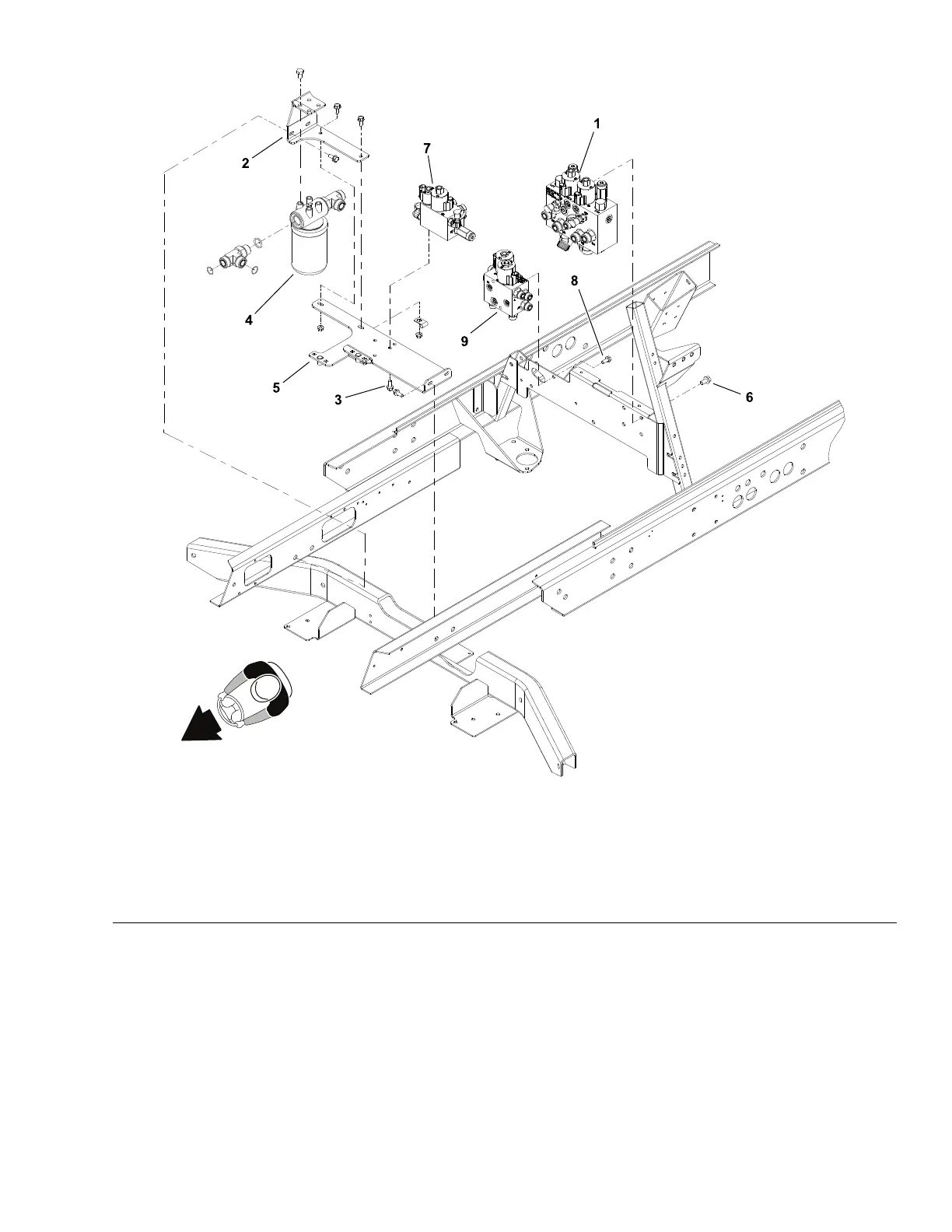

Figure142
GROUNDSMASTER4500-DSHOWN
1.Deckcontrolmanifold4.Hydraulicoillterassembly7.Liftcontrolmanifold
2.Filtermountbracket5.Valvemountbracket
8.Flangeheadscrew(2used)
3.Flangeheadscrew(2used)6.Flangeheadscrew(2used)9.Fandrivemanifold
Note:TheliftcontrolmanifoldsusedonGroundsmaster4500-Dand4700-D
machinesaredifferentbuttheymounttothemachineinthesamelocation.The
Groundsmaster4500-DcontrolmanifoldsareshowninFigure142.
Note:Theportsontheliftcontrolmanifoldaremarkedforeasyidentication
ofcomponents.Example:P1isthegearpumpconnectionport(seeAppendix
A(pageA–1)toidentifythefunctionofthehydrauliclinesandcartridgevalves
ateachport).
Groundsmaster
®
4500-D/4700-D
Page5–155
HydraulicSystem:ServiceandRepairs
19245SLRevA
