3-INTAKE SYSTEM COMPONENT 17
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1
KD125－U air filter element

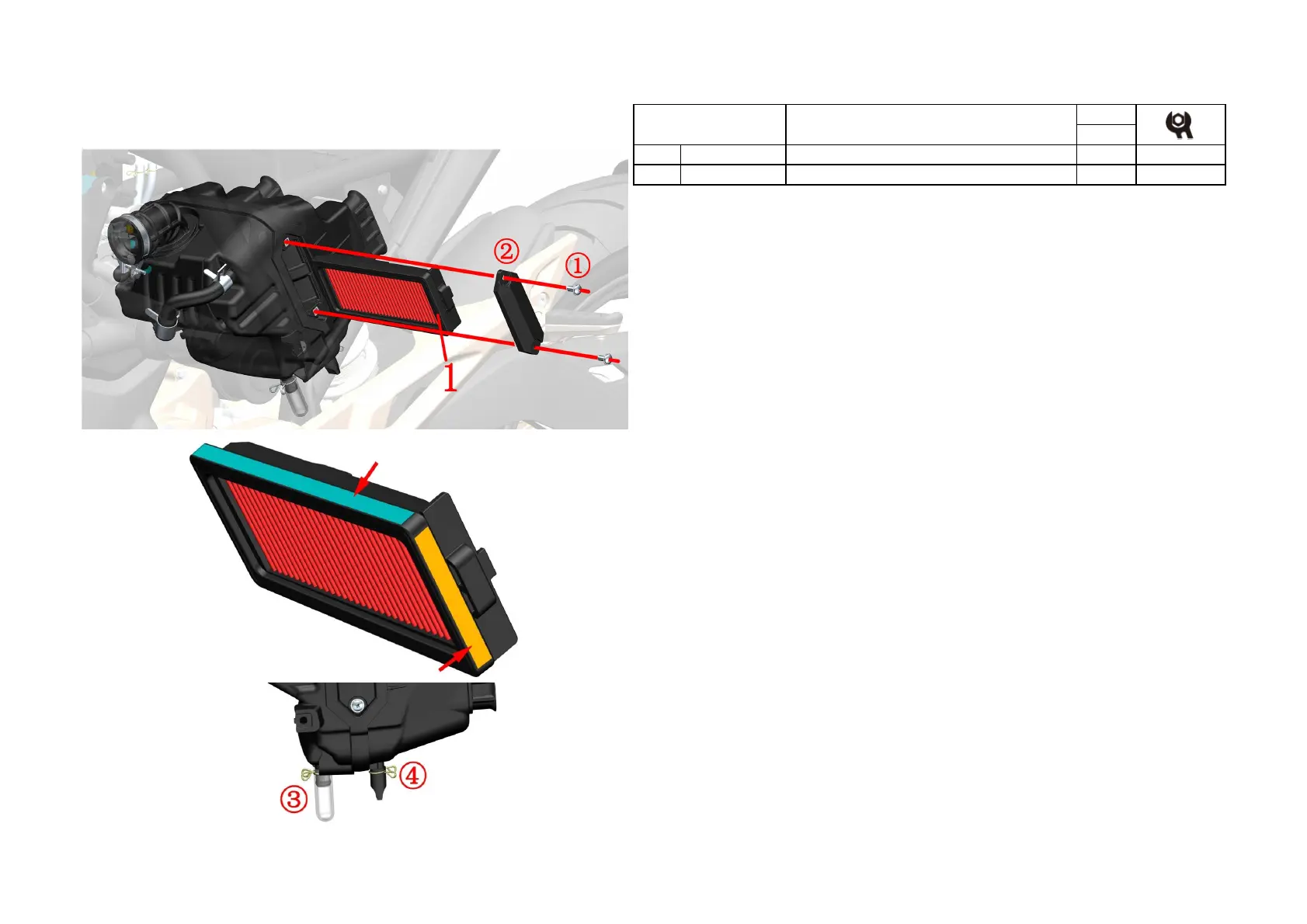

Fig.3 INDUCTION
SYSTEM COMPONENT
Replace air filter element
ROCEDURE:
●Filter element
If you need to maintain the filter element of the air filter, remove the seat cushion, the right side cover Take the
two standard parts ① out of air filter with the tool, dismantle the box cover ②Grasp the rubber strips on the
filter (both sides shown in yellow) and pull the filter element ⑴ out. Blow the dust off the filter core by blowing
dust gun in the filter element. If the filter paper is damaged, it should be replaced in time.If the blowback causes
the dust to be unable to clean up, the engine will be damaged or the induction resistance will become larger and
affect the driving experience.When assembling, apply a small amount of engine oil on the upper and lower sides
of the rubber strip (shown in cyan as shown in the figure) to reduce assembly resistance.
●Oil pipe and water pipe
Avoid water into the air filter when washing the motorcycle. Can pulled out the oil pipe③ and water pipe④ to
release if into small water.keep no water inside before staring the engine. Inspecte the oil pipe regularly if more
oil is accumulated should be released in time.
CAUTION:
●Regularly check whether the filter element of the carbon tank and air filter is not ventilated, otherwise it may
cause the oil supply to affect the driving experience.
●When blowing dust, pay attention to maintain a certain distance to avoid excessive damage to the filter
element.
●The filter element should be checked every 5000 kilometers or 15 months; it should be replaced every 10,000
kilometers or 30 months.
