8-FUEL TANK COMPONENT 59
CHK
ADJ
NO. PART NO.
1
－
Z2 dark gray fuel tank left decorative cover
1
2
－
Z2 dark gray fuel tank right decorative cover
1
3
1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 6
4
1250204-031093 GB845St4.2×12 (environmental color) 4
5
1170300-100000 SK150-Z front left turn signal 1
6
1220300-142000 SK150-Z fuel tank left decorative cover inner panel 1
7
1170300-101000 SK150-Z front right turn signal 1
8
1220300-144000 SK150-Z fuel tank right decorative cover inner panel 1

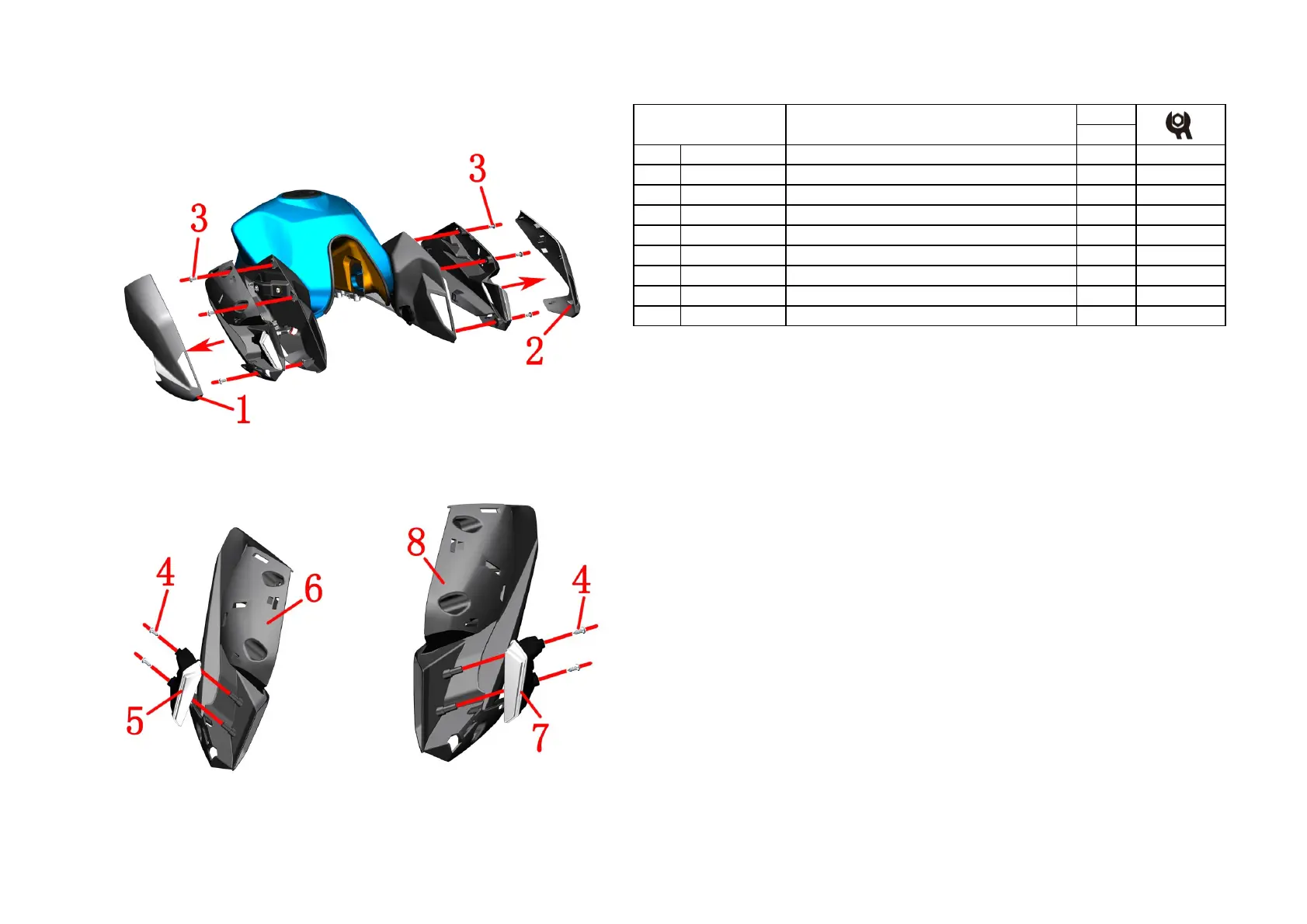

Fig.2 FUEL TANK
COMPONENT
Fuel tank cover component 1
PROCEDURE:
●Fuel tank decoration cover assembly
Pry the left decorative cover ⑴
and right decorative cover ⑵ to the direction of the arrow and take it out with
sharp objects such as a word batch. (The buckles here are all inverted buckles, please remove them carefully.
Do not use excessive force to damage the buckles.)
Use 4# inner hexagon to remove 6 bolts (3), and remove left inner plate ⑹ and right inner plate ⑻.
Remove the self-tapping nail ⑷ fixed on the left bottom plate ⑹ with a cross-shaped screw, and remove the
left turn signal ⑸. Use the same method to remove the right turn signal ⑺.
CAUTION:
●When removing the buckle, pay attention to the strength to prevent damage to the buckle.
●The parts should be protected during the disassembly process to prevent damage to the paint surface.
●When reinstalling, make sure that the self-tapping screws should be vertical to the mounting surface
before tightening, and the torque should not be too large.
