6-COOLING SYSTEM COMPONENT 34
CHK
ADJ
NO. PART NO.
1 1251100-067093 M6×10 top pin bolt (color zinc) 1 12±1.5N.m
2 1251513-001019 6.3×12×1.6 copper gasket 1
3 1221200-069000 KD150－U water tank water inlet 1
4 1221200-050000 KD150－U auxiliary water tank 1

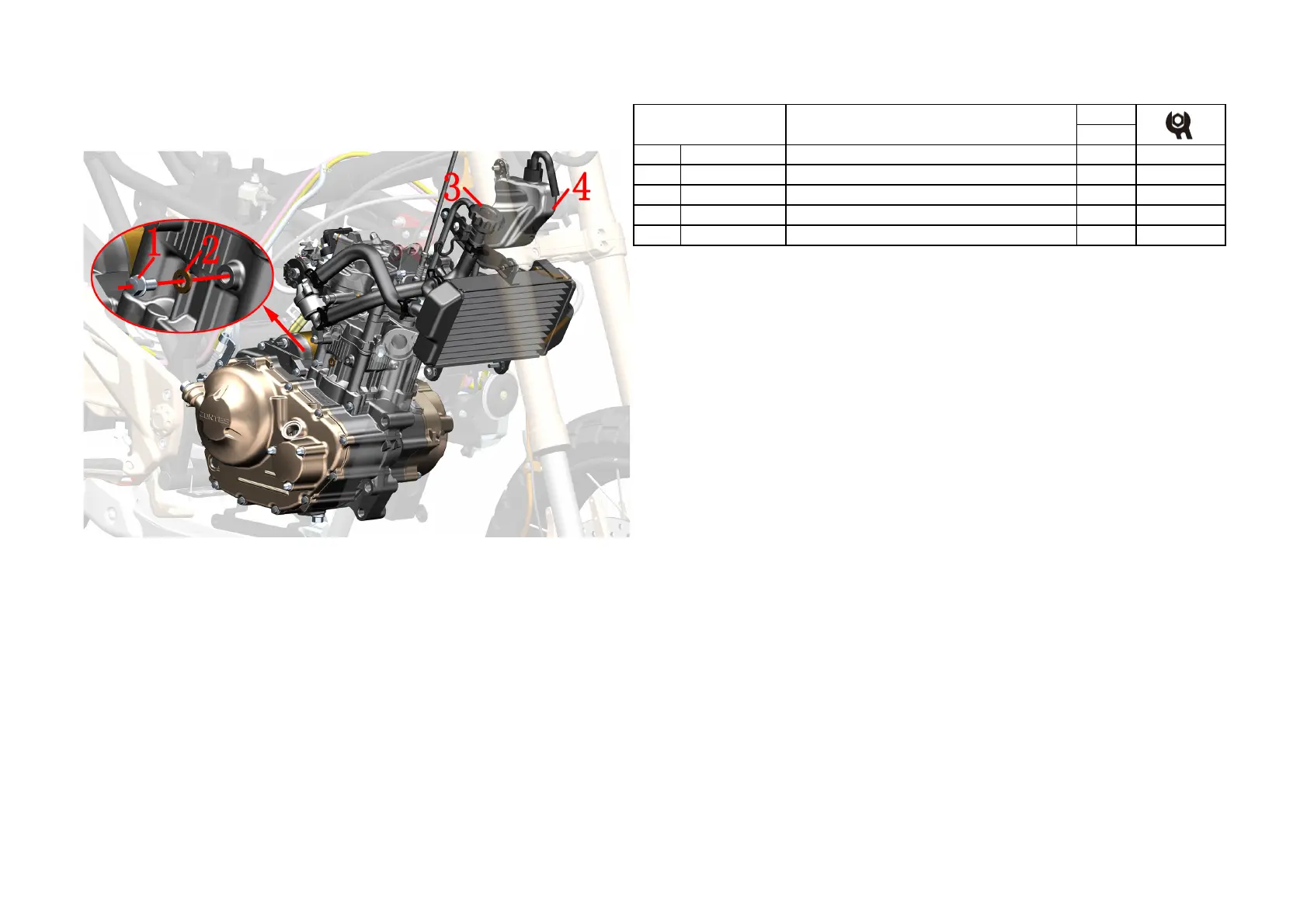

Fig.3 COOLING SYSTEM
COMPONENT
Change coolant
PROCEDURE:
●Drain the cooling liquid
Cover the right crankcase cover and cylinder block of the engine with a waterproof cloth to prevent the coolant
from dripping onto the cover and the engine. Wear waterproof gloves with both hands and use an 8# sleeve to
remove the drain bolt ⑴ and remove the copper pad ⑵; place the container at the drain port and then open the
cover of the water tank filling port ⑶
The coolant begins to drain into the container, and the body is turned to the
right tilt to drain the coolant. Wipe the remaining coolant on the surface of all parts with a clean cloth, and then
replace the drain bolts and copper pads. It is recommended to replace them with new bolts and copper pads.
●Add cooling liquid
Slowly pour new coolant into the filling port of the water tank filling port ⑶, and do not cover the cover after
filling. Start the bike at idle for a few minutes and observe the liquid level. If it drops, continue to add. Repeat
the operation until it is full before closing the cover. Unscrew the cover of the auxiliary water tank ⑷, add an
appropriate amount of coolant to it to keep the liquid level between "H" and "L".
CAUTION:
●Motorcycle should be well supported.
●Manipulation should start after the engine is completely cooled down.
●Cooling liquid is toxic. Avoid strictly eye or skin contact. For more details, see "Attention" of previous page.
