7-FRONT FORK COMPONENT 47
CHK
ADJ
NO. PART NO.
PART NAME QTY CAUTION
1
1251100-102000
Non-standard bolt M6×16
（
304 stainless steel
）
9
2
1274100-057095
Flanging bushing φ6.2×φ8.5×3.5
＋
φ14×1.5
9
3
1244100-052000
Buffer rubber of flanging bushing
（
φ8.5×φ14×1
）
9
4
4041201-152051
KD150
－
Z2 dark gray head cover left part
1
5
4041201-153051
KD150
－
Z2 dark gray head cover right part
1
6
4041201-224000 ZT155-Z2 windshield 1
7
1251300-063093
Plywood M6×11×15
（
color zinc
）
13
8
1170300-099000 SK150-Z headlights 1
9
1240300-066000 KD250-J head cover pad 1
PROCEDURE:
●Left and right head cover
Remove the 6 bolts ⑴
with a 4# inner hexagon, take out the bushing ⑵, cushion rubber ⑶, and remove the left
head cover ⑷ and right head cover ⑸.
●Windshield
Use 4# inner hexagon to remove 3 bolts (1), take out bushing (2), cushion rubber (3), and take off windshield
(5). (The rubber pad ⑼ on the upper part of the headlight rear shell needs to be cut into two parts and pasted on
the upper part of the headlight rear shell respectively.)
CAUTION:
●The head unit should be supported during the disassembly process and protective measures should be taken
toprevent scratching the lamp cover or paint surface.

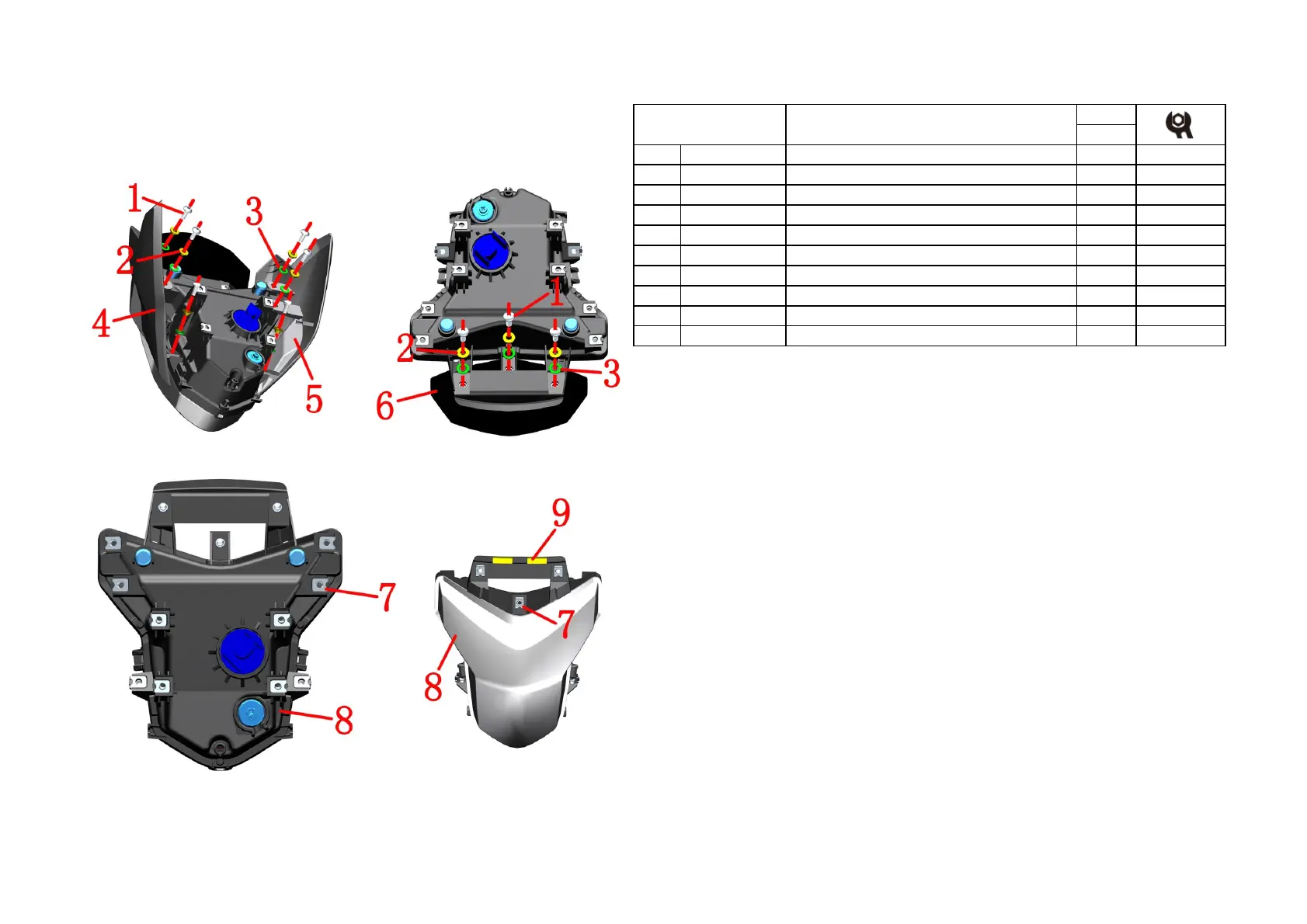

Fig.11 FRONT FORK
COMPONENT
Head and headlights component 2
