Zontes ZT125-Z2 User Manual

11-REAR COVER COMPONENT 67
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
Non-standard bolt M6×16
（
304 stainless steel
）
1
2 1250105-142093
GB5789M8×20
（
color zinc
）
5
3 1250205-002091 GB70.1 M8×30(zinc) 4
4 4111200-012051 KD150-Z2 rear armrest (dark gray matte) 1
5 4111100-002051 SK150-Z rack (dark gray matte) 1

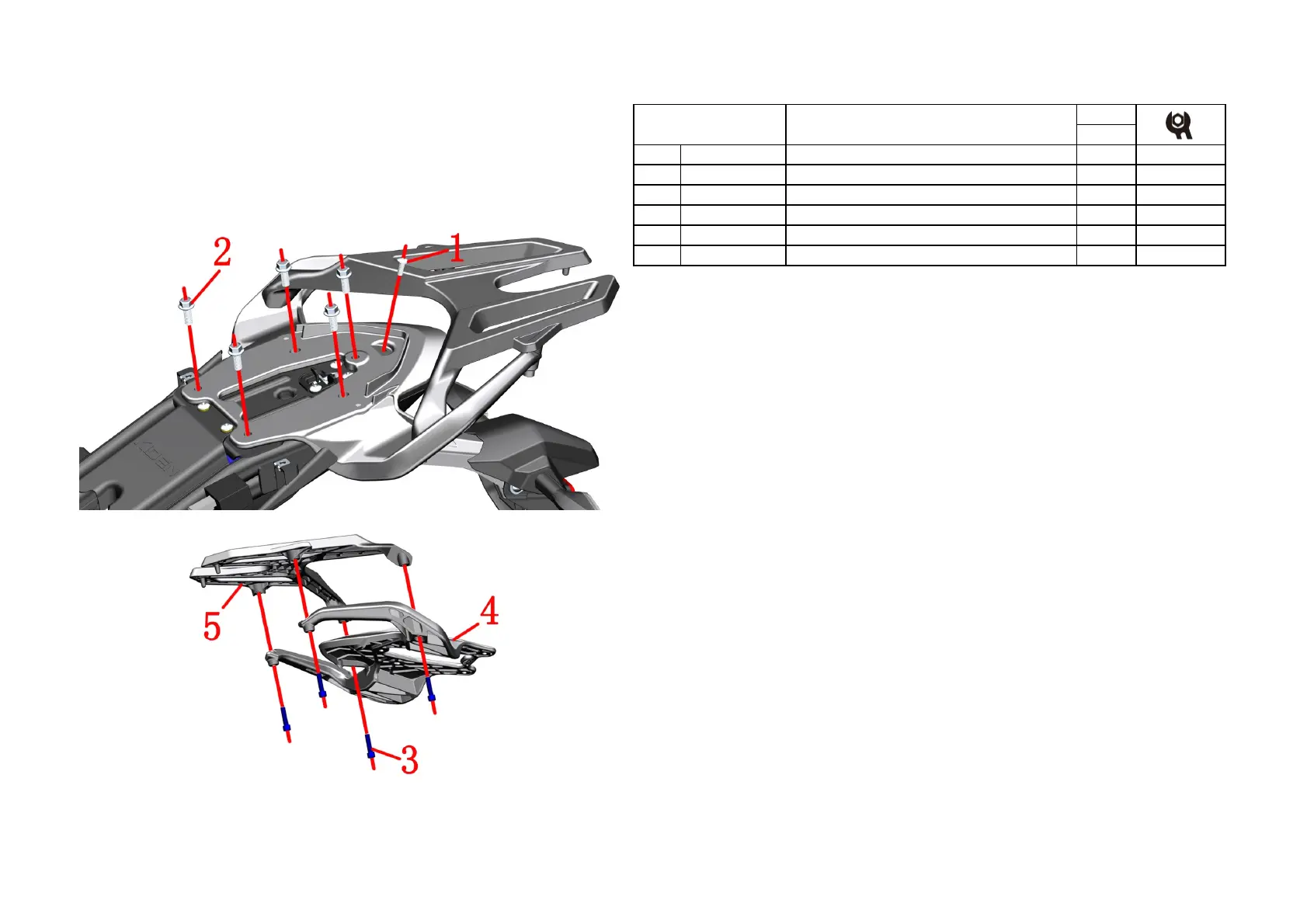

Fig.2 REAR COVER
COMPONENT
Rear armrests and shelf components
PROCEDURE:
●Rear armrests and shelf components
Remove one bolt ⑴ with 4# inner hexagon.
Use a 12# sleeve to remove 5 bolts (2).
Remove the rear armrest ⑷ and the shelf ⑸ from the motorcycle, and remove the 4 bolts ⑶ with 6# inner
hexagon.
CAUTION:
●The cushion, side cover assembly,rear cover components need to be removed in advance.
●The parts should be protected during the disassembly process.
