8-FUEL TANK COMPONENT 61
CHK
ADJ
NO. PART NO.
PART NAME QTY CAUTION
1 1251300-063093
Plywood M6×11×15
（
color zinc
）
2
2 4041201-155051
KD150-Z2 dark gray front right cover (high light) 1
3 4041201-154051
KD150-Z2 dark gray front left side cover (high light) 1
4 1224100-008000
ZT250
－
S snap joint
4
5
1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 4
6 1244100-052000
Buffer rubber of flanging bushing
（
φ8.5×φ14×1
）
4
7
1274100-057095
Flanging bushing φ6.2×φ8.5×3.5
＋
φ14×1.5
4
8
1220300-150000 SK150-Z fuel tank right bottom plate 1
9 1220300-149000
SK150-Z fuel tank left bottom plate 1
PROCEDURE:
●Side cover front assembly
Take the
front part of the left side cover ⑶ and the front part of the right side cover ⑵ out in the direction of
the arrow, and remove the 2 splints ⑴ and 4 buckles ⑷.
Remove the 4 bolts ⑸ fixing the left bottom plate ⑼ and the right bottom plate ⑻ with a 4# inner hexagon,
and remove the bushing ⑺ and cushion rubber ⑹.
CAUTION:
●The parts should be protected during the disassembly process to prevent damage to the paint surface.
●When removing the buckle, pay attention to the strength to prevent damage to the buckle.

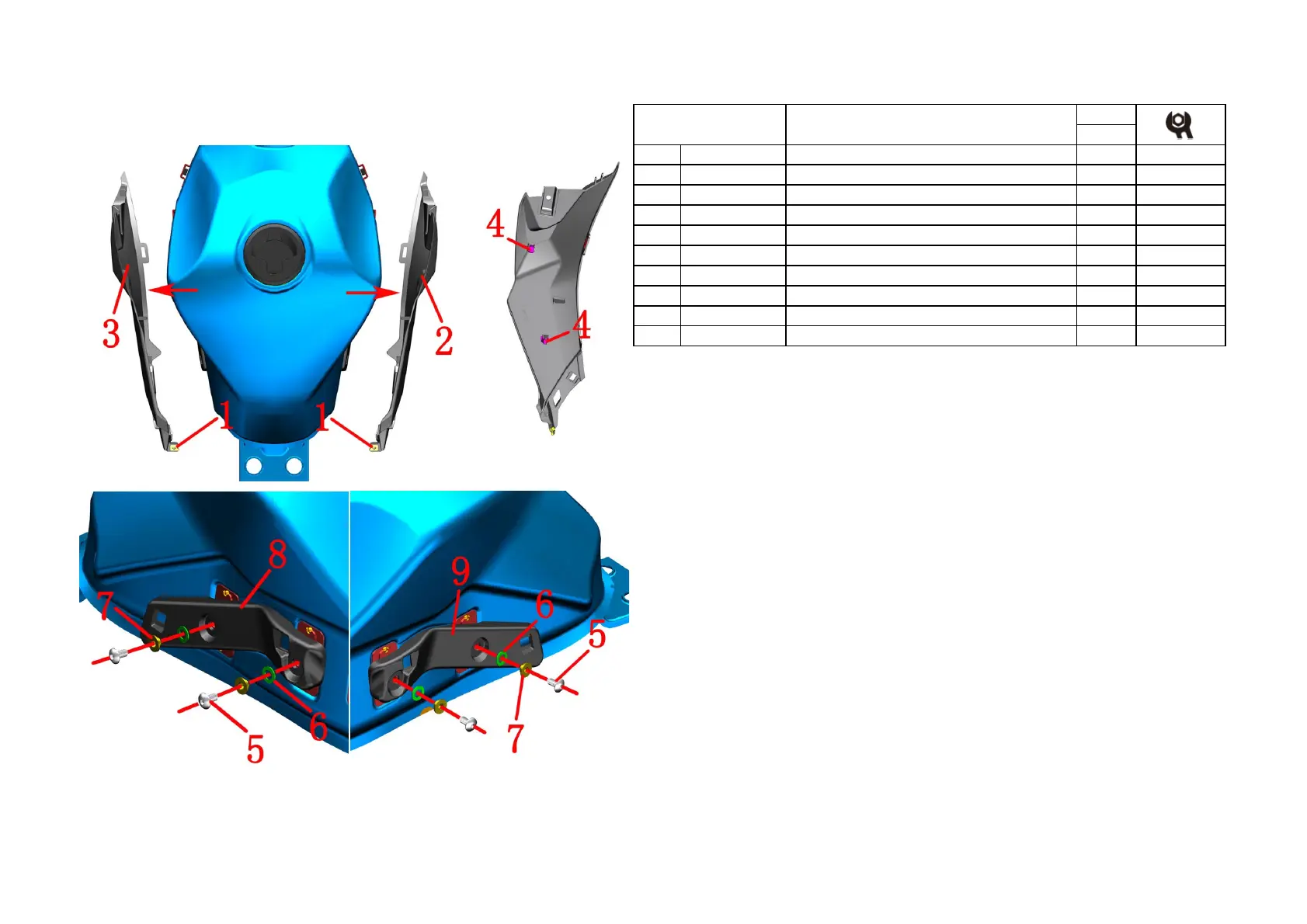

Fig.4 FUEL TANK
COMPONENT
Fuel tank cover component 3
