Zontes ZT125-Z2 User Manual

11-REAR COVER COMPONENT 71
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
Non-standard bolt M6×16
（
304 stainless steel
）
3
2 1274100-057095
Flanging bushing φ6.2×φ8.5×3.5
＋
φ14×1.5
3
3 1244100-052000
Buffer rubber of flanging bushing
（
φ8.5×φ14×1
）
3
4
1221200-109000 KD150
－
Z2 electric device box upper cover 1
5
MSE6.0 controller 1 ECU
6 1184100-010000
ZT250
－
S starting relay
1
7 1184200-099000
ZT310 colloid battery (6-FM-10/10Ah) 1
8 1244200-111000
ZT310 gel battery strap 1
9 1184100-017000
ZT250
－
S fuel-injection relay
1
PROCEDURE:
●The upper cover of the electrical device box
Use
4# inner hexagon to remove 3 bolts (1), take off the flange bushing (2), cushion rubber (3), and take out
the upper cover of the electrical device box (4).
●Gel battery assembly
First take out the end of the battery strap ⑻ close to the positive electrode, then pull up the gel battery ⑺ and
fix it, pull off the black protective cap to remove the negative electrode; then pull off the red protective cap to
remove the positive electrode; remove the battery; finally tie the battery Take ⑻ off. When reinstalling, you
should first buckle the buckle at the negative end of the battery strap ⑻, and then install the battery; when
installing the battery, you should connect the positive pole first, then the negative pole; finally, buckle the
battery strap ⑻.
CAUTION:
●Protect protective measures to prevent scratching the appearance of parts.
●When reassembling, check whether there is any pressure on the wire to prevent short circuit when tightening
the bolt.

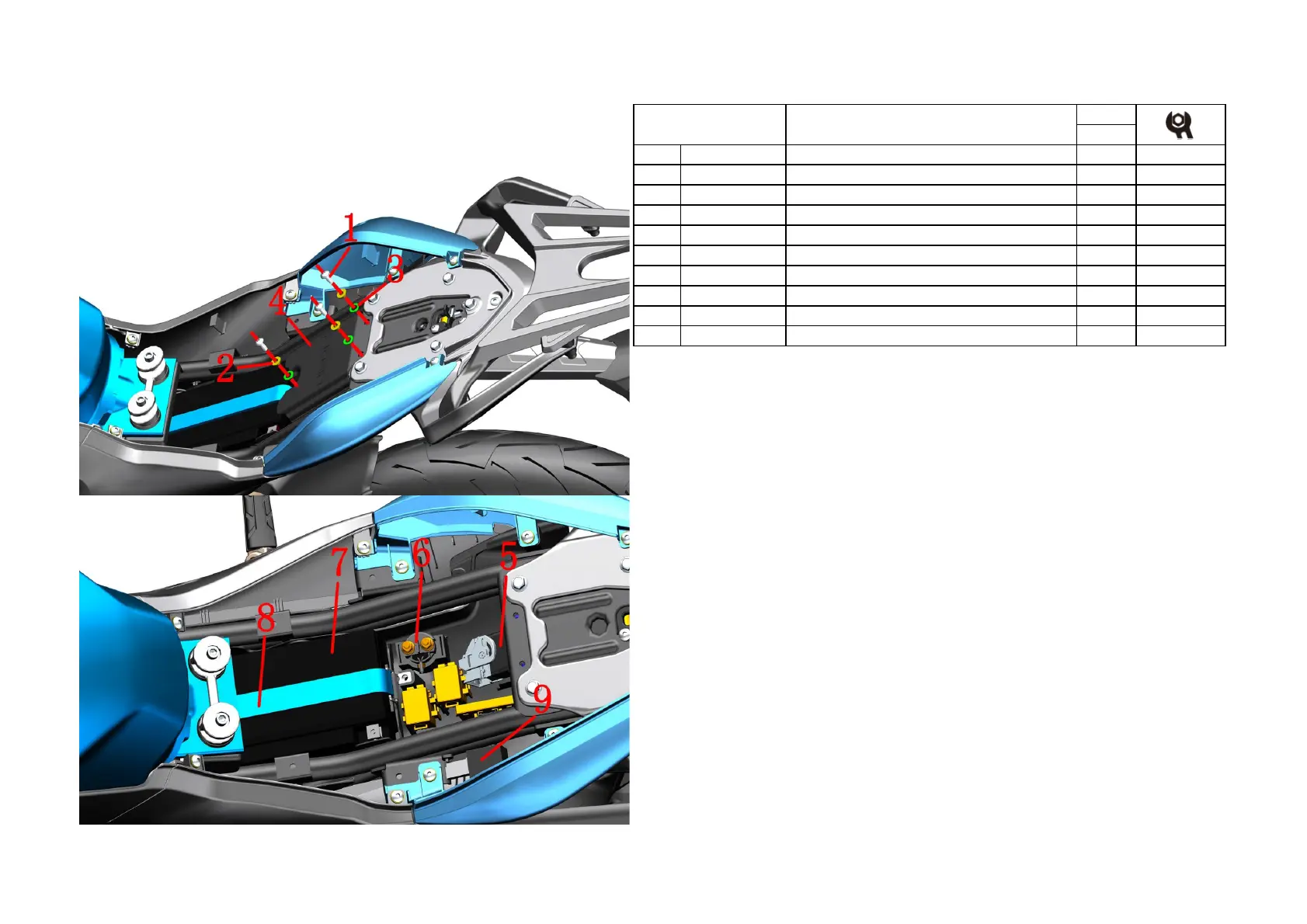

Fig.6 REAR COVER
COMPONENT
Battery pack
