Zontes ZT125-Z2 User Manual

11-REAR COVER COMPONENT 68
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
Non-standard bolt M6×16
（
304 stainless steel
）
2
2 1274100-057095
Flanging bushing φ6.2×φ8.5×3.5
＋
φ14×1.5
2
3 1244100-052000
Buffer rubber of flanging bushing
（
φ8.5×φ14×1
）
2
4 1251300-063093
Plywood M6×11×15
（
color zinc
）
1
5 1171200-062000
KD150
－
Z2 tail light
1
PROCEDURE:
●Taillight assembly
Use 4# inner hexagon to remove 2 bolts ⑴
, take off the bushing ⑵, cushion rubber ⑶.
Locate and unplug the tail light connector at the position indicated by the arrow, remove the tail light ⑸ in the
direction of the arrow, and remove the splint ⑷ on the tail light.
CAUTION:
●The side cover, seat cushion, rear armrest and other components need to be removed in advance.
●The material should be protected during discomponent to prevent scratching the lamp.

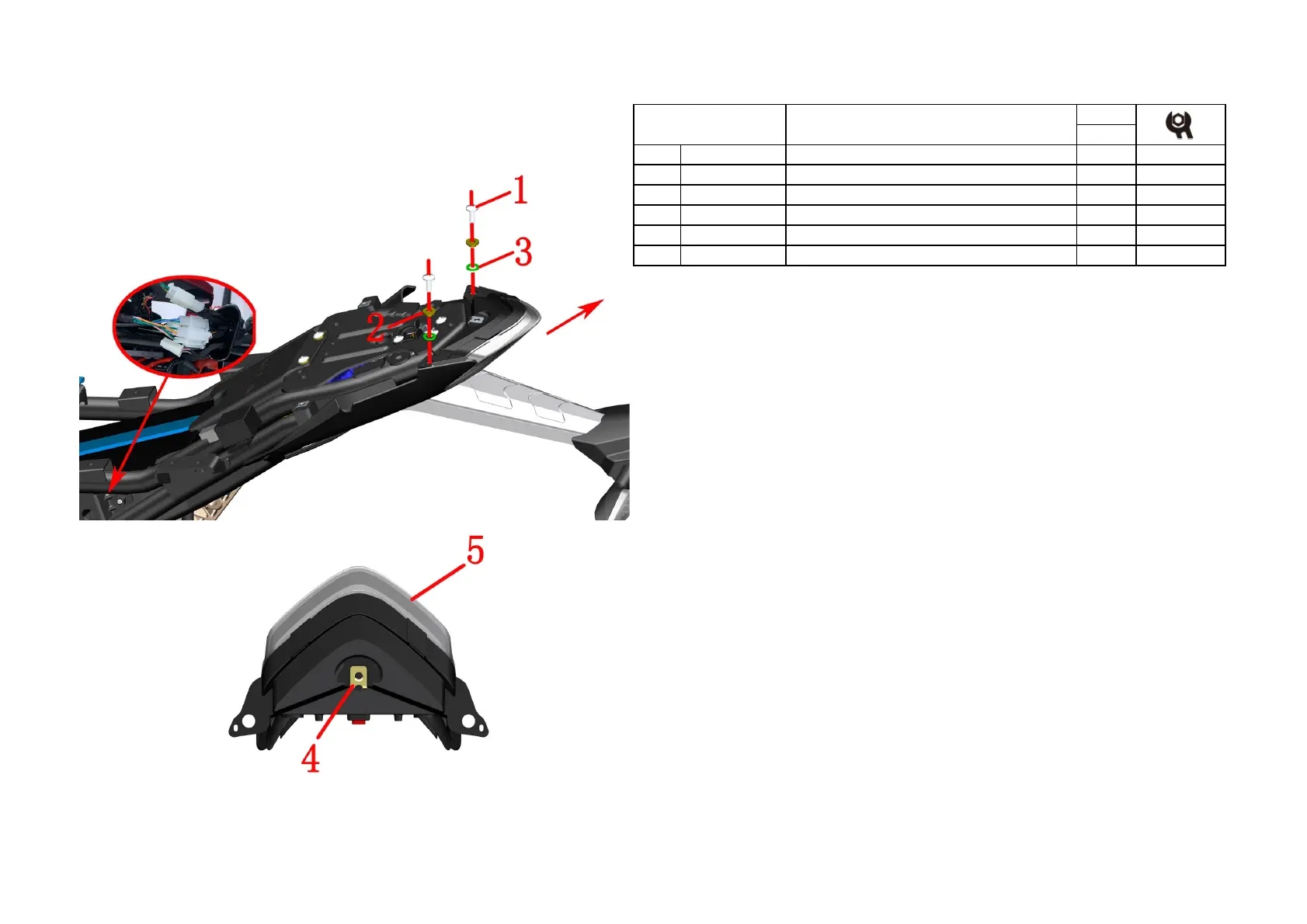

Fig.3 REAR COVER
COMPONENT
Taillight component
