Zontes ZT125-Z2 User Manual

12-CUSHION COMPONENT 73
CHK
ADJ
NO. PART NO. PART NAME QTY REMARKS
1
4120100-001000 150-Z2 cushion 1
2
1244100-024000
ZT250
－
S cushion front rubber
2
3 1244100-022000
ZT250
－
S cushion rubber
2
4
1244100-025000
ZT250
－
S round cushion rubber
6

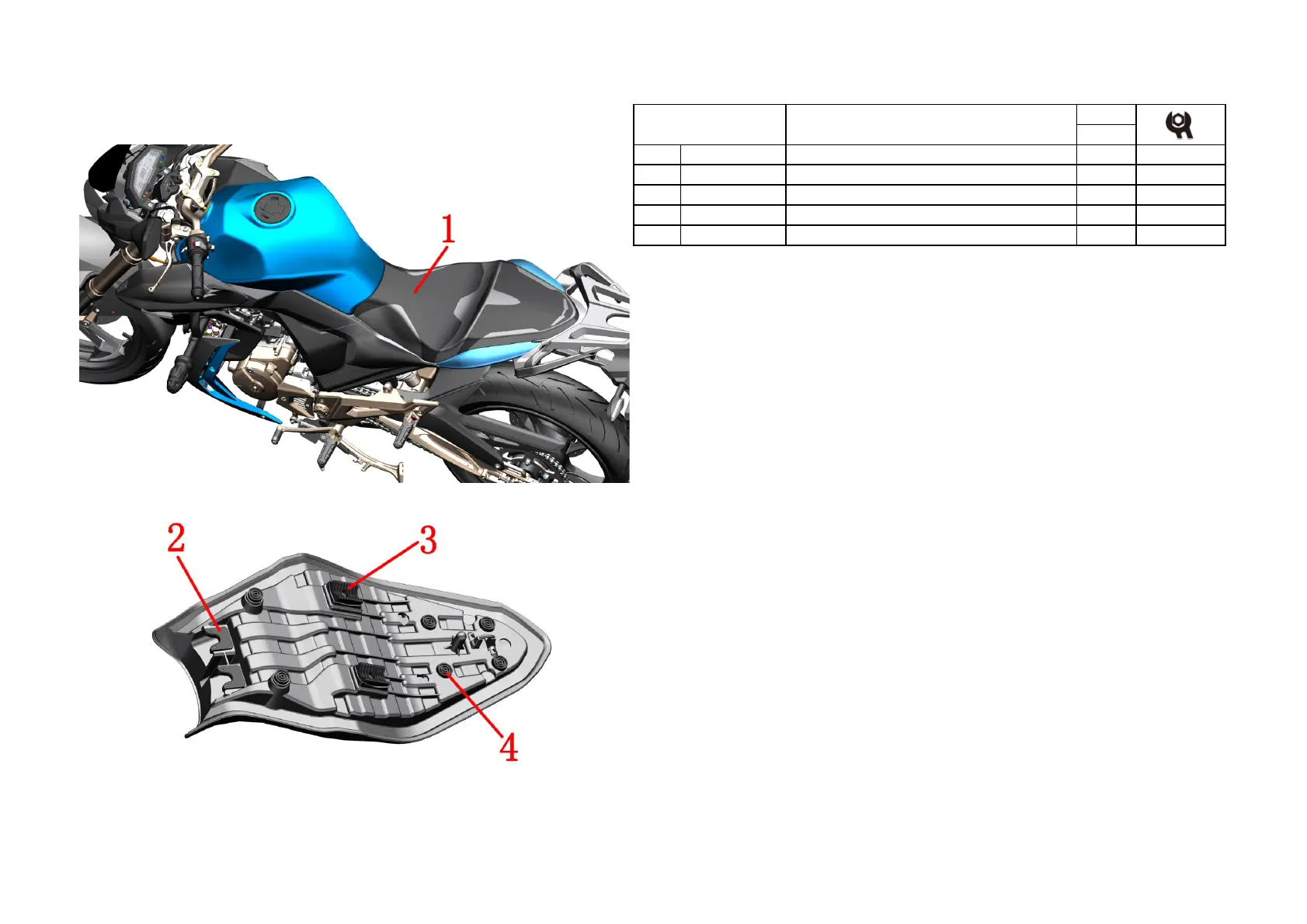

Fig.1 CUSHION
COMPONENT
Cushion component
PROCEDURE:
●Remove the cushion
Insert the key, turn it counterclockwise, and take off the cushion when you hear a "click".
●Assembly cushion
When assembling the cushion, check whether all the cushion rubbers are complete. Insert the front part of the
cushion first. After the assembly is in place, shoot the rear part of the cushion firmly. When you hear the "click"
sound, it indicates that the cushion lock has been assembled.
●Cushion rubber purchased separately
The corresponding installation position is shown in the lower left figure.
CAUTION:
●The motorcycle should be fixed before operation.
●Cushion can cause accidents if it is not installed properly.

