7-FRONT FORK COMPONENT 46
CHK
ADJ
NO. PART NO.
1
1251100-101000
Non-standard bolt M6×12
（
）
2
1224100-037000 grade 0 flame retardant tie (black 3.6×295) 1
Fig.10 FRONT FORK
COMPONENT
PROCEDURE:

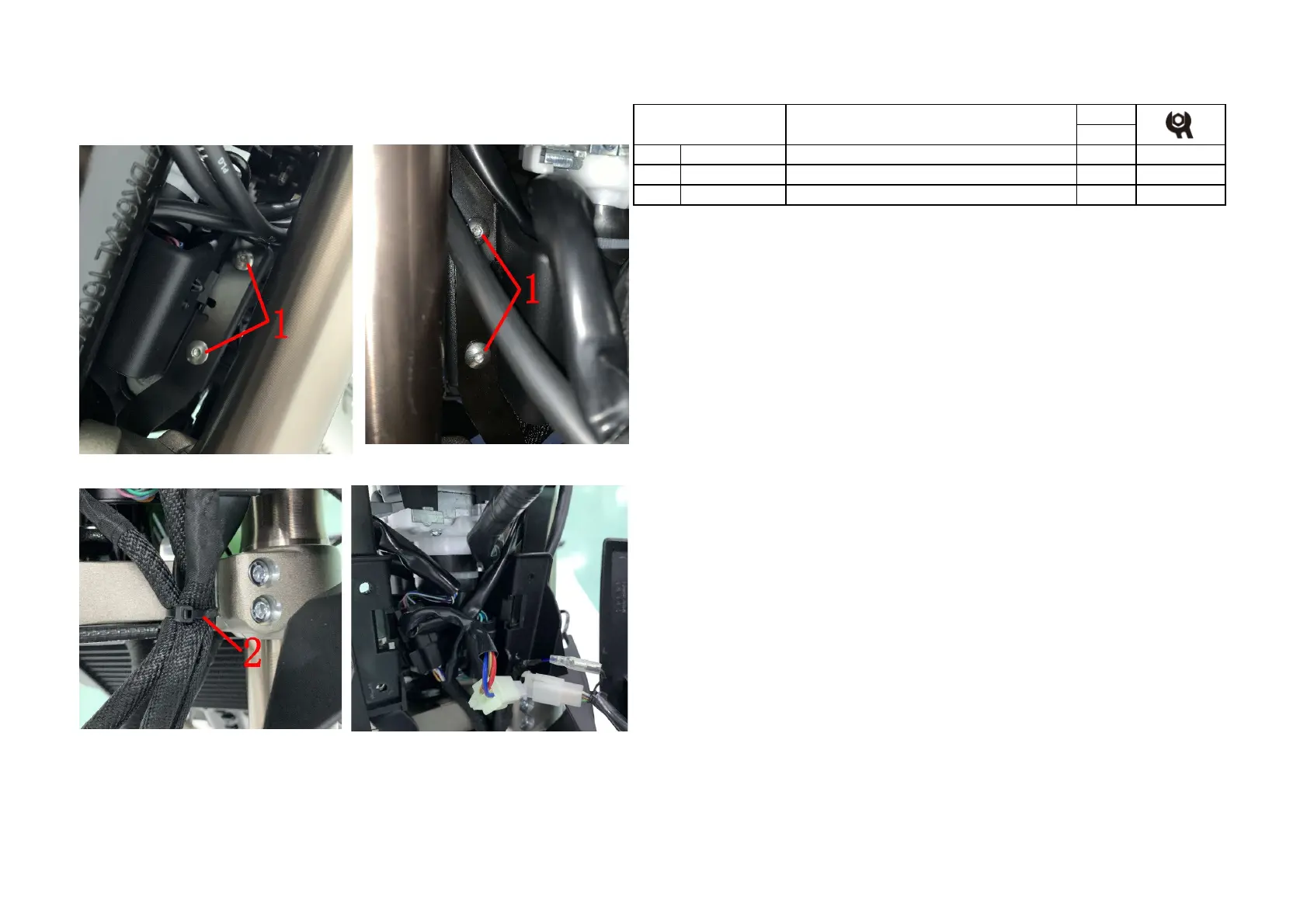

●Remove the headlight
Turn the stearing to the far left, and remove the 2 bolts (1) in Figure A.
Turn the stearing to the far right, and remove the 2 bolts (1) in Figure
B.
Use scissors to cut off the tie ⑵ in Figure C.
Unplug all the plugs in Figure D and remove the headlights.
CAUTION:
●Pay attention to the force when removing the cable and unplugging the plug and the cable to avoid damage.
●The head unit should be supported during the disassembly process and protective measures should be taken
toprevent scratching the lamp cover or paint surface.
Head and headlights component 1
