Zontes ZT125-Z2 User Manual

5-PEDAL COMPONENT 30
CHK
ADJ
NO. PART NO.
PART NAME QTY CAUTION
1
ZT310
－
X L, front pedal component
1
2 1264100-003000 ZT250－S front left foot pedal torsional spring 1
3 1274100-012000 ZT250－S Pedal pin 1
4 1274100-035000 ZT250－S Foot pedestal 1
5 1264100-006000 ZT250－S Pedal circlip 1
6 1250303-010093 GB6177.1M6(color zinc ) 2
7 1274200-160000 ZT310－T shift lever step rocker 1
8 1274100-043000 Miniature rod end ball bearing SALJK6C 1
9 1250301-018093 GB6170 M6－LH (army green) 1
10 1274200-003000
ZT310
－
R adjusting screw of gear shift lever φ10×130
1
11 1250301-020093 GB6170M6 (environmental color) 1
12 1274100-042000 Miniature rod end ball bearing SAJK6C 1
13 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color zinc) 2
14 1274100-039000 ZT250－S shift lever spline rocker arm 1
15 1244200-024000 ZT310－X footrest gum cover 1
16 1274200-051000 ZT310－X footrest gum cover fixed plate 1
17 1250205-038000 GB70.2M5×12(stainless steel) 1
18 1250501-010000 GB93φ6 spring pad 1
19 1251100-167000 Non－standard ball head boltsM6×8 1
20
ZT310
－
X L, front pedal
1
PROCEDURE:
●L, Foot pedal component
Disassemble circlip⑸. Take off foot pedal pin axle⑶. Take off L, foot pedal⑴, foot pedal spring⑵ from foot
pedal holder⑷.
●Gear shift rod assembly
Disassemble on both sides nut⑹ wit a 10# sleeve and bolt⒀ with a 8# open spanner.Disassemble gear shift rod
rocker arm⑺, spline rocker arm⒁. Loosen nut⑼&⑾ with a 10# open spanner. Take off adjusting rod⑽.
Separate bearing ⑻&⑿.
●Foot pedal with rubber for after sales service
Hold the L, front pedal tightly. Disassemble bolt⒆ with a10# ring spanner.Then take off bolt⒅ with 3# inner
hexagon socket.Take off spring washer ⒄,Take off rubber⒂, positioning plate⒃.
CAUTION:
●Applying lubrification to the surface of cylinder of foot pedal holder can reduce resistance on gear shiftrod.
●Pay attention to distinguishing the nuts at both ends of the knuckle bearing and the adjustment screw.
●Ensure correct installation when exchanging after sales components of the pedal.

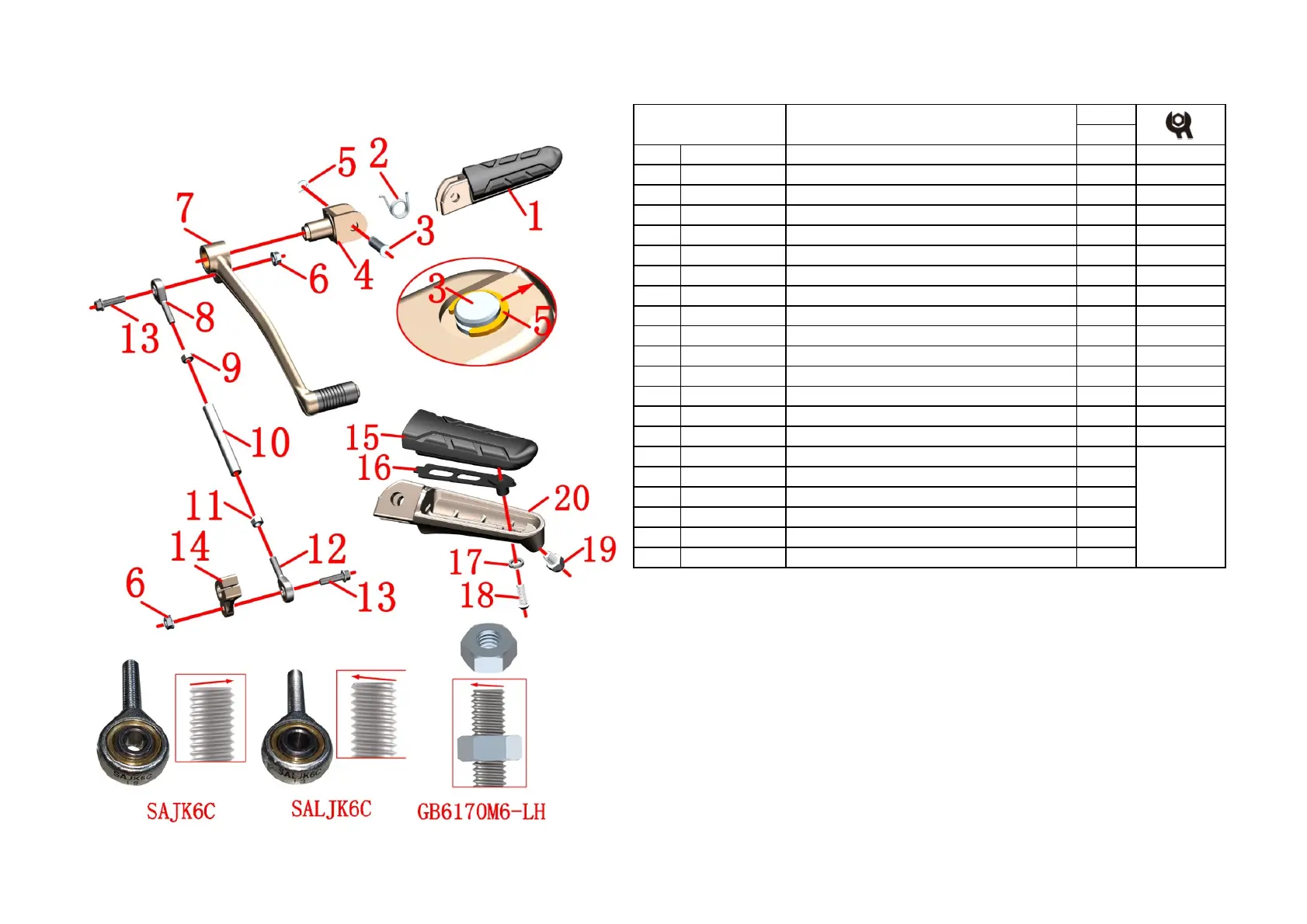

Fig.6 FOOT PEDAL
COMPONENT
Left footrest component 2
After sales
